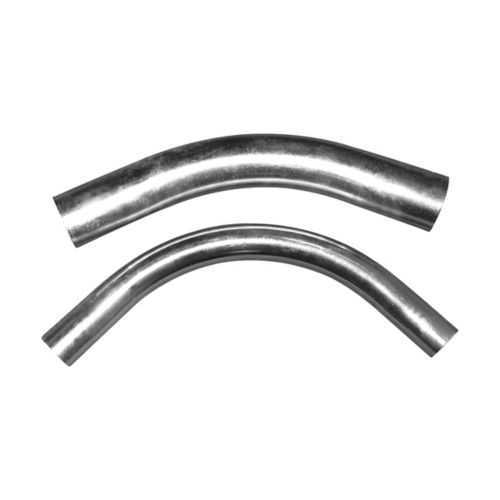

Eaton EL25045 EMT Elbow Steel 45 Degree - NEC/CEC Certified
Part Number: EL25045
Quick Summary
Eaton EL25045 EMT elbow provides a robust steel conduit bend for reliable EMT runs in industrial and commercial applications. Projects often stall when fittings don’t align or fail under load; this elbow delivers precise 45° geometry and secure connections to reduce downtime and rework. The product meets NEC/CEC standards and supports ordinary/non-hazardous locations, with UL Canada certification options documented by Eaton for added compliance confidence. Designed for quick installation, the EL25045 supports efficient pulling, accurate alignment, and compatibility with standard EMT fittings, helping teams stay on schedule while maintaining electrical safety and long-term durability.
Product Information
Extended Description
EL25045 Eaton: Eaton Crouse-Hinds series EMT elbow, Steel, 45°, 2-1/2"
Product Name
Eaton Crouse-Hinds series EMT elbow
Catalog Number
EL25045
UPC
662277041430
Product Length/Depth
17 in
Product Height
3 in
Product Width
3 in
Product Weight
3.9 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
EMT
Shape
45° angle
Trade size
2-1/2"
Material
Steel
Crouse-Hinds series Elbows and Pulling Elbows - EMT catalog page
Elbows and Pulling Elbows - EMT Canadian certification (Elbows)
Elbows and Pulling Elbows - EMT Canadian certification (Elbows)
Eaton Specification Sheet - EL25045
Feature: Steel construction provides high strength and resistance to impact, reducing maintenance and replacement costs. Business Impact: Longer service life translates to lower lifecycle costs and fewer field service calls. Application: Indoor industrial and commercial conduit runs where rugged reliability matters. Feature: 45° angle delivers precise directional change with predictable pull paths. Business Impact: Improves install accuracy, reduces bending-induced stress, and speeds up ducting layouts. Application: Standard 2-1/2 inch EMT installations in tight spaces. Feature: 2-1/2 inch trade size with 17 inch overall length and 3 inch width/height for versatile mounting. Business Impact: Enables compatible fit with common EMT systems and aids in pre-install planning. Application: Medium-diameter conduit networks in facilities. Feature: NEC/CEC conformity and Ordinary/Non-Hazardous location designation. Business Impact: Ensures regulatory alignment and reduces risk of non-compliance. Application: Compliance-driven projects in non-hazardous environments. Feature: Compatibility with Crouse-Hinds/EMT accessories and standard EMT couplings. Business Impact: Simplifies procurement and field assembly, lowering project complexity. Application: System-wide EMT conduit schemes. Feature: Certification options and UL Canada references. Business Impact: Broadens market acceptance and supports cross-border deployments. Application: International installations and audit-ready installations.
Get a Quick Quote for a Eaton EL25045
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EL25045?
Enquire Now
FAQs
Begin by selecting compatible EMT conduit and connectors, ensuring the 2-1/2 inch trade size matches. Fit the elbow to the conduit with approved set screws or couplings, align the 45° bend, and secure with standard fittings. Verify tightness and clean any burrs before energizing the circuit. This approach minimizes pull resistance and ensures a smooth, code-compliant bend in non-hazardous locations.
Yes. The EL25045 is designed for NEC/CEC compliance and is suitable for Ordinary/Non-Hazardous Locations. It is intended to integrate with standard EMT conduit systems and supports downstream electrical installation standards, helping you maintain regulatory alignment across projects and audits.
Key specs include a 45° angle, 2-1/2 inch trade size, steel construction, 17 inches in length, and dimensions of 3 inches in height and width with an approximate weight of 3.9 pounds. The part is rated for EMT conduit and aligns with Crouse-Hinds series fittings to ensure reliable performance in typical indoor installations.
Yes, the product is specified for Ordinary/Non-Hazardous Locations under NEC/CEC standards. For more specialized environments (hazardous locations), verify project requirements and consider alternative fittings designed for those conditions to maintain safety and compliance.
The EL25045 carries NEC/CEC compliance and is documented for ordinary locations. Additional certification references are available through Eaton’s technical sheets and UL Canada certification resources, as shown in the product’s downloads, supporting cross-border manufacturing and installation requirements.
