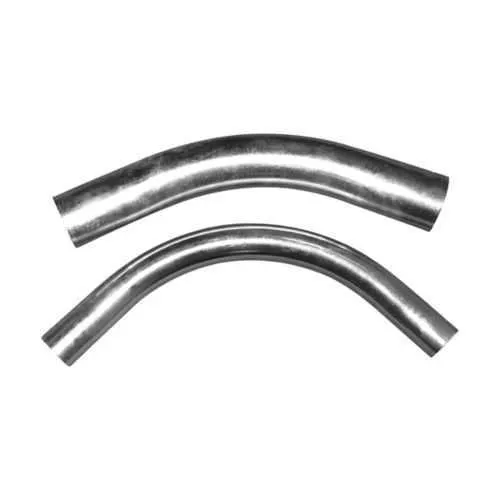

Eaton EL30090 EMT Elbow - 3" Steel NEC/CEC
Part Number: EL30090
Quick Summary
Eaton EL30090 EMT elbow is a durable steel conduit fitting designed for EMT systems in industrial and commercial installations today. Installers often struggle with achieving consistent 90-degree bends and maintaining code-compliant terminations in tight spaces. This elbow carries NEC/CEC compliance and is rated for Ordinary/Non-Hazardous Locations, with Canadian certification documentation available. Its compatibility with the Crouse-Hinds EMT family ensures fast, reliable installations, reducing rework and maintenance while supporting 3-inch trade-size projects.
Product Information
Extended Description
EL30090 Eaton: Eaton Crouse-Hinds series EMT elbow, Steel, 90°, 3"
Product Name
Eaton Crouse-Hinds series EMT elbow
Catalog Number
EL30090
UPC
662277041348
Product Weight
0.08 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
EMT
Shape
90° angle
Trade size
3"
Material
Steel
Crouse-Hinds series Elbows and Pulling Elbows - EMT catalog page
Elbows and Pulling Elbows - EMT Canadian certification (Elbows)
Elbows and Pulling Elbows - EMT Canadian certification (Elbows)
Eaton Specification Sheet - EL30090
Feature: Steel construction delivers robust durability and improved corrosion resistance for EMT elbows in non-hazardous environments. Business Impact: Reduces replacement costs and downtime in busy facilities. Application: Ideal for control panels and machine frames where long-term reliability matters. Feature: 90-degree bend with a 3 inch trade size provides precise routing for tight CAD-drawn layouts. Business Impact: Improves wiring density and simplifies panel layout, speeding up installation. Application: Suitable for compact industrial cabinets and wiring troughs. Feature: Compatibility with Eaton Crouse-Hinds EMT fittings streamlines stocking and procurement. Business Impact: Lowers inventory complexity and procurement cycle times. Application: Widely used across plant wide EMT conduit networks. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating provide regulatory assurance. Business Impact: Reduces risk of non-compliance penalties and rework during audits. Application: Fits standard industrial code requirements. Feature: Lightweight design at approximately 0.08 lb enhances handling during installation. Business Impact: Improves installer efficiency and reduces fatigue on repetitive installations. Application: Ideal for multi-point conduit runs and overhead installations.
Get a Quick Quote for a Eaton EL30090
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EL30090?
Enquire Now
FAQs
To install EL30090, align the elbow with the EMT run, engage the conduit ends with compatible connectors, and tighten securely to the manufacturer’s specified torque. Ensure the 90-degree bend maintains clearance for wiring and does not kink the conductors. Verify that the installation is in Ordinary/Non-Hazardous locations and complies with NEC/CEC requirements. Use appropriate gaskets or seals if specified, and document the fitment for inspections.
Key specs include a 3-inch trade size, steel construction, EMT conduit type, and a 90-degree bend. The product is rated for Ordinary/Non-Hazardous Locations with NEC/CEC compliance. UPC is 662277041348, catalog number EL30090, and weight approximately 0.08 lb. This combination supports durable, code-compliant installations in standard industrial environments.
Yes. The EL30090 line is supported by Canadian certification documentation and NEC/CEC standards compliance, aligning with common national and regional codes. This makes it suitable for multi-site projects in North America where both NEC/CEC compliance and Canadian approvals are required, reducing regulatory risk during audits and inspections.
EL30090 excels in steel EMT conduit runs within industrial facilities and commercial buildings. Its 3-inch trade size and 90-degree bend are ideal for tight interior spaces, machine frames, control panels, and racks where reliable, fast-install EMT fittings are needed. It integrates smoothly with the Eaton Crouse-Hinds EMT family, enabling streamlined sourcing across projects.
The EL30090 reduces rework and maintenance by providing a robust, corrosion-resistant steel elbow with a precise 90-degree bend. Compatibility with existing EMT systems minimizes installation time, lowers labor costs, and improves long-term reliability for conduit networks, delivering a favorable return on investment through fewer replacements and faster commissioning.
