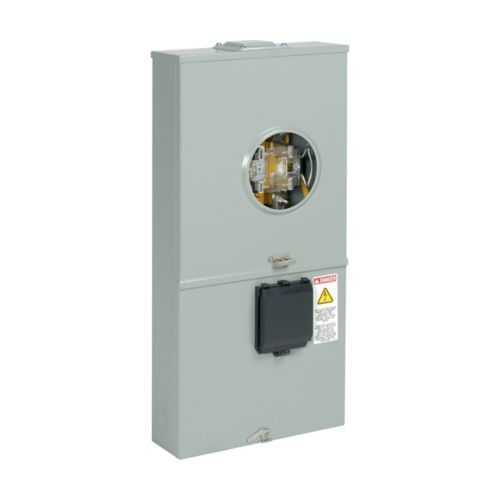

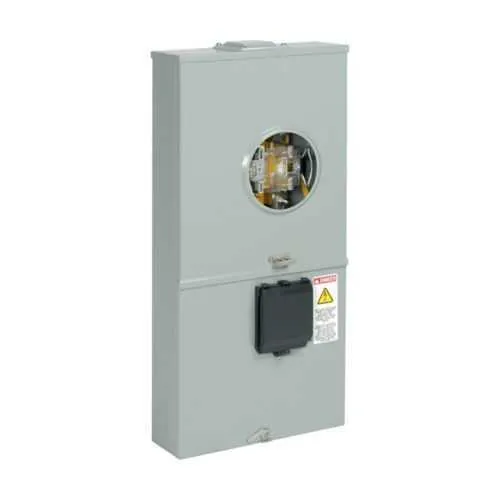

Eaton ELCB32C24A5GR1N Meter Breakers - UL Listed
Part Number: ELCB32C24A5GR1N
Quick Summary
Eaton meter breakers protect metering circuits in commercial and industrial power systems. This unit helps address common challenges such as installation delays, ringless jaw compatibility, and space constraints in meter rooms. UL-listed and built with galvanized steel and a durable ANSI 61 gray finish, it combines robust protection with reliable performance. By embracing a high-capacity, easy-to-install design, it supports safer, faster metering installations and lower total cost of ownership for facilities and service entrants.
Product Information
Extended Description
ELCB32C24A5GR1N Eaton: Eaton B-Line series meter breakers, 320 A, Lever, 3/8”-16 stud, 2/0 AWG-300 KCMIL, 4 jaws, 1 Position, Ringless, 3R, Z3614, Galvanized steel, Surface mount, Number of wires 1Ø/3W
Product Name
Eaton B-Line series meter breakers
Catalog Number
ELCB32C24A5GR1N
UPC
782051385021
Product Length/Depth
7.63 in
Product Height
30.13 in
Product Width
25.5 in
Product Weight
61.389 lb
Certifications
UL
Amperage rating
320 A
Material
Galvanized steel
Finish
ANSI 61 gray paint Mill-galvanized
Feature: 320 A amperage rating with 3/8”-16 stud, 2/0 AWG-300 KCMIL conductor range, 4 jaws, 1 position, ringless design, 3R surface-mount configuration. Business Impact: Supports large metering loads with secure, straightforward wiring, reducing cooldowns and improving overall system reliability. Application: Ideal for commercial and industrial service entrances requiring high-capacity meter protection with flexible wiring options. Feature: Ringless meter jaw design simplifies installation and minimizes field handling, speeding up commissioning and lowering arc-flash exposure. Business Impact: Cuts installation time and labor costs while improving safety and compliance. Application: Suitable for new builds and retrofit metering installations in busy electrical rooms. Feature: Galvanized steel body with ANSI 61 gray paint finish delivers corrosion resistance and long-term durability. Business Impact: Extends service life in harsh environments and reduces maintenance cycles. Application: Outdoor and indoor meter mounting in 3R enclosures. Feature: Surface mount, 3R enclosure with 1Ø/3W configuration supports compact, secure installations. Business Impact: Optimizes footprint and simplifies mounting alignment. Application: Meter sockets and group metering in constrained spaces. Feature: Compatibility with Eaton B-Line series ecosystem and UL certifications ensures aligned standards and spares availability. Business Impact: Streamlined sourcing and predictable performance across installations. Application: Projects requiring coordinated protection and mounting infrastructure.
Get a Quick Quote for a Eaton ELCB32C24A5GR1N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ELCB32C24A5GR1N?
Enquire Now
FAQs
The ELCB32C24A5GR1N is expressly designed for meter mounting with a ringless jaw system and 1Ø/3W wiring. It accepts conductors from 2/0 AWG up to 300 kCMIL and uses four jaws in a single-position configuration, enabling straightforward integration into existing metering arrangements without ring contacts that can complicate installations.
This unit provides a 320 A amperage rating, galvanized steel construction, and UL listing. The combination supports high-load metering applications while ensuring safety and compliance with applicable standards. The 3R enclosure and surface-mount design further contribute to predictable thermal performance and reliable operation in demanding environments.
Yes. The meter breaker uses galvanized steel with an ANSI 61 gray finish inside a 3R enclosure, which is designed for durability in both indoor and outdoor settings. Its surface-mount, 3R configuration provides additional weather-resistance characteristics, making it suitable for exposed meter locations and other challenging environments.
The Eaton meter breaker is UL-listed, providing assurance of compliance with essential low-voltage protection standards. This certification supports safer installation practices and aligns with industry expectations for reliability in meter mounting equipment. Documentation and specification sheets from Eaton further validate compatibility and performance expectations.
The combination of a high-capacity 320 A rating, ringless jaw design, and durable galvanized construction reduces installation time, labor costs, and maintenance intervals. Its 3R enclosure and robust finish protect against corrosion, contributing to longer service life and lower ongoing maintenance expenses for metering installations in commercial and industrial facilities.
