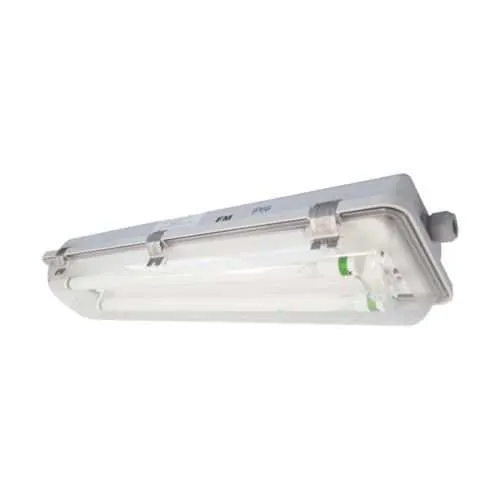

Eaton EMAR22171000EM2 Linear Fluorescent Fixture - IP66
Part Number: EMAR22171000EM2
Quick Summary
The Eaton EMAR22171000EM2 is a linear fluorescent light fixture for industrial environments. Maintenance and reliability in demanding spaces are challenging without rugged, standards-compliant lighting. This luminaire meets NEC/CEC standards and carries IP66 and NEMA 4X ratings, making it suitable for ordinary/non-hazardous locations in harsh settings. It is ceiling-mounted with a 2-ft length and a fiberglass-reinforced polyester housing for durability. With emergency battery back-up and a 17W footprint, it delivers dependable illumination while reducing energy costs. The polycarbonate lens resists impact in busy plant environments, supporting long service life. This integration of ruggedness and efficiency translates to lower lifecycle costs for industrial facilities.
Product Information
Extended Description
EMAR22171000EM2 Eaton: Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent,3/4" Plastic gland at one end,plugged entry,2 ft,Polycarb lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,battery back-up,one lamp,277V maximum,Ceiling,120-277 Vac,17W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent light fixture
Catalog Number
EMAR22171000EM2
UPC
662276496217
Product Length/Depth
29 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
9 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
2 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Ceiling
Entry size
3/4"
Entry type
Plastic gland at one end, plugged entry
Wattage
17W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Emergency battery back-up ballast, one lamp, 277V maximum
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
IF LBL1579 - Pauluhn ECOS EMAR Series Linear Fluorescent
Eaton Specification Sheet - EMAR22171000EM2
Feature: Rugged enclosure and protection — IP66 ingress protection, NEMA 4X rating, fiberglass-reinforced polyester housing, polycarbonate lens. Business Impact: Guards against dust, water exposure, corrosion, and impact, reducing maintenance frequency and downtime. Application: Suitable for warehouses, production lines, and washdown areas where harsh conditions prevail. Feature: Energy-efficient lighting — 2-lamp configuration, 17W consumption, 2 ft length, T8 bi-pin. Business Impact: Lower operating costs and cooler running temps with steady lumen maintenance. Application: General area lighting across industrial facilities with demanding schedules. Feature: Emergency lighting capability — emergency battery back-up ballast, one lamp, 277V maximum. Business Impact: Ensures exit and safety illumination during power outages, aiding compliance. Application: Safety-critical zones such as corridors and workspaces. Feature: Flexible installation and power compatibility — 120–277 VAC, 50/60 Hz, ceiling mounting, 3/4" plastic gland end, plugged entry. Business Impact: Streamlines retrofit and new-install projects with broad electrical compatibility. Application: Diverse plant layouts and retrofit programs. Feature: Durable materials and lenses — fiberglass-reinforced polyester housing, polycarbonate lens. Business Impact: Long service life in demanding environments with reduced replacement cycles. Application: Industrial plants, manufacturing floors, and service bays with high traffic.
Get a Quick Quote for a Eaton EMAR22171000EM2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EMAR22171000EM2?
Enquire Now
FAQs
EMAR22171000EM2 is designed for ceiling mounting with a 2-ft length and a 3/4" plastic gland end. It supports 120–277 VAC, 50/60 Hz, and features a plugged entry for straightforward wiring. Ensure IP66-rated seals are intact and mounting hardware is suitable for your ceiling type to maintain enclosure integrity.
Yes. The fixture is IP66 protected and has a NEMA 4X enclosure, making it well-suited for ordinary/non-hazardous locations in damp, dusty, or washdown environments found in industrial settings.
It uses a 17W, 2-lamp configuration with a 2-ft form factor and T8 bi-pin lamps. This combination delivers reliable illumination with low power draw, reducing energy costs while maintaining adequate lumen output for general area lighting.
The fixture adheres to NEC/CEC standards, features IP66 ingress protection, and a NEMA 4X enclosure rating, with suitability for ordinary/non-hazardous locations. UL certification references are available via Eaton documentation and UL portal links.
Yes. The unit includes an emergency battery back-up ballast for one lamp with a 277V maximum, enabling continued illumination during power interruptions and aiding emergency egress compliance.
