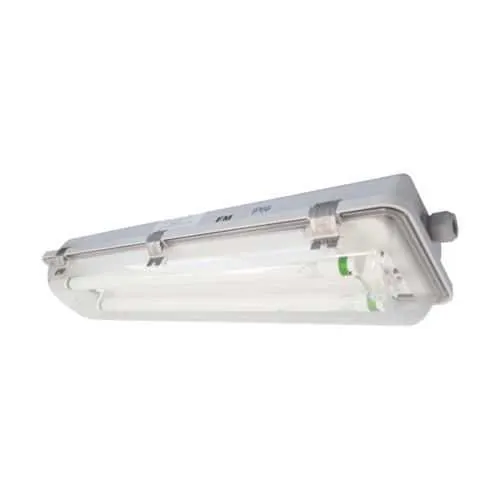

Eaton EMAR22175000EM2 Linear Fluorescent Fixture - IP66
Part Number: EMAR22175000EM2
Quick Summary
Eaton EMAR22175000EM2 is a linear fluorescent light fixture designed for industrial environments. This robust solution helps ensure consistent illumination where reliability matters most. The unit meets NEC/CEC compliance with NEMA 4X and IP66 ratings, supporting durable performance in harsh or washdown areas. Designed for 2-lamp operation with a 2 ft lamp length and emergency back-up capability, it delivers safe, code-compliant lighting. For facilities needing flexible power range and straightforward maintenance, this fixture offers substantial value in productivity, safety, and total cost of ownership.
Product Information
Extended Description
EMAR22175000EM2 Eaton: Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent,3/4" Plastic gland at one end,plugged entry,2 ft,Polycarb lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,battery back-up,one lamp,277V max,Shock mount,120-277 Vac,17W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent light fixture
Catalog Number
EMAR22175000EM2
UPC
662276442252
Product Length/Depth
29 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
11.1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
2 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Shock mount
Entry size
3/4"
Entry type
Plastic gland at one end, plugged entry
Wattage
17W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Emergency battery back-up ballast, one lamp, 277V maximum
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
IF LBL1579 - Pauluhn ECOS EMAR Series Linear Fluorescent
Eaton Specification Sheet - EMAR22175000EM2
Feature → Business Impact → Application: Rugged IP66/NEMA 4X housing provides dust, water, and corrosion resistance, reducing downtime and maintenance costs while extending service life in wet or harsh environments such as washdown zones and outdoor process areas. This translates to lower lifecycle costs and higher asset reliability on production floors and maintenance corridors. In practice, teams can deploy the EMAR22175000EM2 in demanding spaces without frequent replacements, improving uptime and worker safety. Feature → Business Impact → Application: Two-lamp, 2 ft lamp-length configuration delivers higher lumen output per run with efficient 17W consumption, optimizing energy use while preserving light quality. This suits long runs in corridors, bays, and mezzanines where consistent illumination is critical for process accuracy and safety.
Get a Quick Quote for a Eaton EMAR22175000EM2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EMAR22175000EM2?
Enquire Now
FAQs
The EMAR22175000EM2 is rated for 120–277 VAC operation and supports 50/60 Hz, making it flexible for multi-site deployments. This compatibility reduces the need for multiple ballast configurations and simplifies electrical planning during installation, delivering consistent performance across varying regional power standards.
With an area classification of Ordinary/Non-Hazardous Locations, NEMA 4X protection, and IP66 ingress rating, this fixture is designed for cleanroom-adjacent, workshop, and general manufacturing environments. Its rugged housing and lens withstand routine exposure to dust, splashes, and cleaning regimes, ensuring long-term reliability.
Yes, the EMAR series includes an emergency battery back-up ballast option for one lamp, enabling critical path lighting during power outages. This feature supports egress requirements and safety compliance in facilities where continuous illumination is essential for safe operation and evacuation readiness.
The unit uses a shock mount and a 3/4" entry size with a plastic gland at one end for ease of cable entry and routing. Its fiberglass-reinforced polyester housing and polycarbonate lens simplify cleaning and refurbishment, while the 29 inch length fits standard fixture rows, reducing alignment issues during retrofits or new installations.
This fixture aligns with NEC/CEC standards, features IP66 ingress protection, and provides NEMA 4X enclosure protection. These certifications validate resistance to water, dust, and impacts, supporting regulatory compliance and ensuring consistent performance in demanding industrial applications like processing plants and outdoor facilities.
