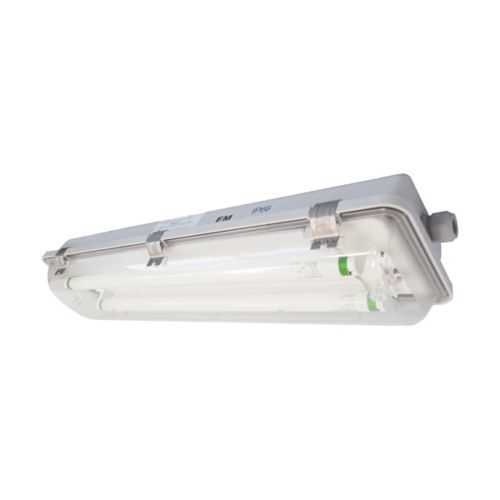

Eaton EMAR22371000L Linear Fluorescent Light Fixture - IP66

Part Number: EMAR22371000L
Manufacturer
Eaton
Part number
EMAR22371000L

Quick Summary

Eaton EMAR22371000L is a linear fluorescent light fixture for ceiling-mounted general illumination in industrial facilities. This design addresses downtime and maintenance delays by delivering a ready-to-install solution with lamps included, simplifying startup and service. It carries durable protections such as IP66 for ingress protection, NEMA 4X enclosure strength, and NEC/CEC compliance to support safe operations in non-hazardous locations. Engineered for 120-277 VAC and 50/60 Hz, it delivers reliable performance while reducing energy and maintenance costs. This makes it a practical choice for warehouses, production lines, and service areas where durable, maintenance-friendly lighting is essential.

Product Information

Extended Description

EMAR22371000L Eaton: Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent light fixture,3/4" Plastic gland at one end,plugged entry,2 ft,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Lamps included,Ceiling,120-277 Vac,18W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent light fixture
Catalog Number
EMAR22371000L
UPC
662276433793
Product Length/Depth
29 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
9 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
2 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Ceiling
Entry size
3/4"
Entry type
Plastic gland at one end, plugged entry
Wattage
18W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Lamps included
Feature: Two-lamp, 18W fluorescent configuration. Business Impact: Delivers adequate lumen output with low energy consumption, reducing operating costs while maintaining ample illumination. Application: Ideal for long runs in corridors, aisles, and work cells where consistent light is critical. Feature: 120-277 VAC, 50/60 Hz compatibility. Business Impact: Flexible power supply compatibility minimizes electrical infrastructure changes and enables easy retrofits. Application: Suits facilities with mixed mechanical and electrical utilities across varying sites. Feature: IP66 ingress protection and NEMA 4X enclosure. Business Impact: Provides robust resistance to dust, water spray, and harsh environments, lowering maintenance and replacement risk. Application: Suitable for wash-down areas, outdoor-adjacent interiors, and industrial bays. Feature: Polycarbonate lens and fiberglass-reinforced polyester housing. Business Impact: Combines impact resistance with weathering performance, extending service life in demanding settings. Application: Great for high-traffic spaces and environments with potential mechanical contact. Feature: Lamps included and plug entry with 3/4" gland. Business Impact: Reduces downtime during installation and simplifies field servicing, improving project timelines. Application: Engineering teams can deploy quickly in new builds or renovations. Feature: Ceiling mounting and 2 ft length with 29 in overall product depth. Business Impact: Streamlines installation planning and provides versatile mounting in constrained ceilings. Application: Warehouses, manufacturing floors, and maintenance shops.

Get a Quick Quote for a Eaton EMAR22371000L

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton EMAR22371000L? Enquire Now

FAQs

EMAR22371000L is designed for ceiling mounting and features a 3/4" entry with a plastic gland at one end and a plugged entry, simplifying installation. The fixture uses a 2 ft lamp length and comes with two lamps included, enabling a quick deployment in standard ceiling grids. Its 120-277 VAC, 50/60 Hz compatibility supports most industrial electrical systems.
This fixture operates at 120-277 VAC with a 50/60 Hz frequency rating and consumes 18W per lamp in a 2-lamp configuration. It uses T8 bi-pin fluorescent lamps and has a 2 ft lamp length. The polycarbonate lens and fiberglass-reinforced polyester housing contribute to durability and lighting quality in industrial environments.
Yes. EMAR22371000L is rated for Ordinary/Non-Hazardous Locations with IP66 ingress protection and NEMA 4X enclosure, providing reliable operation in dusty, damp, or wash-down areas without compromising safety or longevity. It is well suited for warehouses, manufacturing corridors, and general assembly areas requiring rugged, maintenance-friendly lighting.
The fixture adheres to NEC/CEC standards and is built to meet NEMA 4X enclosure requirements, with IP66 ingress protection. These certifications ensure electrical safety, weather resistance, and suitability for ordinary industrial locations, giving buyers confidence in code compliance and long-term performance.
Lamps are included, reducing stocking and replacement time during installation or relamping cycles. The 18W, two-lamp configuration delivers energy savings versus higher wattage fixtures, while the rugged housing and lens reduce replacement frequency due to impact or moisture exposure, translating to lower total cost of ownership.
