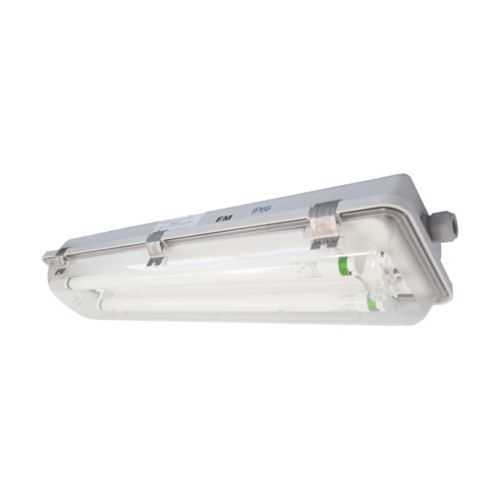

Eaton EMAR22372000T2 Linear Fluorescent Light - IP66
Part Number: EMAR22372000T2
Quick Summary
The Eaton EMAR22372000T2 linear fluorescent light fixture delivers durable, reliable illumination for industrial wall-mounted applications. In harsh facilities, misaligned wiring, plugged entry configurations, and limited ingress protection can slow maintenance and raise safety risk. This EMAR unit follows NEC/CEC standards, carries a NEMA 4X enclosure rating, and achieves IP66 ingress protection, supporting safe, long-life operation in challenging environments. Designed for the Pauluhn ECOS family, it combines a 2-lamp, 18W configuration with a fiberglass-reinforced polyester housing and a polycarbonate lens to reduce maintenance intervals and replacement costs. Its wall-mount design, 3/4" entry, and dual end terminals enable straightforward installation in industrial plants with limited ceiling access.
Product Information
Extended Description
EMAR22372000T2 Eaton: Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent,3/4" Plastic gland at one end,plugged entry,2 ft,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Two 5-pole term blocks,one on each end,Wall,120-277 Vac,18W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent light fixture
Catalog Number
EMAR22372000T2
UPC
662276464520
Product Length/Depth
29 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
11.1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
2 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Wall
Entry size
3/4"
Entry type
Plastic gland at one end, plugged entry
Wattage
18W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Two 5-pole terminal blocks, one on each end
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
IF LBL1579 - Pauluhn ECOS EMAR Series Linear Fluorescent
Eaton Specification Sheet - EMAR22372000T2
Rugged enclosure with polycarbonate lens provides superior impact resistance and washdown durability, minimizing downtime in manufacturing and wastewater facilities while protecting critical lighting from dust, water and cleaning agents. This translates to lower lifecycle costs and fewer service calls, delivering dependable illumination where visibility directly impacts productivity and safety. The 2-lamp, 18W configuration offers energy efficiency without sacrificing lumen output, supporting lower utility bills and longer intervals between lamp replacements on busy production floors. The 3/4" entry with a plastic gland and a plugged entry design simplifies field wiring, reduces ingress paths for contaminants, and accelerates on-site installs in tight utility rooms and corridors. Two 5-pole terminal blocks (one on each end) enable flexible installation routes and safer, more secure terminations in harsh environments. Fiberglass-reinforced polyester housing adds chemical and mechanical resilience, ideal for automotive or chemical plants, while the polycarbonate lens guards against impact and UV exposure. The unit operates on 120–277 VAC at 50/60 Hz, supporting universal compatibility and minimizing stock variety for maintenance teams.
Get a Quick Quote for a Eaton EMAR22372000T2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EMAR22372000T2?
Enquire Now
FAQs
Install on a secure wall surface using the 2 ft length design, connect 120–277 VAC input, and use the 3/4" entry with the plastic gland at one end. The fixture includes two end terminals for flexible wiring routes and a plug entry on the opposite side to minimize dust ingress during setup.
It complies with NEC/CEC standards, features a NEMA 4X enclosure, and provides IP66 ingress protection, making it suitable for ordinary/non-hazardous locations and for washdown environments in industrial facilities.
The fixture is a 2-lamp configuration with an 18W output total, using T8 bi-pin lamps for efficient, reliable performance in continuous-duty applications.
No. The product is rated for Ordinary/Non-Hazardous Locations, with IP66 and NEMA 4X protection, but it is not certified for hazardous or explosive environments.
Its durable FRP housing, polycarbonate lens, and universal 120–277 VAC input simplify stock management and reduce replacement cycles, while the dual end terminal blocks and plug-entry design streamline installation and service in harsh industrial settings.
