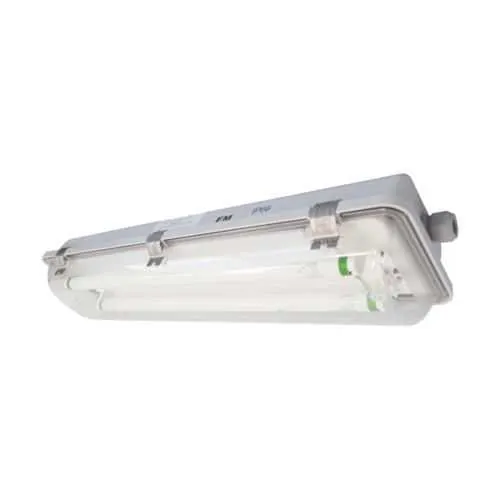

Eaton EMAR22373412L Linear Fluorescent Light - IP66

Part Number: EMAR22373412L
Manufacturer
Eaton
Part number
EMAR22373412L

Quick Summary

Eaton EMAR22373412L is a rugged linear fluorescent light fixture designed for industrial facilities and harsh locations. It helps reduce maintenance downtime in demanding environments with sealed housing and included lamps. Certified for Ordinary/Non-Hazardous Locations, with a NEMA 4X enclosure and IP66 ingress protection, this fixture meets tough reliability standards in wet and dusty areas. The 2-lamp, T8 bi-pin configuration runs on 120-277Vac, 50/60 Hz, and a compact 29 in length fits standard layouts while delivering consistent illumination across workstations and corridors.

Product Information

Extended Description

EMAR22373412L Eaton: Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent light fixture, One gland at each end,2 ft,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Lamps included,Pipe clamp bracket,120-277 Vac,18W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent light fixture
Catalog Number
EMAR22373412L
UPC
662276498976
Product Length/Depth
29 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
9 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
2 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Pipe clamp bracket
Entry type
One gland at each end
Wattage
18W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Lamps included
Feature: Rugged fiberglass-reinforced polyester housing and polycarbonate lens deliver resistance to impact, moisture, and chemical cleaners. Business Impact: This design reduces replacement cycles and lowers maintenance costs in industrial environments. Application: Ideal for manufacturing floors, loading docks, and service bays where dirt and impact are common. Feature: End glands at each end and a pipe clamp bracket for mounting. Business Impact: Enables straightforward wiring and secure installation in exposed areas, minimizing field wiring errors. Application: Suitable for 120-277V, 50/60 Hz service in standard layouts. Feature: Lamps included with a 2-lamp, 18W, T8 bi-pin fluorescent configuration. Business Impact: Reduces total installed cost and accelerates deployment. Application: Works well in maintenance bays, production lines, and overhead work areas. Feature: IP66 ingress protection and NEMA 4X enclosure. Business Impact: Provides dust and water spray resistance, extending life in harsh indoor environments. Application: Ordinary/Non-Hazardous Locations. Feature: Size and weight—29 in length, 8.5 in width, 5.6 in height, and 9 lb. Business Impact: Fits standard fixture footprints, simplifying retrofits and inventory management. Application: Ideal for facility upgrades and new installations in constrained spaces.

Get a Quick Quote for a Eaton EMAR22373412L

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton EMAR22373412L? Enquire Now

FAQs

EMAR22373412L is designed for straightforward field wiring with one gland at each end and a pipe clamp bracket for secure mounting. It operates on 120-277 VAC at 50/60 Hz and uses a 2-lamp T8 bi-pin fluorescent configuration. Lamps are included, which reduces purchasing steps and speeds up initial commissioning in industrial settings.
This fixture is suitable for Ordinary/Non-Hazardous Locations and features IP66 ingress protection with a NEMA 4X enclosure. It complies with NEC/CEC standards, providing robust protection against dust and water exposure in standard industrial spaces such as factories and warehouses.
The fixture operates at 120-277 VAC, 50/60 Hz, with an 18W rating across a 2-lamp configuration using T8 bi-pin fluorescent lamps. Lamps are included, and the unit is designed for use in typical HVAC and lighting circuits found in industrial facilities.
The fixture measures 29 inches in length, 8.5 inches in width, and 5.6 inches in height, with a weight of 9 pounds. These dimensions support ease of installation in standard ceiling grids and along typical fixture runs in maintenance areas.
Available resources include the Crouse-Hinds ECOS EMAR literature and installation sheets, as well as the Eaton specification sheet. References include the Pauluhn ECOS brochure, catalog page, and the IF LBL1579 installation instruction to aid field technicians during retrofit projects.
