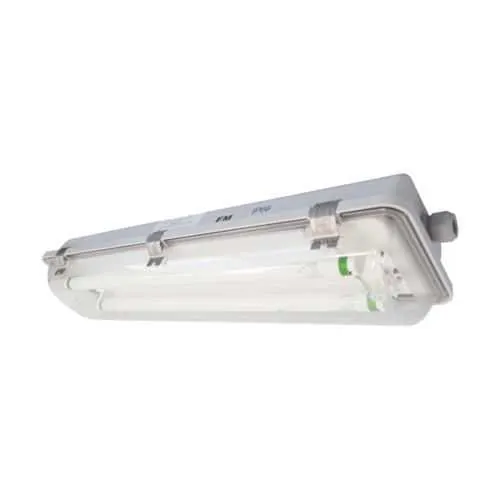

Eaton EMAR22375000L Linear Fluorescent Fixture - IP66
Part Number: EMAR22375000L
Quick Summary
The Eaton EMAR22375000L linear fluorescent light fixture provides durable, energy-efficient illumination for industrial spaces such as manufacturing floors and warehouses, in a 2-foot, two-lamp package. In harsh facilities, ingress protection and ongoing maintenance drive downtime; this unit minimizes both with rugged IP66/NEMA 4X enclosure, polycarbonate lens, and plug-entry design. It complies with NEC/CEC standards, and its ordinary/non-hazardous area rating supports safe, compliant operation in typical plant environments. With its 2-lamp, 18W configuration, polycarbonate lens, fiberglass-reinforced polyester housing, and shock-mount installation, it enables quick retrofits and reduced maintenance costs. Designed for ease of service, its sealed entry and included lamps simplify stocking and field replacement.
Product Information
Extended Description
EMAR22375000L Eaton: Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent light fixture,3/4",Plastic gland at one end,plugged entry,2 ft,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Lamps included,Shock mount,120-277 Vac,18W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent light fixture
Catalog Number
EMAR22375000L
UPC
662276700055
Product Length/Depth
29 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
9 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
2 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Shock mount
Entry size
3/4"
Entry type
Plastic gland at one end, plugged entry
Wattage
18W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Lamps included
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
IF LBL1579 - Pauluhn ECOS EMAR Series Linear Fluorescent
Eaton Specification Sheet - EMAR22375000L
The EMAR EMAR22375000L is built to withstand demanding industrial environments with an IP66 rating and a NEMA 4X enclosure, protecting against dust, water jets, and corrosion. This protection translates to lower maintenance frequency and longer interval replacements, which is critical in high-use facilities like warehouses and manufacturing floors. The two-lamp 18W design provides efficient, adequate lighting for typical 2-foot layouts, reducing energy consumption while maintaining strong lumen output and favorable operating costs. A plastic gland at one end with a plugged entry simplifies wiring during installation and retrofits, delivering a faster, cleaner setup with fewer ingress points for contaminants. The fiberglass-reinforced polyester housing delivers rugged durability and chemical resistance, helping fixtures withstand harsh environments without compromising performance. A polycarbonate lens adds impact resistance and clarity, ensuring long-term light transmission even in busy facilities with forklift traffic. Lamps included with the EMAR series support rapid startup and immediate illumination, cutting downtime during transitions and maintenance cycles. Taken together, these features deliver improved reliability, easier service, and lower total cost of ownership for industrial lighting projects.
Get a Quick Quote for a Eaton EMAR22375000L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EMAR22375000L?
Enquire Now
FAQs
EMAR22375000L uses a 3/4" entry and plastic gland at one end with a plugged entry, simplifying wiring during installation or retrofit. It operates from 120–277 Vac at 50/60 Hz and ships with lamps included, enabling quick startup. The shock-mount design also helps absorb vibration, reducing the risk of wire fatigue in harsh environments.
This fixture is a 2-lamp, 18W unit designed for 2 ft lengths and T8 bi-pin lamps. It supports a wide voltage range of 120–277 Vac and 50/60 Hz, with an IP66 and NEMA 4X rated enclosure. Material choices include fiberglass-reinforced polyester housing and a polycarbonate lens, delivering durable and reliable illumination in ordinary locations.
Yes. The product is certified for Ordinary/Non-Hazardous Locations and meets NEC/CEC standards, ensuring safe operation in typical plant environments. Its IP66 and 4X ratings provide added protection against dust, water, and impact, making it a dependable choice for warehouses and manufacturing floors.
EMAR22375000L aligns with NEC/CEC standards and carries rugged protections such as IP66 and NEMA 4X. These certifications support compliant operation in non-hazardous locations, while the robust enclosure enhances durability in environments with moisture, dust, and physical contact.
With lamps included, a polycarbonate lens, shock-mount hardware, and a sealed plug-entry design, EMAR22375000L reduces field downtime and simplifies maintenance. The 18W two-lamp configuration delivers efficient lighting, lowering energy costs and extending interval replacement cycles, leading to a favorable ROI in facilities with steady, non-hazardous usage.
