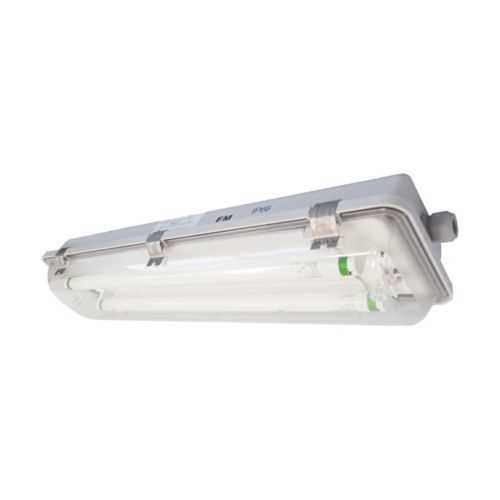

Eaton EMAR22375422 Linear Fluorescent Light Fixture - IP66
Part Number: EMAR22375422
Quick Summary
EMAR22375422 is a rugged Eaton Crouse-Hinds Pauluhn ECOS linear fluorescent light fixture designed for industrial facilities. In harsh environments, maintenance teams battle corrosion, ingress, and short lamp life, driving downtime and costs. This luminaire carries IP66 ingress protection, a NEMA 4X enclosure, and NEC/CEC compliance to help you meet regulatory and safety requirements. With a two-lamp, 18W configuration and shock-mount design, it reduces maintenance cycles while delivering dependable illumination in ordinary locations. The product aligns with the Pauluhn ECOS family, offering compatibility with 120-277 Vac supplies and a 50/60 Hz grid, supporting retrofit projects and new builds alike. Its fiberglass-reinforced polyester housing and polycarbonate lens contribute to long service life in demanding installations.
Product Information
Extended Description
EMAR22375422 Eaton: Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent light fixture,Two glands at each end,50/60 Hz,2 ft lamp,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Shock mount,120-277 Vac,18W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent light fixture
Catalog Number
EMAR22375422
UPC
662276715622
Product Length/Depth
29 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
9 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
2 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Shock mount
Entry type
Two glands at each end
Wattage
18W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
IF LBL1579 - Pauluhn ECOS EMAR Series Linear Fluorescent
Eaton Specification Sheet - EMAR22375422
Feature → Business Impact → Application: Two-lamp, 18W configuration delivers efficient lighting with lower energy consumption and extended maintenance intervals in manufacturing floors and assembly lines, reducing operating costs and downtime. Feature → IP66 ingress protection and NEMA 4X enclosure provide rugged, corrosion-resistant performance in non-hazardous areas, improving safety and reliability in washroom, utility, and staging zones. Feature → Shock-mounted mounting and two glands at each end simplify installation, wiring, and future servicing, accelerating startup in retrofit or new-build projects. Feature → Fiberglass-reinforced polyester housing and polycarbonate lens offer chemical resistance and impact protection, increasing lifecycle in harsh environments such as shipping, warehouses, and process areas. Feature → 120-277 Vac and 50/60 Hz compatibility enable seamless integration with standard industrial power systems, reducing control wiring costs and scope creep. These specifications encourage safer, compliant installations with predictable maintenance windows and a lower total cost of ownership for mid-to-large facilities.
Get a Quick Quote for a Eaton EMAR22375422
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EMAR22375422?
Enquire Now
FAQs
EMAR22375422 is designed for straightforward installation. It features shock mounts and two glands at each end to streamline wiring, supports 120–277 Vac at 50/60 Hz, and uses a two-lamp 18W configuration with a T8 bi-pin lamp. Ensure NEC/CEC compliance, maintain IP66 sealing, and follow standard non-hazardous-location installation procedures to maximize reliability.
Key specs include two 18W lamps in a 2-lamp configuration, 120–277 Vac input, 50/60 Hz operation, T8 bi-pin lamp type, fiberglass-reinforced polyester housing, polycarbonate lens, and shock-mount construction. It is rated IP66 with a NEMA 4X enclosure and is intended for ordinary/non-hazardous locations, delivering robust illumination with simplified maintenance.
While designed primarily for ordinary locations, EMAR22375422 features IP66 ingress protection and a NEMA 4X enclosure, offering strong resistance to dust, water jet exposure, and corrosion. For washdown-heavy areas, verify specific facility requirements and consider additional protective measures or alternative models in the Pauluhn ECOS EMAR line designed for harsher environments.
The EMAR22375422 carries NEC/CEC standards compliance, a NEMA 4X enclosure, and IP66 ingress protection, ensuring safe operation and protection in ordinary locations. These certifications support regulatory adherence, reduce risk in installations, and simplify procurement by aligning with common industry codes for non-hazardous facilities.
The two-lamp, 18W configuration lowers energy use while maintaining adequate illumination for industrial spaces, improving energy cost ROI. The shock-mounted design and end glands simplify field servicing and wiring, reducing maintenance time. Fiberglass-reinforced polyester housing and polycarbonate lens enhance durability, extending service life and reducing replacement cycles in demanding facilities.
