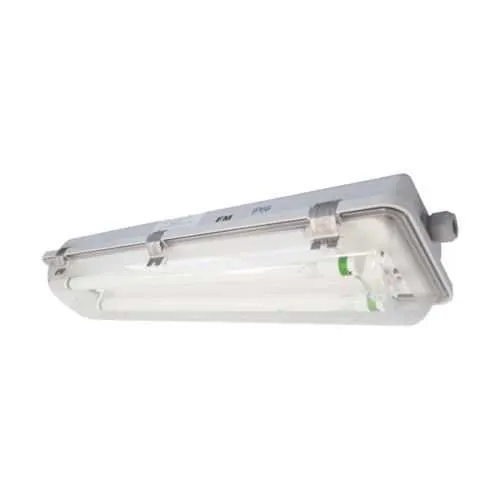

Eaton EMAR42171000 Linear Fluorescent Lighting - NEMA 4X IP66
Part Number: EMAR42171000
Quick Summary
Eaton EMAR42171000 linear fluorescent lighting provides rugged ceiling-mounted illumination for industrial facilities. This fixture helps mitigate downtime in harsh environments by delivering reliable 4 ft, two-lamp lighting with robust protection. It carries critical certifications such as IP66 and NEMA 4X, plus NEC/CEC compliance, ensuring safe, compliant operation in ordinary locations. Designed for 120–277 VAC, 50/60 Hz environments, it combines durability with energy-conscious performance, supporting streamlined maintenance programs and consistent illumination for production lines and warehouses.
Product Information
Extended Description
EMAR42171000 Eaton: Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent light fixture,3/4" Plastic gland at one end,plugged entry,50/60 Hz,4 ft,Fluorescent,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Ceiling,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent light fixture
Catalog Number
EMAR42171000
UPC
662276374034
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Ceiling
Entry size
3/4"
Entry type
Plastic gland at one end, plugged entry
Wattage
32W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
IF LBL1579 - Pauluhn ECOS EMAR Series Linear Fluorescent
Eaton Specification Sheet - EMAR42171000
IP66 and NEMA 4X protection in the EMAR42171000 fixture reduce dust ingress and water exposure, delivering lower maintenance costs and extended service life in wash-down areas. This translates to fewer replacements and less downtime in manufacturing and material handling applications. The 4 ft, 2-lamp, 32W design provides bright, even illumination with energy efficiency, helping facilities meet lighting standards while controlling operating expenses. Its universal 120–277 VAC supply at 50/60 Hz simplifies procurement and stocking, enabling quick deployment across multi-site facilities and minimizing voltage compatibility issues. The 3/4" plastic gland end entry and plugged entry simplify wiring and retrofit projects, reducing installation time and risk for maintenance teams. Fiberglass-reinforced polyester housing and polycarbonate lens offer durable, impact-resistant protection suitable for rugged industrial environments and demanding applications where long-term reliability matters.
Get a Quick Quote for a Eaton EMAR42171000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EMAR42171000?
Enquire Now
FAQs
EMAR42171000 is designed for ceiling mounting with a 53 inch body and 4 ft lamp length. It features a 3/4 inch entry with a plastic gland at one end and a plugged entry, enabling straightforward wiring and secure installation in ceiling channels or housings.
This fixture carries IP66 protection and a NEMA 4X rating for rugged, dust-tight, water-resistant performance. It complies with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, providing regulatory alignment and safe operation in typical industrial spaces.
Yes. The IP66 ingress protection and NEMA 4X enclosure guard against dust and water intrusion, making it well-suited for wash-down and dusty environments while maintaining reliable light output and fixture integrity.
The 32W, 2-lamp configuration delivers efficient illumination over a 4 ft length, reducing energy usage compared to higher-wattage alternatives. Coupled with durable housing and lens, it minimizes maintenance cycles and replacement costs in demanding facilities.
Yes. It operates on 120–277 VAC with a 50/60 Hz frequency rating, making it compatible with most industrial power systems and simplifying cross-site deployments without multiple variants.
