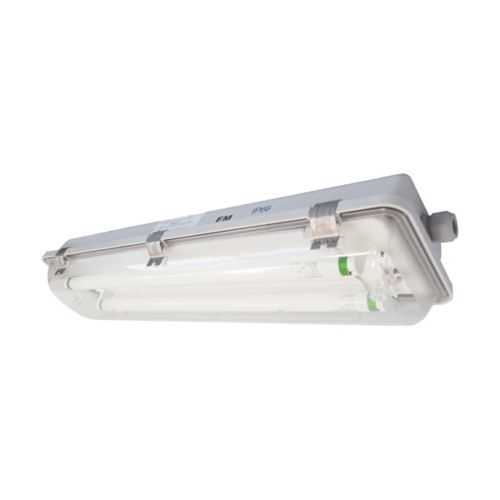

Eaton EMAR42172000L Linear Fluorescent Light Fixture - IP66

Part Number: EMAR42172000L
Manufacturer
Eaton
Part number
EMAR42172000L

Quick Summary

Eaton EMAR42172000L is a linear fluorescent light fixture for wall-mounted industrial illumination. In demanding environments, unreliable lighting can disrupt maintenance and production schedules. This unit delivers IP66 ingress protection, NEMA 4X enclosure, and NEC/CEC compliance, making it suitable for ordinary/non-hazardous locations. With a wide 120-277 VAC range and 32 W output across a 4 ft, two-lamp configuration, it supports efficient installation and long service life, aligning with standard warehouse and manufacturing facility lighting needs.

Product Information

Extended Description

EMAR42172000L Eaton: Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent light fixture,3/4",Plastic gland at one end,plugged entry,4 ft,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Lamps included,Wall,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent light fixture
Catalog Number
EMAR42172000L
UPC
662276658714
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Wall
Entry size
3/4"
Entry type
Plastic gland at one end, plugged entry
Wattage
32W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Lamps included
Feature → Business Impact → Application: The EMAR42172000L uses a 4 ft, 2-lamp fluorescent setup at 32 W, delivering bright, consistent illumination while minimizing energy use and maintenance frequency, reducing total cost of ownership in large facilities. Application: warehouses and manufacturing floors that require reliable wall-mounted lighting with low lifecycle costs and predictable performance. Feature → Robust housing → Business Impact → Application: Built with fiberglass-reinforced polyester and a polycarbonate lens, the fixture resists impact and harsh conditions, extending service life in dusty or workshop environments. Application: production lines and outdoor-adjacent spaces where exposure to debris and moisture is common. Feature → Sealed entry and gland design → Business Impact → Application: Plastic gland at one end with plugged entry simplifies field wiring, speeding installation and reducing commissioning time. Application: retrofit projects or new builds where quick, code-compliant mounting is critical. Feature → Electrical versatility → Business Impact → Application: Wide voltage range of 120-277 VAC and 50/60 Hz support enables single-stock parts across locations, reducing inventory costs. Application: multi-site operations seeking standardized lighting across facilities. Feature → Lamps included → Business Impact → Application: Including lamps minimizes downtime for initial startup and ensures immediate operability. Application: new installations or relocations that must meet fast turn-key schedules.

Get a Quick Quote for a Eaton EMAR42172000L

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton EMAR42172000L? Enquire Now

FAQs

EMAR42172000L is designed for wall mounting with a 3/4 inch entry and a plastic gland on one end, plus a plugged entry to simplify wiring. It supports 120-277 VAC and 50/60 Hz, uses T8 bi-pin lamps, and ships as a 2-lamp, 4 ft fixture with lamps included. This configuration reduces field configuration time and ensures a quick, code-compliant install.
The fixture operates at 120-277 VAC, 50/60 Hz, and consumes 32 W across two lamps. It is a 4 ft long, 2-lamp unit using fluorescent lamps with a T8 bi-pin base. The housing is fiberglass-reinforced polyester with a polycarbonate lens, delivering durability and reliable light output suitable for industrial spaces.
Yes, EMAR42172000L is rated for Ordinary/Non-Hazardous Locations and features IP66 ingress protection along with a NEMA 4X enclosure. While it is robust against dust and washdown-like conditions, it is not intended for hazardous or marine locations. Use in warehouses and manufacturing areas where durable, sealed lighting is required.
This Eaton fixture adheres to NEC/CEC standards and carries a NEMA 4X rating for rugged enclosures and IP66 protection for strong ingress resistance. It is designed for ordinary/non-hazardous locations, aligning with common commercial and industrial compliance requirements and ensuring safe, reliable operation in typical facility environments.
Lamps are included to accelerate startup, and the unit’s two-lamp design provides redundancy for extended uptime. The rugged fiberglass-reinforced housing and polycarbonate lens resist wear in dusty or oily environments, reducing replacement cycles. With universal voltage and quick installation, facilities can standardize lighting across sites, lowering spare parts inventories and maintenance costs.
