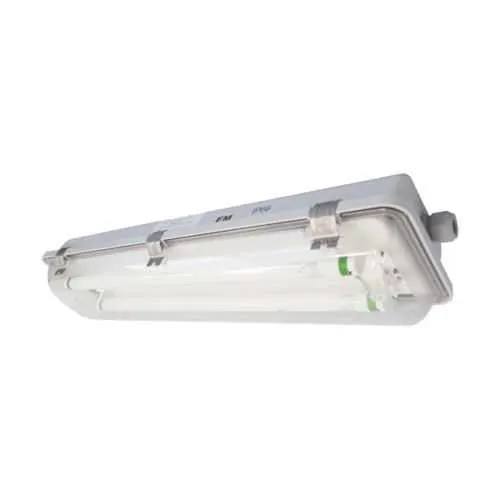

Eaton EMAR42371000L Linear Fluorescent Light Fixture - IP66
Part Number: EMAR42371000L
Quick Summary
Eaton EMAR42371000L linear fluorescent fixture provides durable industrial lighting. Maintenance teams regularly contend with corrosion, washdown exposure, and downtime when luminaires fail to withstand demanding environments. This fixture carries NEC/CEC compliance and protections such as NEMA 4X and IP66, ensuring reliable operation in ordinary/non-hazardous locations. Designed for ceiling mounting with a plug-entry configuration and lamps included, it supports a straightforward installation while aligning with typical building power of 120–277 VAC. For facilities managers seeking predictable performance, reduced maintenance costs, and compliant illumination, EMAR42371000L offers a practical, long-lasting solution.
Product Information
Extended Description
EMAR42371000L Eaton: Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent light fixture,3/4",Plastic gland at one end,plugged entry,4 ft,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Lamps included,Ceiling,120-277 Vac,36W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent light fixture
Catalog Number
EMAR42371000L
UPC
662276527850
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Ceiling
Entry size
3/4"
Entry type
Plastic gland at one end, plugged entry
Wattage
36W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Lamps included
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
IF LBL1579 - Pauluhn ECOS EMAR Series Linear Fluorescent
Eaton Specification Sheet - EMAR42371000L
Feature: 53 in product length with a 4 ft lamp arrangement and 2-lamp configuration. Business impact: Delivers ample, uniform illumination along long runs, reducing dark spots and re-lamping frequency. Application: manufacturing lines and warehouse aisles needing consistent light levels. The EMAR42371000L supports long-term operational efficiency by minimizing hot spots and maintenance cycles, while compatible with common long-span layouts in industrial facilities. Long-tail keywords addressed include linear fluorescent light fixture, 2-lamp fluorescent luminaire, and 4 ft fluorescent lighting for factories. Feature: Lamps included. Business impact: Immediate readiness on installation reduces downtime and total cost of ownership. Application: new-builds and retrofit projects where fast commissioning is essential. This feature aligns with procurement objectives to shorten project timelines and maximize uptime with predictable lumen output. Feature: Durable housing and lens. Business impact: IP66 protection and NEMA 4X enclosure resist dust, water ingress, and washdowns, extending service life. Application: washdown-ready environments in general manufacturing, food processing, and chemical processing facilities. This supports compliance with harsh environment requirements while minimizing replacement costs. Feature: Entry and wiring design. Business impact: 3/4" entry size with plastic gland at one end and plugged entry simplifies wiring, reduces installation time, and lowers field labor costs. Application: ceiling-mounted installations in tight service bays or overheadt line configurations. This design improves installation consistency and reduces risk of seal failures during commissioning. Feature: Electrical flexibility. Business impact: 120–277 VAC, 50/60 Hz compatibility ensures operation across variable building power, reducing the need for additional power conditioning. Application: facilities with mixed voltage supplies or evolving power infrastructure. This versatility supports future-proofing and easier vendor management, while maintaining energy performance expectations with 36W lamp output. Feature: Material and optics. Business impact: Fiberglass-reinforced polyester housing and polycarbonate lens provide impact resistance and clear optics for durable, maintenance-friendly operation. Application: general industrial spaces requiring robust construction and reliable light transmission, including areas with potential impact hazards. Long-tail keywords covered include fiberglass-reinforced polyester housing and polycarbonate lens luminaire.
Get a Quick Quote for a Eaton EMAR42371000L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EMAR42371000L?
Enquire Now
FAQs
EMAR42371000L is designed for ceiling mounting with a 3/4" entry and plastic gland at one end, plus a plugged entry. This simplifies wiring, reduces on-site labor, and supports quick retrofits. Ensure compatible ceiling clearance and access for serviceability; verify 120–277 VAC supply and 50/60 Hz operation to match your facility power.
The luminaire operates at 120–277 VAC with a 50/60 Hz frequency, uses a 2-lamp, 36W configuration, and employs T8 bi-pin lamps. Lamps are included, streamlining commissioning. The fixture is 53 inches long with a 4 ft lamp length, designed for ceiling installation and long-run lighting in industrial environments.
Yes. EMAR42371000L carries IP66 ingress protection and a NEMA 4X enclosure, making it suitable for ordinary/non-hazardous locations that require washdown resilience and dust resistance. This combination supports reliable performance in manufacturing, warehousing, and similar spaces where exposure to moisture and contaminants is a concern.
The fixture adheres to NEC/CEC standards and features NEMA 4X and IP66 ratings. These 인증s ensure electrical safety, environmental protection, and compliance with typical industrial lighting requirements, helping facilities satisfy regulatory obligations and minimize risk during audits and inspections.
Lamps are included, and the durable housing with sealed lens reduces routine maintenance and replacement frequency in harsh environments. The IP66/NEMA 4X protection minimizes washdown-related failures, while 120–277 VAC compatibility simplifies electrical integration. Together, these factors shorten project timelines and lower total cost of ownership over the fixture's life cycle.
