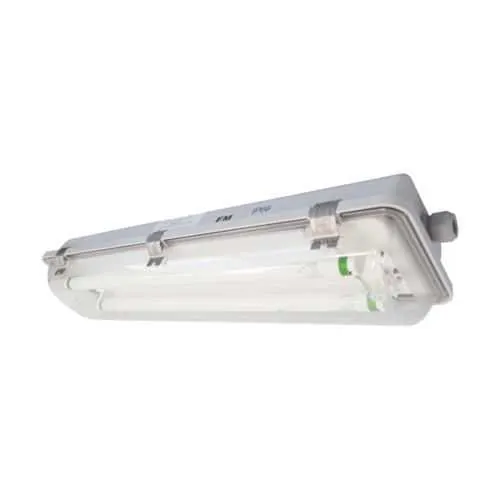

Eaton EMAR42571000L EMAR linear fluorescent light fixture - IP66
Part Number: EMAR42571000L
Quick Summary
Eaton EMAR42571000L is a reliable ceiling-mounted linear fluorescent light fixture designed for industrial spaces requiring robust illumination. Engineers often wrestle with harsh environments, dusty ceilings, and the need for quick, code-compliant installations that minimize downtime. This EMAR series unit delivers durable performance with a fiberglass-reinforced polyester housing, polycarbonate lens, and a 54W two-lamp configuration. It carries leading certifications and protection for demanding sites: IP66 ingress protection, NEMA 4X enclosure, and NEC/CEC compliance, making it suitable for ordinary/non-hazardous locations. With lamps included and a wide 120-277 VAC operating range, the fixture simplifies procurement and reduces upfront costs, while enabling predictable maintenance cycles and reliable long-term lighting in manufacturing, warehousing, and assembly environments.
Product Information
Extended Description
EMAR42571000L Eaton: Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent light fixture,3/4",Plastic gland at one end,plugged entry,4 ft,Polycarbonate lens,T5HO bi-pin,Fiberglass-reinforced polyester,2-lamp,Lamps included,Ceiling,120-277 Vac,54W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS EMAR linear fluorescent light fixture
Catalog Number
EMAR42571000L
UPC
662276629547
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T5HO bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Ceiling
Entry size
3/4"
Entry type
Plastic gland at one end, plugged entry
Wattage
54W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Lamps included
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
IF LBL1579 - Pauluhn ECOS EMAR Series Linear Fluorescent
Eaton Specification Sheet - EMAR42571000L
Feature IP66 ingress protection with a NEMA 4X enclosure provides rugged durability and resistance to dust and water ingress, reducing maintenance frequency and downtime in wash-down or damp spaces. Business Impact This protection translates to longer service life and lower lifecycle costs, improving uptime in manufacturing, assembly, and packaging lines. Application Used in harsh industrial environments where moisture or dust is present, ensuring reliable illumination without frequent replacements. Feature 54W two-lamp configuration in a 4 ft footprint delivers high lumen output with efficient energy use, supporting compliant facility lighting while controlling operating costs. Business Impact The energy-efficient design lowers utility bills and extends ballast life, while maintaining consistent light levels along long production aisles. Application Ideal for mid- to large-area work zones such as assembly benches and corridor lighting in warehouses.Feature Lamps included with a built-in ballast-friendly T5HO bi-pin configuration simplifies procurement and reduces project lead times. Business Impact Faster installation and lower upfront cost, plus predictable maintenance planning. Application Replacement projects and new builds benefit from immediate readiness and fewer sourcing steps for lamps.Feature 120-277 VAC, 50/60 Hz wide voltage range supports diverse facilities with a single stock solution, simplifying procurement. Business Impact Reduces inventory complexity and install time across multi-site operations. Application Suitable for mixed-voltage environments in factories, distribution centers, and light assembly areas.Feature Fiberglass-reinforced polyester housing and polycarbonate lens combine impact resistance with chemical and corrosion resilience. Business Impact Deferred replacement costs and safer long-term service in aggressive environments. Application Ideal for washdown zones, outdoor-canopy areas, and general industrial ceilings where durability matters.
Get a Quick Quote for a Eaton EMAR42571000L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EMAR42571000L?
Enquire Now
FAQs
EMAR42571000L is designed for ceiling mounting with a 3/4" entry and a plastic gland at one end, simplifying wiring and sealing. Verify the ceiling grid accepts a 53 in nominal length and allows the 120-277 VAC supply across 50/60 Hz. With lamps included, plan for a quick start-up; confirm the space is ordinary/non-hazardous and within the IP66/NEMA 4X protection envelope.
The fixture delivers 54W across two T5HO lamps in a 4 ft configuration, with a polycarbonate lens and fiberglass-reinforced polyester housing. IP66 ingress protection and a NEMA 4X enclosure protect against dust and water exposure, supporting long life in demanding spaces. The 120-277 VAC range and 50/60 Hz compatibility minimize ballast or power conversion issues, improving uptime and maintenance predictability.
Yes, EMAR42571000L targets ordinary/non-hazardous locations common in warehouses, manufacturing lines, and assembly areas. Its rugged housing, sealed entry, and impact-resistant lens resist cleaning agents and wash-down cycles typical in industrial environments. The 4 ft length and two-lamp design provide broad, consistent illumination for long aisles and workbenches while reducing hot spots and glare.
It complies with NEC/CEC standards for non-hazardous spaces and carries IP66 ingress protection with a NEMA 4X enclosure for corrosion resistance and rugged service. The design supports ordinary location classifications, and Eaton literature references UL and related certifications. This combination of certifications helps streamline approvals in regulated facilities and aids in passing field inspections.
By including lamps and delivering long-lasting performance in a sealed, durable housing, the EMAR42571000L reduces replacement frequency and labor costs. Its wide voltage range allows a single stock of fixtures across sites, minimizing spare parts. Energy usage at 54W per fixture coupled with lower maintenance translates to shorter payback periods and predictable operating expenses for industrial facilities.
