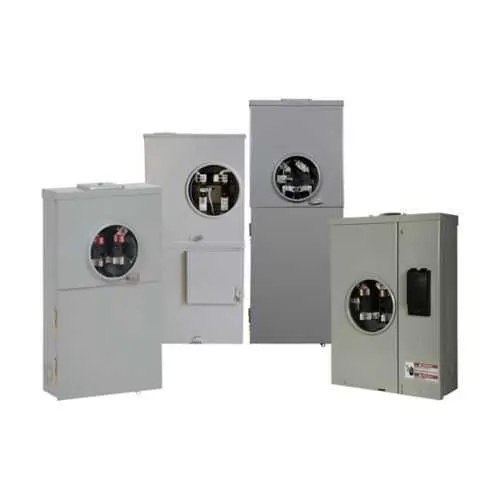

Eaton EMDST24B200BTS Meter Breaker - UL Listed All-in-ones
Part Number: EMDST24B200BTS
Quick Summary
EMDST24B200BTS is a residential meter breaker that provides integrated main protection for single-phase service. In busy electrical spaces, installers struggle with cluttered panels and mismatched protection, and this unit streamlines mounting and wiring. UL Listed certification and a NEMA 3R enclosure support outdoor and damp-area installations while maintaining service continuity. This design pairs a 200 A rating with surge protection, reducing downtime and protecting critical equipment. By consolidating components, it lowers installation costs and expedites code-compliant service upgrades. Facilities looking to meet residential protection standards can rely on UL certification and reliable Eaton engineering. For procurement teams, the all-in-one approach reduces vendor management and accelerates compliance testing.
Product Information
Extended Description
EMDST24B200BTS Eaton: Eaton meter breaker, 200A, main breaker, Nema 3R, Single phase, Surge Protection
Product Name
Eaton residential meter breaker
Catalog Number
EMDST24B200BTS
UPC
786689531072
Product Length/Depth
4.94 in
Product Height
25.5 in
Product Width
14.44 in
Product Weight
36.5 lb
Certifications
UL Listed
Type
All-in-ones
Enclosure
NEMA 3R
Amperage Rating
200 A
Phase
Single-phase
All-in-one protection design combines a 200 A main breaker, meter socket, and surge protection in a single enclosure. This consolidation reduces wiring complexity and parts count, cutting installation time and potential mismatch errors. Ideal for residential service upgrades and new builds, it simplifies panel layouts and speeds up inspections in utility rooms or mechanical spaces. UL Listed certification underpins compliance and risk management, while the NEMA 3R enclosure extends protection in exposed or damp environments. Single-phase operation with a compact footprint enables service upgrades without moving or enlarging existing enclosures, reducing space requirements and improving heat management. This design minimizes space, improves heat management, and reduces panel width requirements, enabling easier retrofits in tight spaces. Integrated surge protection prevents surges from damaging connected loads, reducing downtime and maintenance costs. Customers in storm-prone regions or with sensitive electronics benefit from improved protection and reliability. Installation compatibility and handling considerations are supported by a manageable 36.5 lb weight and standard mounting configurations, aiding quicker field deployments. Cost efficiency is enhanced by fewer components, faster wiring, and easier compliance testing, delivering a lower total cost of ownership over the service life.
Get a Quick Quote for a Eaton EMDST24B200BTS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EMDST24B200BTS?
Enquire Now
FAQs
Plan for a compliant installation by shutting power, verifying panel rating, and securing the all-in-one unit to the enclosure. Follow manufacturer torque specs for lugs and terminals, connect the service conductors to the meter-side and load-side terminals, and verify proper bonding. Use listed wiring methods and observe local codes for outdoor or indoor mounting.
EMDST24B200BTS is a single-phase, 200 A meter breaker with integrated main protection and surge suppression. It supports residential service feeds and provides a main disconnect for up to a 200 A load, reducing the need for separate disconnect switches. The unit carries UL Listed certification confirming compliance with applicable electrical safety standards.
Yes, the EMDST24B200BTS is suitable for outdoor installations thanks to its NEMA 3R enclosure. It withstands rain, snow, and temperature variations when mounted with proper clearances and a compliant mounting surface. Always follow local electrical code requirements and manufacturer guidelines to maintain performance and reliability.
The unit is UL Listed, ensuring compliance with recognized safety standards for electrical equipment. It features a rugged NEMA 3R enclosure for residential outdoor or damp-area use and is designed for single-phase service. Verify compatibility with local regulations and utility requirements when planning a service upgrade.
The enclosure measures 4.94 in depth, 25.5 in height, and 14.44 in width, with a unit weight of 36.5 lb. These specs aid in planning mounting clearance and service access in utility rooms or outdoor installations. Always confirm site clearances and manufacturer recommendations before installation.
