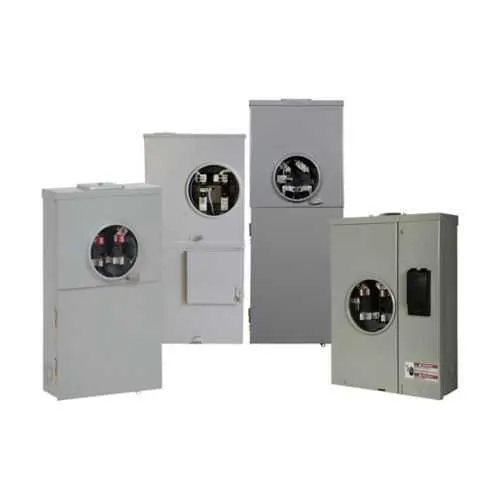

Eaton EMDSTB100BTS Residential Meter Breaker - UL Listed
Part Number: EMDSTB100BTS
Quick Summary
Eaton residential meter breaker protects single-phase electrical service by combining main protection and surge suppression for homes and commercial installations. Engineered to reduce nuisance trips and simplify wiring, it lowers troubleshooting time for installers in the field. Its UL Listed safety certification and NEMA 3R enclosure rating ensure reliable performance in outdoor or recessed spaces. Designed for electrical contractors, distributors, and facility managers, it supports compliant, efficient protection for residential electrical panels.
Product Information
Extended Description
EMDSTB100BTS Eaton: Eaton meter breaker, 100A, main breaker, Nema 3R, Single phase, Surge Protection
Product Name
Eaton residential meter breaker
Catalog Number
EMDSTB100BTS
UPC
786689531089
Product Length/Depth
4.94 in
Product Height
25.5 in
Product Width
14.44 in
Product Weight
36.5 lb
Certifications
UL Listed
Type
All-in-ones
Enclosure
NEMA 3R
Amperage Rating
100 A
Phase
Single-phase
Feature: All-in-one design combines a 100 A main breaker with surge protection. Business Impact: Reduces wiring complexity, minimizes cabinet space, and lowers miswiring risk for installers. Application: Ideal for residential meter and panel configurations in single-phase services where compact, reliable protection is needed. Feature: 100 A amperage rating supports typical home loads while maintaining safety margins. Business Impact: Fewer substitutions or add-on devices, cutting material costs and installation time. Application: Great for new builds and retrofits in single-phase service environments seeking robust protection. Feature: NEMA 3R enclosure provides weather resistance for outdoor or semi-exposed installations. Business Impact: Reduces enclosure weatherproofing work and service calls due to environmental exposure. Application: Suitable for exterior meter sockets, garages, or outdoor panels in residential and light commercial projects. Feature: UL Listed safety certification ensures compliance and trustworthy performance. Business Impact: Improves inspections and approvals, lowering risk of non-compliance. Application: Essential for contractor-grade installations in regulated markets. Feature: Single-phase operation aligns with standard residential systems and supports seamless integration. Business Impact: Streamlines design, procurement, and installation workflows. Application: Fits 120/240 V service for households, multifamily buildings, and small commercial applications.
Get a Quick Quote for a Eaton EMDSTB100BTS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EMDSTB100BTS?
Enquire Now
FAQs
The EMDSTB100BTS is designed for straightforward replacement or retrofit in standard single-phase service panels. It integrates a main breaker with surge protection, reducing the need for separate devices. Verify panel compatibility with Eaton catalogs, ensure enclosure clearance for a NEMA 3R rated outdoor or semi-outdoor install, and follow local codes during integration to achieve a code-compliant, reliable protection solution.
This unit provides a 100 A amperage rating for main protection within a single-phase system and is UL Listed for electrical safety. The all-in-one design includes surge protection to guard against transient overvoltages commonly encountered in residential service entrances. Use within 120/240 V circuits ensures compatibility with typical home electrical loads while simplifying procurement and installation.
Yes. The EMDSTB100BTS features a NEMA 3R enclosure, which is weather-resistant and suitable for exterior or semi-exposed locations such as outdoor meter sockets, garages, or entry panels. Its all-in-one configuration reduces material handling and rhythmic protection needs, making it a strong option for outdoor service entrances in single-phase applications.
The product carries UL Listed safety certification, a critical standard for electrical safety compliance in most markets. The NEMA 3R enclosure rating further assures weather resistance for exterior installations. These certifications simplify inspections, support reliable performance, and help meet regulatory requirements for residential and light commercial projects.
The all-in-one design minimizes the number of separate components, reducing inventory, installation time, and potential fault points. With integrated surge protection and a robust enclosure, ongoing maintenance tends to be lower than managing multiple devices. The consolidated solution also offers predictable lifecycle costs and quicker project completion, contributing to a favorable total cost of ownership for builders and maintenance teams.
