Eaton EMR-3MP0-2A0HB1-1 Motor Relay - IEC61850 over Ethernet

Part Number: EMR-3MP0-2A0HB1-1
EMR-3MP0-2A0HB1-1
Manufacturer
Eaton
Part number
EMR-3MP0-2A0HB1-1
Category

Quick Summary

Eaton EMR-3MP0-2A0HB1-1 motor relay is designed for integrated motor protection and control in industrial Ethernet environments. Operators often struggle to harmonize protective relays with modern communication protocols while keeping wiring manageable. Compliances are listed as contact manufacturer, so verify specifics with Eaton; however, the unit supports IEC 61850 over Ethernet, Modbus TCP and DNP3 TCP for seamless substation and plant integration. This combination enables scalable, interoperable control across automation architectures. With 4 digital inputs, 4 digital outputs, 1 analog output, and 5/1A phase current options, this relay delivers quicker fault isolation, reduced wiring complexity, and simpler upgrades. The projection-mount design and MP Terminal Conv compatibility further streamline field installation and long-term reliability.

Product Information

Extended Description

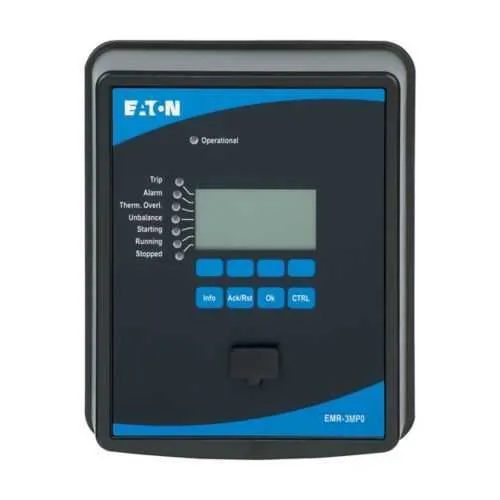

EMR-3MP0-2A0HB1-1 Eaton: Eaton, EMR-3MP0-2, current only motor relay, 5/1A PH and GND, 4I, 4O, 1AO , IRIG-B, IEC61850 or Modbus TCP or DNP3 TCP/UDP over Ethernet RJ45, Conf. coat, Projection mount, with MP Term Conv
Product Name
Eaton motor relay
Catalog Number
EMR-3MP0-2A0HB1-1
UPC
786689239466
Product Length/Depth
14 in
Product Height
11.5 in
Product Width
11.3 in
Product Weight
12.6 lb
Compliances
Contact Manufacturer
Application
Motor
Type
Motor relay
Analog inputs
0
Phase current
5A, 1A
Analog outputs
1
Digital inputs
4
Digital outputs
4
I/O options
IRIG-B URTD Interface
IEC 61850
over Ethernet RJ-45
Modbus / DNP3 TCP
over Ethernet RJ-45
Sensing inputs
Current Protection and Metering
Zone selective interlocking
0
Frequency rating
50/60 Hz
Mounting method
Projection
EMR-3MP0 V3.5.c 43511 device model and instruction books EMR-3MP0 V3.5.c 43511 device model and instruction books EMR-3MP0 Modbus® register maps EMR-3MP0 Modbus® register maps EMR-3MP0 technical data MP-3000 to EMR-3MP0 Installation Instructions MP-3000 to EMR-3MP0 Installation Instructions EMR-3MP0 motor protection relay instruction book Interfacing with an Eaton E-Series Relay, Step 6: Front Panel Navigation Interfacing with an Eaton E-Series Relay, Step 6: Front Panel Navigation Interfacing with an Eaton E-Series Relay, Step 6: Front Panel Navigation Interfacing with an Eaton E-Series Relay, Step 6: Front Panel Navigation Interfacing with an Eaton E-Series Relay, Step 6: Front Panel Navigation Interfacing with an Eaton E-Series Relay, Step 6: Front Panel Navigation Eaton Specification Sheet - EMR-3MP0-2A0HB1-1
Feature → Business Impact → Application: 4 digital inputs, 4 digital outputs, 1 analog output (4I/4O/1AO) provide flexible local control and monitoring, reducing panel wiring and enabling compact control schemes for motors and drives in packaging, water treatment, and metal fabrication. Application: motor protection and process automation. Feature → Business Impact → Application: 5/1A phase current and current-protection/metering sensing inputs enable precise protection settings and energy accounting, improving reliability while lowering nuisance trips; Application: energy management and proactive maintenance in continuous-process industries. Feature → Business Impact → Application: IEC 61850 over Ethernet RJ45, Modbus TCP, and DNP3 TCP enable interoperable communication with modern SCADA and substation equipment, shortening integration time and enabling remote diagnostics; Application: plant-wide control rooms and substations. Feature → Business Impact → Application: IRIG-B URTD interface and time synchronization support enhance interlock timing and event sequencing, reducing miscoordination during fast protection events; Application: zone-selective interlocking and coordinated protection. Feature → Business Impact → Application: Projection mounting, conformal coating, and MP Terminal Conv compatibility simplify installation, reduce maintenance costs, and support rugged field deployment in harsh environments; Application: retrofit projects and new installations in harsh industrial settings.

Get a Quick Quote for a Eaton EMR-3MP0-2A0HB1-1

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton EMR-3MP0-2A0HB1-1? Enquire Now

FAQs

Follow Eaton’s MP-3000 to EMR-3MP0 installation instructions, using the MP Terminal Conv for wiring and the projection-mount fit for installation. Connect 4 digital inputs, 4 digital outputs, and 1 analog output as required by your motor protection scheme. Configure communication addresses for IEC 61850, Modbus TCP or DNP3 TCP, and ensure proper 50/60 Hz operation. This setup reduces wiring complexity and accelerates commissioning in controlled environments.
Key specs include 5A or 1A phase current ratings, 4I/4O digital I/O, 1AO analog output, and 50/60 Hz frequency. The unit provides current protection and metering inputs to support reliable protection decisions. It also supports IRIG-B timing and Ethernet-based communication (IEC 61850, Modbus TCP, DNP3 TCP), enabling seamless integration with PLCs and SCADA systems.
Yes, the EMR-3MP0-2A0HB1-1 is designed for industrial motor control with projection mounting and protective features. While conformal coating and mounting robustness aid reliability, confirm environmental ratings and any ruggedization requirements directly with Eaton for your exact site conditions. Its modular I/O and Ethernet communications support scalable, fault-tolerant control in challenging facilities.
The product data indicates compliances require manufacturer confirmation. To meet regulatory requirements, verify with Eaton whether CE, SIL, IP ratings, or other certifications are applicable to your region and application. While IEC 61850, Modbus TCP, and DNP3 TCP are supported, explicit certification stamping should be confirmed before procurement for mission-critical installs.
The integrated protection and multi-protocol communications reduce field wiring, shorten commissioning times, and simplify diagnostics, contributing to lower installation and maintenance costs. With built-in current protection and metering, operators gain better fault isolation and energy usage visibility, improving uptime and long-term system reliability in continuous-process environments.
