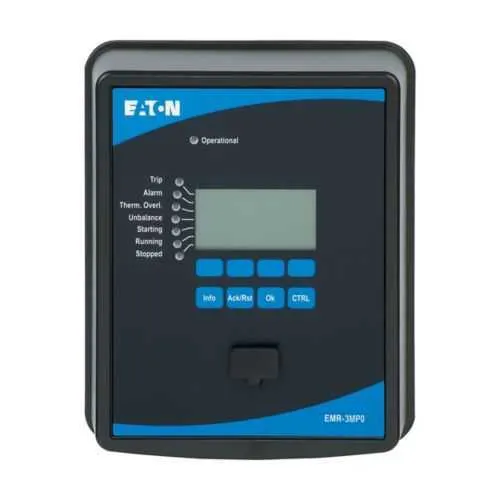

Eaton EMR-3MP0-2A0TB1-1 Motor Relay - IRIG-B URTD
Part Number: EMR-3MP0-2A0TB1-1
Quick Summary
Eaton motor relay provides protection and control for motors in industrial drives and automation networks. For engineers and maintenance teams, integration headaches and inconsistent monitoring across devices are a common pain point. Certifications like CE, SIL, and IP ratings are not listed in the data and should be confirmed with Eaton to ensure compliance in your region. This device supports Ethernet and RS-485 communication, time synchronization with IRIG-B URTD, and robust field wiring with current protection and metering. By combining flexible I/O with modular diagnostics, it helps reduce downtime and simplifies commissioning for OEMs and end-users while supporting scalable automation strategies.
Product Information
Extended Description
EMR-3MP0-2A0TB1-1 Eaton: Eaton, motor relay, 5A, 1A, Motor,over RS-485, over Ethernet RJ-45, over Ethernet RJ-45, Conformal Coated Circuit Boards, 19-300Vdc, 40-250Vac, 50/60 Hz, Projection, Current Protection and Metering, IRIG-B,URTD Interface
Product Name
Eaton motor relay
Catalog Number
EMR-3MP0-2A0TB1-1
UPC
786689239480
Product Length/Depth
9.06 in
Product Height
9.62 in
Product Width
7.82 in
Product Weight
6.82 lb
Compliances
Contact Manufacturer
Application
Motor
Type
Motor relay
Analog inputs
0
Phase current
5A, 1A
Analog outputs
1
Digital inputs
4
Digital outputs
4
I/O options
IRIG-B URTD Interface
IEC 61850
over Ethernet RJ-45
Modbus / DNP3 RTU
over RS-485
Modbus / DNP3 TCP
over Ethernet RJ-45
Sensing inputs
Current Protection and Metering
Zone selective interlocking
0
Frequency rating
50/60 Hz
Mounting method
Projection
PowerPort-E 4.71
PowerPort-E 4.71
EMR-3MP0 control screen template
EMR-3MP0 control screen template
EMR-3MP0 technical data
MP-3000 to EMR-3MP0 Installation Instructions
MP-3000 to EMR-3MP0 Installation Instructions
EMR-3MP0 motor protection relay instruction book
Interfacing with an Eaton E-Series Relay, Step 5: Monitoring with PowerPort-E
Interfacing with an Eaton E-Series Relay, Step 5: Monitoring with PowerPort-E
Interfacing with an Eaton E-Series Relay, Step 5: Monitoring with PowerPort-E
Interfacing with an Eaton E-Series Relay, Step 5: Monitoring with PowerPort-E
Interfacing with an Eaton E-Series Relay, Step 5: Monitoring with PowerPort-E
Interfacing with an Eaton E-Series Relay, Step 5: Monitoring with PowerPort-E
Eaton Specification Sheet - EMR-3MP0-2A0TB1-1
Feature: Built‑in protection and metering (5A, 1A current protection) with four digital inputs and four outputs, plus one analog input and one analog output. Business impact: Delivers rapid fault detection, precise energy usage data, and tighter control loops, reducing unplanned downtime and enabling tighter MTTR. Application: Ideal for motor protection in conveyors, pumps, and OEM drive assemblies where reliable sensing and coordinated trip signals are critical. Feature: Rich communication options: Modbus/DNP3 RTU over RS-485, Modbus TCP over Ethernet RJ-45, IEC 61850 over Ethernet. Business impact: Enables multi-vendor SCADA integration, easier firmware updates, and centralized monitoring. Application: Plant-wide automation and retrofit projects in utility, water/wastewater, and manufacturing. Feature: Time synchronization and interface options: IRIG-B URTD Interface ensures accurate time stamping. Business impact: Improves event correlation, logging accuracy, and protection coordination across devices. Application: Data centers, power plants, and large motor banks requiring precise sequencing. Feature: Design and ruggedness: Conformal coated circuit boards, wide voltage range 19-300 Vdc and 40-250 Vac, 50/60 Hz; projection mounting. Business impact: Reduces environmental risk on harsh factory floors, simplifies installation, and supports retrofit. Application: OEM machinery and field installations in challenging environments. Feature: Installation, support, and compliance: Documentation set includes installation instructions, manuals, and PowerPort-E compatibility; compliances require confirmation with manufacturer. Business impact: Streamlines commissioning, reduces integration risk, and provides long‑term ROI through diagnostics. Application: Deployment in industrial automation projects with strict maintenance and safety requirements.
Get a Quick Quote for a Eaton EMR-3MP0-2A0TB1-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EMR-3MP0-2A0TB1-1?
Enquire Now
FAQs
Plan for projection mounting and allocate space for four digital inputs and four outputs, plus one analog in and one analog out. Ensure supply within 19-300 Vdc or 40-250 Vac and provide proper isolation for RS-485 and Ethernet RJ-45 connections. Use the provided MP-3000 to EMR-3MP0 installation instructions during retrofits.
The relay provides current protection of 5A and 1A with 4 digital inputs, 4 digital outputs, 1 analog input, and 1 analog output. It operates at 50/60 Hz and supports a wide voltage range, enabling precise monitoring and control in motor drives, conveyors, pumps, and OEM equipment with integrated diagnostics.
Yes. It supports Modbus TCP over Ethernet RJ-45 and IEC 61850 over Ethernet, along with RS-485 Modbus/DNP3 RTU. This facilitates seamless integration with SCADA, DCS, and multi-vendor control architectures, reducing engineering time and improving data visibility across the plant.
Compliances are listed as 'Contact Manufacturer' in the datasheet, so you should verify CE, SIL, and IP ratings directly with Eaton for your region and application. Confirmation is essential for safety-critical environments and to meet regulatory requirements in power, water, and manufacturing industries.
The device enables centralized monitoring via RS-485 and Ethernet, time synchronization via IRIG-B URTD, and integration with PowerPort-E for diagnostics. These features reduce maintenance cycles, minimize downtime, and improve fault resolution, delivering faster MTBF improvements and a clearer path to total cost of ownership savings.
