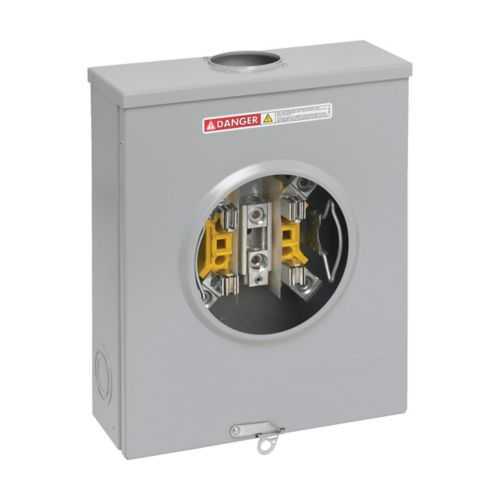

Eaton EN20L43GRST Meter Socket - UL Listed, 200A Ringless
Part Number: EN20L43GRST
Quick Summary
Eaton EN20L43GRST Meter Socket is a high-capacity meter socket designed for 200 A service entrances in commercial and light-industrial facilities. Engineers often face installation delays and compatibility gaps when mating ringless, four-jaw meters to side-mount enclosures, leading to costly field modifications. This unit combines rugged steel construction with ANSI 61 paint finish to withstand harsh environments while delivering consistent performance. The UL Listed certification, sturdy 1-pole, 3-wire configuration, and side-mount design support safe, code-compliant metering in busy utility rooms. By integrating AW Hub top provision and standard #6 AWG-350 KCMIL lugs, procurement and installation become faster, with fewer adapters and less rework for facilities teams.
Product Information
Extended Description
EN20L43GRST Eaton: Eaton B-Line series single meter sockets, 200 A, Four-jaw, Ringless, 3, ANSI 61 paint, Steel, Side, 1 pole, Three-wire, #6 AWG-350 KCMIL, #6 AWG-350 KCMIL, None
Product Name
Eaton B-Line series single meter sockets
Catalog Number
EN20L43GRST
UPC
782051314878
Product Length/Depth
5.25 in
Product Height
15.125 in
Product Width
12.25 in
Product Weight
14.278 lb
Certifications
UL Listed
Amperage Rating
200A
Material
Steel
Finish
ANSI 61 paint
Number of jaws
Four-jaw
Number of wires
3 Three-wire
Bypass
None
Mounting method
Side
Number of poles
1
Line lug size
#6 AWG-350 KCMIL
Load lug size
#6 AWG-350 KCMIL
Cover/door type
Ringless
Special features
AW Hub top provision
Degree of protection
3
Feature: 200 A, four-jaw, ringless meter socket. Business Impact: Provides secure, low-resistance terminations with faster-wiring, reducing commissioning time and field calls. Application: Ideal for commercial and light-industrial service entrances where dependable metering is critical. Feature: Side mounting with a 1-pole, 3-wire configuration. Business Impact: Facilitates clean integration into tight meter enclosures and simplifies conductor routing, lowering installation labor. Application: Retrofit projects and new builds that require straightforward side-fed metering connections. Feature: Steel construction finished in ANSI 61 paint. Business Impact: Delivers durable protection against corrosion and environmental wear, extending service life. Application: Demanding environments such as warehouses, outdoor meter pits, and utility rooms where cosmetic and structural longevity matters. Feature: Line and load lug sizes rated to #6 AWG-350 KCMIL. Business Impact: Provides capacity for common service conductors, enabling direct wiring without adapters and reducing material cost. Application: Primary feeders and meter tails in compact enclosures. Feature: AW Hub top provision. Business Impact: Enables optional top-conduit or accessory mounting without rewiring, speeding future upgrades. Application: Projects planning expansion or future metering accessory installs. Feature: UL Listed certification. Business Impact: Confirms compliance with safety standards, easing procurement and installation approvals. Application: Any facility requiring UL-listed meter sockets for electrical distribution.
Get a Quick Quote for a Eaton EN20L43GRST
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EN20L43GRST?
Enquire Now
FAQs
To install EN20L43GRST, mount the unit in a side-entry enclosure, then connect conductors to the 1-pole, 3-wire configuration using #6 AWG-350 KCMIL line and load lugs. The four-jaw, ringless design simplifies alignment and reduces risk of mis-wiring. Ensure UL Listed compliance is verified and protective covers are secured before energizing.
EN20L43GRST is rated for 200 A and features four-jaw connections for 3-wire, single-pole operation. Line and load lugs accept #6 AWG through 350 kcmil conductors, supporting common service feeders and meter tails. The ANSI 61 paint finish and steel housing provide durability, while UL Listed certification confirms safe operation and code compliance.
Yes. The 200 A rating, side-mount configuration, and ringless design make EN20L43GRST appropriate for commercial buildings, retail spaces, and light-industrial facilities. Its rugged steel construction and UL Listed status help meet prevailing electrical codes, while the top provision for AW Hub accessories supports future expansion without rewiring.
EN20L43GRST carries UL Listed certification, ensuring compliance with safety and performance standards for low-voltage metering equipment. It also uses ANSI 61 paint for durable surface finish, and a degree of protection specification within the catalog data. These certifications simplify procurement and regulatory approval for utility rooms and meter banks.
With a ringless design, durable steel construction, and ANSI 61 finish, EN20L43GRST minimizes corrosion risk and simplifies cleaning, reducing ongoing maintenance. The large-lug capacity and side-mount installation shorten commissioning time, lowering labor costs. Over the life of a facility, these factors translate to lower total cost of ownership and fewer service interruptions.
