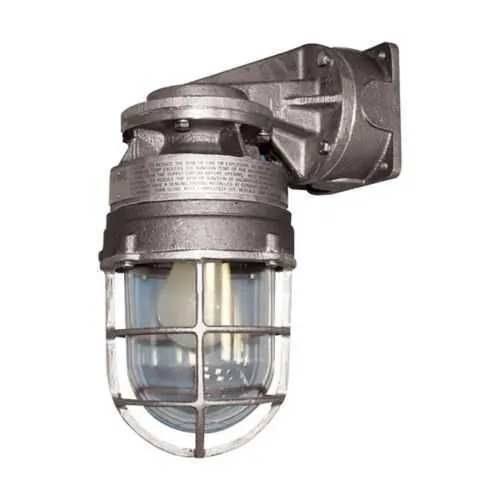

Eaton EPB46A Pauluhn EP globe and guard - IP66 Rated
Part Number: EPB46A
Quick Summary
Eaton Crouse-Hinds EP globe and guard provides robust hazardous-location lighting for wall-mounted fixtures. In harsh industrial environments, reliability and regulatory compliance are a constant challenge, with failures costing downtime and safety risk. This EPB46A fixture meets NEC and CEC requirements while offering NEMA 4X enclosure and IP66 protection to resist dust, water, and impact. The copper-free aluminum guard minimizes corrosion and maintenance in corrosive atmospheres, and the tempered glass globe withstands vibrations common in plant environments. Designed for 250 VAC operation at 50/60 Hz with two 27-watt incandescent lamps, it delivers predictable performance, simplifies replacement cycles, and supports safe, compliant illumination across demanding facilities.
Product Information
Extended Description
EPB46A Eaton: Eaton Crouse-Hinds series Pauluhn EP globe and guard, Medium base, 50/60 Hz, Clear tempered glass globe, With cast copper-free aluminum guard, Incandescent, Copper-free aluminum, A-19 max. lamp size, Wall mount, 250 Vac, 100W
Product Name
Eaton Crouse-Hinds series Pauluhn EP globe and guard
Catalog Number
EPB46A
UPC
662276390973
Product Length/Depth
9.38 in
Product Height
12.25 in
Product Width
5.75 in
Product Weight
9.3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Copper-free aluminum
Mounting Method
Wall
Wattage
2 x 27W
Lamp type
Incandescent
Lamp size - max
A-19
Base type
Medium
Guard type
With cast guard
Voltage rating
250 Vac
Frequency rating
50/60 Hz
Globe color
Clear
Globe material
Tempered glass
Guard material
Copper-free aluminum
Crouse-Hinds series Pauluhn EP Fluorescent catalog page
IF LBL1414 - EP Fluorescent - Wall Mount
Eaton Specification Sheet - EPB46A
Feature: Hazardous-location rating Class I, Division 1 & 2 is built into the EPB46A, providing NEC/CEC compliant performance in dangerous environments. Business Impact: reduces regulatory risk and downtime by ensuring install-ready protection. Application: use in oil refineries and chemical processing plants where hazardous atmospheres exist. Feature: IP66 and NEMA 4X protection shield against dust, water, and harsh wash-downs. Business Impact: extends service intervals and lowers maintenance costs in rugged facilities. Application: exterior walls and wash-down areas in industrial plants. Feature: Copper-free aluminum guard delivers corrosion resistance without compromising strength. Business Impact: lowers corrosion-related maintenance and replacement costs. Application: chemical processing lines, coastal facilities, and other aggressive environments. Feature: Tempered glass globe provides impact resistance and long service life. Business Impact: reduces glass breakage and replacement frequency. Application: wall-mounted luminaires in vibration-prone spaces. Feature: 2 x 27W incandescent lamps with 250 VAC supply and 50/60 Hz rating. Business Impact: familiar, cost-effective illumination with straightforward maintenance. Application: legacy lighting retrofits and new hazardous-location installations. Feature: Wall mounting and compatible with Pauluhn EP series housing for quick installation. Business Impact: lowers installation labor and downtime. Application: retrofit projects and new builds in industrial settings. These features collectively support safer operations, predictable maintenance, and reliable performance in demanding environments.
Get a Quick Quote for a Eaton EPB46A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPB46A?
Enquire Now
FAQs
EPB46A is designed for wall mounting with a copper-free aluminum guard and a tempered glass globe. Installers should follow NEC guidelines for Class I, Division 1/2 environments, ensuring proper enclosure sealing and a secure wall mounting pattern. The unit supports standard Pauluhn EP series mounting methods, facilitating quick retrofits or new installations in hazardous locations.
The EPB46A operates at 250 VAC with a 50/60 Hz frequency rating and uses two 27-watt incandescent lamps. The fixture is designed for A-19 max lamp size, with a medium base. This combination provides familiar lighting performance and straightforward maintenance in industrial settings.
Yes. The EPB46A carries NEC hazardous-location ratings for Class I Division 1 and Division 2, aligning with NEC/CEC standards. This ensures compliant operation in both highly hazardous and less severe zones, making it suitable for refineries, chemical plants, and other industrial facilities requiring rugged, code-compliant luminaires.
The EPB46A features IP66 ingress protection and a NEMA 4X enclosure rating, plus NEC/CEC compliance for hazardous locations. It is built with a copper-free aluminum guard and tempered glass globe, designed to withstand dust, water, and mechanical stress in challenging environments.
With a copper-free aluminum guard, tempered glass globe, and robust IP66/NEMA 4X protection, the fixture offers extended service life in demanding facilities. Its 2×27W incandescent lamps provide dependable output, while the wall-mount design simplifies installation, reduces downtime, and supports predictable maintenance planning in industrial operations.
