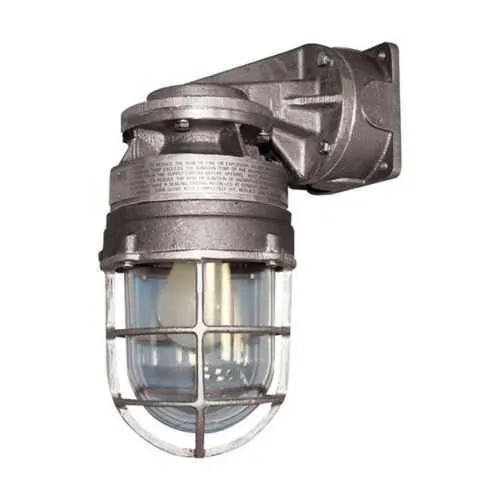

Eaton EPB47A Globe & Guard - IP66 Rated
Part Number: EPB47A
Quick Summary
Eaton Crouse-Hinds series Pauluhn EP globe and guard protects hazardous-location lighting for wall-mounted, 250V, 200W applications. Engineers often grapple with corrosion, dust ingress, and service downtime in harsh environments. This fixture carries NEC/CEC compliance with IP66 ingress protection and NEMA 4X ruggedness, plus hazardous-location Class I Division 1 & 2 ratings for reliable operation. With a copper-free aluminum guard and tempered glass globe, it delivers durable performance while minimizing maintenance and replacement costs for contractors and specifiers alike.
Product Information
Extended Description
EPB47A Eaton: Eaton Crouse-Hinds series Pauluhn EP globe and guard, Medium base, 50/60 Hz, Clear tempered glass globe, With cast copper-free aluminum guard, Incandescent, Copper-free aluminum, A-21 max. lamp size, Wall mount, 250 Vac, 200W
Product Name
Eaton Crouse-Hinds series Pauluhn EP globe and guard
Catalog Number
EPB47A
UPC
662276391017
Product Length/Depth
9.38 in
Product Height
12.25 in
Product Width
5.75 in
Product Weight
10.5 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Copper-free aluminum
Mounting Method
Wall
Wattage
200W
Lamp type
Incandescent
Lamp size - max
A-21
Base type
Medium
Guard type
With cast guard
Voltage rating
250 Vac
Frequency rating
50/60 Hz
Globe color
Clear
Globe material
Tempered glass
Guard material
Copper-free aluminum
Crouse-Hinds series Pauluhn EP Fluorescent catalog page
IF LBL1414 - EP Fluorescent - Wall Mount
Eaton Specification Sheet - EPB47A
Copper-free aluminum guard provides long-term corrosion resistance, reducing maintenance cost in chemical and mining environments, while the tempered glass globe offers rugged protection against impact and environmental exposure. The IP66 enclosures and NEMA 4X rating deliver reliable ingress protection against dust and water, enabling safe operation in demanding facilities; this translates to lower downtime and higher asset uptime. The EPB47A supports a 200W incandescent lamp with a medium base, up to A-21 size, at 250 VAC and 50/60 Hz, enabling straightforward lamp replacement and compatibility with standard supply chains. Wall-mount design simplifies retrofits and new installs in constrained spaces, while a cast copper-free aluminum guard enhances mechanical strength without compromising weight or installation ease. NEC/CEC compliance, along with Class I Division 1 & 2 hazard ratings, provides necessary regulatory assurance for rigorous industrial environments, minimizing project risk. Downloads including installation instructions and specifications aid quick procurement, accurate sizing, and proper mounting for quick turn-key deployment.
Get a Quick Quote for a Eaton EPB47A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPB47A?
Enquire Now
FAQs
EPB47A is a wall-mount lighting fixture designed for Class I, Division 1 & 2 environments. Plan for a 250 VAC supply, up to 200W incandescent lamp, and a medium-base lamp; ensure proper enclosure sealing to maintain IP66/NEMA 4X protection and follow NEC/CEC guidelines during mounting and wiring.
Yes. The EPB47A is rated for Hazardous/Classified Locations with NEC hazardous ratings of Class I Division 1 and Division 2, and it provides IP66 ingress protection along with a NEMA 4X enclosure, making it appropriate for demanding industrial environments.
The assembly is designed for incandescent operation up to 200W with a medium base lamp and A-21 maximum lamp size. This supports common incandescent options and simplifies lamp replacement in harsh locations.
The EPB47A measures 9.38 inches in length, 12.25 inches in height, and 5.75 inches in width, with an approximate weight of 10.5 pounds, aiding accurate layout and mounting considerations in restricted spaces.
Reference the Eaton Crouse-Hinds Pauluhn EP EPB47A catalog page, installation sheets, and the official specification sheet hosted by Eaton to ensure correct mounting, wiring, and compliance in hazardous locations.
