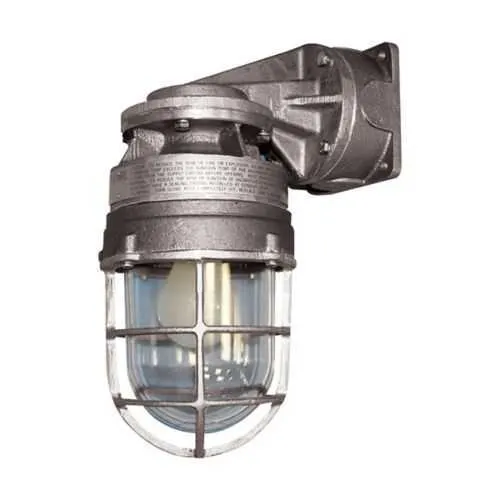

Eaton EPB48A Globe & Guard - IP66
Part Number: EPB48A
Quick Summary
The Eaton EPB48A Globe & Guard is a rugged wall-mounted lighting fixture designed for hazardous locations. Facilities often struggle with corrosion, moisture exposure, and regulatory compliance in tough environments; this unit minimizes downtime by using a copper-free aluminum guard and tempered glass globe that withstands demanding conditions. It carries critical safeguards for safety and reliability, including NEC/CEC compliance and specialized hazardous-location ratings. With a robust IP66 and NEMA 4X enclosure, it remains durable against washdowns and harsh weather. For engineering teams, this translates to lower maintenance cycles, predictable performance, and a safer work environment while maintaining compatibility with standard incandescent lamps and 250 VAC service.
Product Information
Extended Description
EPB48A Eaton: Eaton Crouse-Hinds series Pauluhn EP globe and guard, Medium base, 50/60 Hz, Clear tempered glass globe, With cast copper-free alum guard, Incandescent, Copper-free alum, A-19 max. lamp size, Wall mount, 30° angled reflector, 250 Vac, 100W
Product Name
Eaton Crouse-Hinds series Pauluhn EP globe and guard
Catalog Number
EPB48A
UPC
662276391031
Product Length/Depth
9.38 in
Product Height
12.25 in
Product Width
5.75 in
Product Weight
12 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Copper-free aluminum
Mounting Method
Wall
Reflector type
30° angle
Wattage
2 x 27W
Lamp type
Incandescent
Lamp size - max
A-19
Base type
Medium
Guard type
With cast guard
Voltage rating
250 Vac
Frequency rating
50/60 Hz
Globe color
Clear
Globe material
Tempered glass
Guard material
Copper-free aluminum
Crouse-Hinds series Pauluhn EP Fluorescent catalog page
IF LBL1414 - EP Fluorescent - Wall Mount
Eaton Specification Sheet - EPB48A
Feature → Business Impact → Application: Copper-free aluminum guard and tempered glass globe provide corrosion resistance and impact protection, extending fixture life in harsh environments; reduces replacement frequency and maintenance costs while supporting cleanability in washdown processes in chemical plants and mining facilities. Application: Wall-mounted illumination for Hazardous/Classified Locations with IP66/NEMA 4X protection ensures reliable operation in wet, dusty, and explosive atmospheres, meeting NEC/CEC requirements and installation in Class I, Division 1 and 2 areas. Feature → 2 x 27W incandescent lamp capability with A-19 max lamp size and 250 VAC operation delivers familiar lighting quality and quick retrofits; offers predictable energy use and easy sourcing of replacement lamps in remote facilities. Application: Industrial facilities seeking proven Pauluhn EP-series performance with minimal downtime and straightforward maintenance.
Get a Quick Quote for a Eaton EPB48A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPB48A?
Enquire Now
FAQs
Yes. The EPB48A is designed for wall mounting in hazardous and classified locations. It uses a medium base and supports 2x27W incandescent lamps with 250 VAC, 50/60 Hz. The installation instructions (IF LBL1414 EP Fluorescent - Wall Mount) provide guidance for safe mounting, clearances, and wiring to ensure compliant operation in Class I, Division 1 & 2 environments.
The EPB48A supports incandescent lighting with a total wattage of 2 x 27W and an A-19 maximum lamp size. It operates at 250 VAC and 50/60 Hz. This preserves familiar lighting performance while maintaining compatibility with standard replacement lamps and available glass globe options.
Yes. The fixture is rated for Hazardous/Classified Locations with NEC/CEC compliance and NEC hazardous ratings of Class I, Division 1 and Class I, Division 2. It also carries a NEMA 4X rating and IP66 ingress protection, making it appropriate for demanding hazardous environments.
Maintenance favors durability: the EPB48A uses a tempered glass globe and copper-free aluminum guard, which resist corrosion and impact. The guard and globe are replaceable components, simplifying field maintenance. Regular checks for seal integrity and lamp replacement minimize downtime in washdown or dusty environments.
With IP66 and NEMA 4X protection, the EPB48A reduces weather and washdown-related failures, lowering maintenance costs. Wall-mount installation frees ceiling space, while the robust copper-free aluminum guard and bright, reliable incandescent lighting minimize downtime and extend service intervals, delivering better total cost of ownership in mining, chemical, and manufacturing settings.
