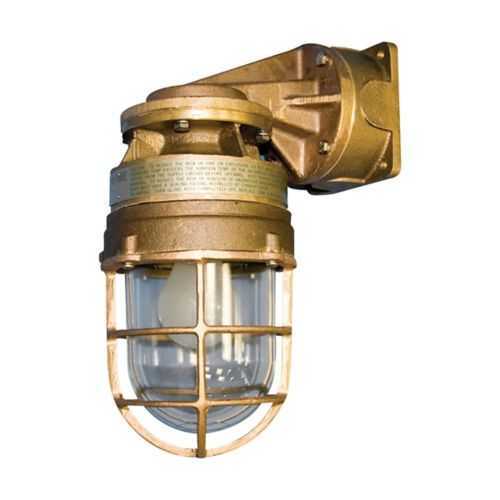

Eaton EPB48B Globe & Guard - IP66, 4X Hazardous Locations
Part Number: EPB48B
Quick Summary
Eaton EPB48B globe and guard provides rugged lighting protection for hazardous industrial locations. In harsh environments, downtime and noncompliant fixtures drive maintenance costs and safety risk. This luminaire features IP66 ingress protection, a NEMA 4X enclosure, and NEC hazardous-area ratings (Class I, Division 1 and 2) to support stringent codes. Designed for wall-mounted Pauluhn EP installations, it pairs a tempered glass globe with a brass guard to deliver long service life and predictable maintenance budgets, while supporting standard industrial lighting practices and quick lamp replacement. Engineered for reliability in chemical plants, steel mills, and other demanding settings, the EPB48B also aligns with industry-standard dimming and control practices, enabling integration with existing control systems and safety procedures. It provides a cost-effective, future-proof lighting solution for operations requiring compliant, rugged illumination.
Product Information
Extended Description
EPB48B Eaton: Eaton Crouse-Hinds series Pauluhn EP globe and guard, Medium base, 50/60 Hz, Clear tempered glass globe, With cast brass guard, Incandescent, Brass, A-19 max. lamp size, Wall mount, 30° angled reflector, 250 Vac, 100W
Product Name
Eaton Crouse-Hinds series Pauluhn EP globe and guard
Catalog Number
EPB48B
UPC
662276391048
Product Length/Depth
9.38 in
Product Height
12.25 in
Product Width
5.75 in
Product Weight
30 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Wall
Reflector type
30° angle
Wattage
2 x 27W
Lamp type
Incandescent
Lamp size - max
A-19
Base type
Medium
Guard type
With cast guard
Voltage rating
250 Vac
Frequency rating
50/60 Hz
Globe color
Clear
Globe material
Tempered glass
Guard material
Brass
Crouse-Hinds series Pauluhn EP Fluorescent catalog page
IF LBL1414 - EP Fluorescent - Wall Mount
Eaton Specification Sheet - EPB48B
Feature: IP66 ingress protection and NEMA 4X enclosure → Benefit: Protects against dust, moisture, and corrosion in harsh environments, reducing unplanned downtime and extending fixture life. Application: Hazardous locations such as chemical plants and dusty industrial floors benefit from compliant, durable illumination without frequent replacements. Feature: Brass cast guard and tempered glass globe → Benefit: Superior impact resistance and chemical compatibility for long service life, lowering maintenance frequency and total cost of ownership. Application: Suitable for environments where physical protection and clarity of light are critical in process areas and machine enclosures. Feature: 2x27W incandescent lamps with A-19 max size → Benefit: Reliable, readily replaceable light source with familiar bulb technology and predictable lumen output. Application: General-purpose industrial lighting in wall-mounted Pauluhn EP fixtures, enabling straightforward lamp upgrades and maintenance planning. Feature: Wall mounting with 30° reflector → Benefit: Targeted illumination with reduced glare, improving worker visibility and safety. Application: Wall-mounted locations along production lines, stairwells, and service corridors where beam control matters. Feature: 250 VAC, 50/60 Hz operation → Benefit: Broad compatibility with standard industrial power systems, ensuring dependable performance across facilities. Application: Federal and local code-compliant installations in mixed-voltage environments. Feature: NEC/CEC compliance and Class I Division 1/2 ratings → Benefit: Regulatory alignment simplifies procurement and audit readiness, lowering project risk. Application: Hazardous-area installations in oil, gas, chemical, and other energy-intensive industries.
Get a Quick Quote for a Eaton EPB48B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPB48B?
Enquire Now
FAQs
EPB48B is designed for wall mounting using a Pauluhn EP globe assembly with a cast brass guard. It accepts a medium base, A-19 max incandescent lamp, and uses a 30° reflector to direct light. Ensure a suitable hazardous-location rated enclosure and wiring method per NEC/CEC when planning installation. Verify proper fitting with your wall box and sealing requirements for IP66 protection.
The EPB48B operates at 250 VAC and 50/60 Hz with two incandescent lamps totaling 2x27W. It features IP66 ingress protection and a NEMA 4X enclosure, along with a tempered glass globe and brass guard for robust environmental protection. These ratings support reliable performance in hazardous locations and help maintain compliance with NEC/CEC requirements.
This globe and guard assembly is ideal for Class I, Division 1 and 2 hazardous locations in industrial facilities such as chemical plants, refineries, and steel mills. Its wall-mount configuration with a tempered globe and brass guard provides durable illumination in areas with exposure to dust, moisture, and potential impact while meeting safety standards.
The EPB48B complies with NEC/CEC standards, provides NEC hazardous ratings (Class I Division 1 and 2), and features IP66 ingress protection with a NEMA 4X enclosure. It is specifically designed for hazardous-location lighting and aligns with regulatory requirements for industrial installations.
The brass guard and tempered glass globe resist corrosion and impact, reducing replacement frequency. With two 27W lamps, routine maintenance is straightforward, minimizing downtime. Long-term reliability lowers maintenance costs, while regulatory compliance and robust construction enhance overall return on investment in demanding facilities.
