Eaton EPB49B Pauluhn globe and guard wall-mount - IP66
Part Number: EPB49B
Quick Summary
Eaton Crouse-Hinds Pauluhn EP globe and guard delivers rugged illumination for hazardous industrial locations. For engineers, protecting sensors and personnel from dust, moisture, and sudden interruptions is a constant challenge. It meets IP66, NEMA 4X, and NEC/CEC compliance for safe operation in hazardous or classified locations. Designed for wall-mount installations with a brass guard and tempered glass globe, it minimizes maintenance downtime and extends lamp life, delivering total cost of ownership benefits for hazardous area lighting. Engineers will appreciate compatibility with incandescent lamps up to 200W and a 30° reflector for beam control, while installers benefit from clear mounting instructions and a durable brass guard.
Product Information
Extended Description

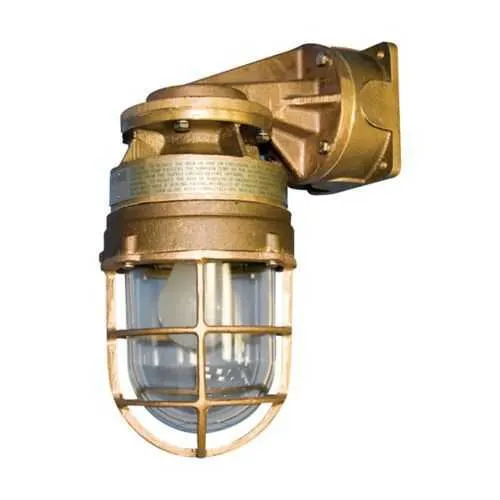

EPB49B Eaton: Eaton Crouse-Hinds series Pauluhn EP globe and guard, Medium base, 50/60 Hz, Clear tempered glass globe, With cast brass guard, Incandescent, Brass, A-21 max. lamp size, Wall mount, 30° angled reflector, 250 Vac, 200W
Product Name
Eaton Crouse-Hinds series Pauluhn EP globe and guard
Catalog Number
EPB49B
UPC
662276391062
Product Length/Depth
9.38 in
Product Height
12.25 in
Product Width
5.75 in
Product Weight
29.7 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Wall
Reflector type
30° angle
Wattage
200W
Lamp type
Incandescent
Lamp size - max
A-21
Base type
Medium
Guard type
With cast guard
Voltage rating
250 Vac
Frequency rating
50/60 Hz
Globe color
Clear
Globe material
Tempered glass
Guard material
Brass
Crouse-Hinds series Pauluhn EP Fluorescent catalog page
IF LBL1414 - EP Fluorescent - Wall Mount
Eaton Specification Sheet - EPB49B
IP66 ingress protection and a NEMA 4X enclosure shield the globe and guard from dust, water, and corrosives, reducing unexpected outages. That durability translates to longer service intervals and lower maintenance costs in demanding environments. Compatibility with 50/60 Hz systems and 250 VAC supply ensures reliable operation across plants. Brass guard with a tempered glass globe provides robust protection against impacts and chemical exposure, minimizing globe breakage and guard wear in busy plant aisles and outdoor zones. The fixture supports a max 200W incandescent lamp (A-21) with a medium base, enabling straightforward retrofits and easy lamp substitution, while the 30° reflector directs light to target work areas for improved visibility and safety. Wall mounting simplifies installation, reducing downtime during commissioning and service. Compliance with NEC/CEC and hazardous location ratings (Class I, Division 1/2) supports regulatory adherence and safer audits. Overall, this EP series solution offers durable construction, predictable performance, and lower total cost of ownership for high-risk environments.
Get a Quick Quote for a Eaton EPB49B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPB49B?
Enquire Now
FAQs
Yes. The EPB49B is designed for wall-mount installations and carries NEC/CEC compliance with Class I, Division 1/2 ratings, IP66 protection, and NEMA 4X enclosure, making it suitable for hazardous and classified locations.
Key specs include brass guard, tempered glass globe, 30° reflector, 200W incandescent lamp (A-21 max), medium base, 250 VAC, 50/60 Hz, IP66, and NEMA 4X ratings, with wall-mount mounting and a durable compact form factor.
The data specifies incandescent operation up to 200W with a medium base. LED compatibility is not specified by Eaton for this model, so plan to use a compatible incandescent lamp within the 200W max if required by your application.
Ideal for hazardous and classified locations such as chemical plants, refineries, and mining operations, particularly in wall-mounted fixtures where washdowns and exposure to dust and moisture are common.
EPB49B carries NEC/CEC compliance, IP66 ingress protection, and NEMA 4X enclosure ratings, with hazardous location approvals including Class I Division 1 and Division 2, supporting regulatory requirements and safer audits.
