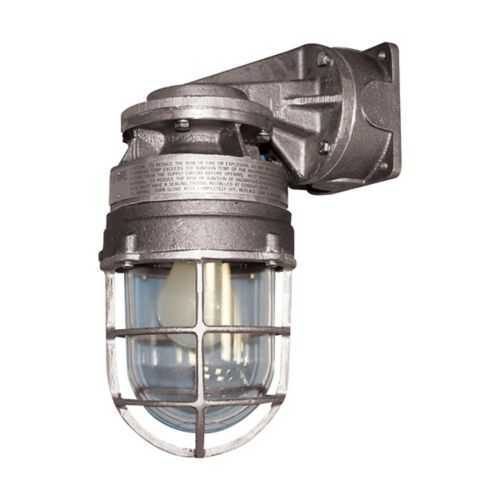

Eaton EPC30A-C1 globe and guard - IP66 protection
Part Number: EPC30A-C1
Quick Summary
The Eaton EPC30A-C1 globe and guard delivers rugged illumination for hazardous-location applications in industrial facilities. The design addresses maintenance challenges from brittle globes and corrosive environments by providing a robust, corrosion-resistant enclosure. This fixture carries NEC/CEC standards, NEMA 4X enclosure, and IP66 ingress protection, ensuring safe operation in demanding settings. Copper-free aluminum guard and through-feed wiring support easy ceiling installations, delivering durable, cost-effective industrial lighting that reduces downtime and maintenance costs.
Product Information
Extended Description
EPC30A-C1 Eaton: Eaton Crouse-Hinds series Pauluhn EP globe and guard, Medium base, 50/60 Hz, Clear tempered glass globe, Cast copper-free alum guard, Incandescent, Copper-free alum, A-19 max. lamp size, Ceiling mount, Through feed, 1/2", 250 Vac, 100W
Product Name
Eaton Crouse-Hinds series Pauluhn EP globe and guard
Catalog Number
EPC30A-C1
UPC
662276873728
Product Length/Depth
6.25 in
Product Height
12.5 in
Product Width
6.25 in
Product Weight
7.2 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Copper-free aluminum
Mounting Method
Ceiling
Wattage
2 x 27W
Lamp type
Incandescent
Lamp size - max
A-19
Trade size
1/2"
Base type
Medium
Guard type
With cast guard
Voltage rating
250 Vac
Frequency rating
50/60 Hz
Globe color
Clear
Globe material
Tempered glass
Guard material
Copper-free aluminum
Special features
Through feed
Crouse-Hinds series Pauluhn EP Fluorescent catalog page
IF LBL1415 - EP Fluorescent - Ceiling Mount
Eaton Specification Sheet - EPC30A-C1
Through-feed wiring enables quicker wiring runs and fewer field modifications, reducing installation time and potential errors in hazardous environments. This translates to lower labor costs and faster project turnover for industrial facilities. The IP66 and NEMA 4X protection provide superior dust and water ingress resistance, minimizing cleaning cycles and preventing corrosive damage in chemical plants or dusty production floors. Copper-free aluminum guard and guard construction resist corrosion, extending service life in humidity-prone or chemically aggressive atmospheres, improving total cost of ownership. The tempered glass globe with clear finish optimizes light transmission for consistent illumination, while the A-19 size compatibility and 2x27W incandescent lamps keep operating costs predictable and manageable for maintenance teams. Ceiling mounting simplifies retrofits and new installations in confined spaces, reducing structural modifications and downtime. Finally, NEC/CEC compliance across Class I, Division 1 and Division 2 locations helps satisfy regulatory requirements and mitigate risk during audits.
Get a Quick Quote for a Eaton EPC30A-C1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPC30A-C1?
Enquire Now
FAQs
Begin by verifying NEC/CEC compliance and confirming Class I, Division 1 or 2 rating for the installation site. Mount the fixture to a suitable ceiling box, route through-feed wiring via the 1/2 inch trade size, and securely attach the copper-free aluminum guard and tempered glass globe. Ensure the supply is 250 V AC and operates at 50/60 Hz. Follow all applicable safety procedures and use appropriate personal protective equipment during installation.
The fixture operates at 250 VAC and 50/60 Hz and uses 2 x 27 W incandescent lamps with a medium base (E26) and maximum lamp size A-19. Through-feed wiring simplifies field connections, and the unit is designed for ceiling mounting in hazardous locations. Ensure any replacement lamps remain within the specified wattage and diameter to preserve IP66 and NEMA 4X ratings.
Yes. The EPC30A-C1 is rated for Class I, Division 1 and Division 2 locations and carries NEC/CEC compliance, along with NEMA 4X and IP66 protection. This combination provides safe operation in harsh chemical and explosive atmospheres, enabling reliable lighting in critical processing areas without frequent fixture replacements.
The EPC30A-C1 supports NEC/CEC standards, is certified for Hazardous/Classified Locations, and provides Class I, Division 1 and 2 ratings. It carries a NEMA 4X enclosure rating and IP66 ingress protection, ensuring robust protection against dust and water intrusion. These certifications help meet regulatory requirements and support safe, compliant installations.
Copper-free aluminum construction resists corrosion, reducing maintenance frequency in harsh environments. The IP66/NEMA 4X enclosure lowers cleaning and replacement needs, extending service life. Through-feed wiring and a ceiling-mount design simplify installation and future upgrades, cutting labor costs. Flexible lamp compatibility with a predictable 2x27W incandescent load also supports stable operating costs and ROI over the fixture’s lifetime.
