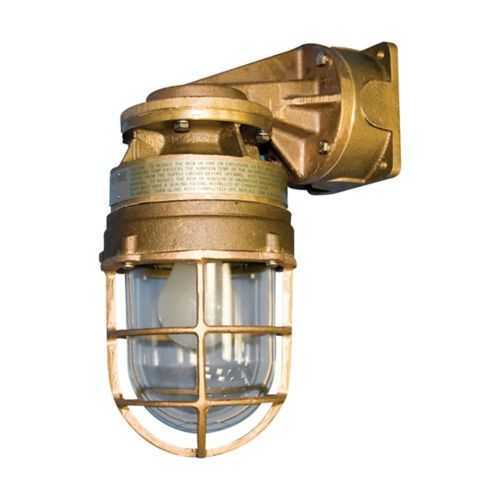

Eaton EPC30B EP globe and guard - IP66
Part Number: EPC30B
Quick Summary
EPC30B globe and guard by Eaton is a rugged ceiling-mounted lighting fixture designed for hazardous locations. This solution addresses the common challenge of maintaining visibility and safety in demanding environments where washdowns, dust, and explosive atmospheres threaten uptime. With NEC/CEC compliance, IP66 ingress protection, and NEMA 4X enclosure ratings, it delivers dependable performance in tough industrial spaces. The design uses a medium-base globe assembly, 2x27W incandescent lamps, and a brass guard for durability, while remaining compatible with standard A-19 lamp configurations. For procurement teams seeking proven safety, reliability, and ease of maintenance in hazardous-area lighting, EPC30B offers a proven, compliant option that integrates seamlessly with existing electrical infrastructure.
Product Information
Extended Description
EPC30B Eaton: Eaton Crouse-Hinds series Pauluhn EP globe and guard, Medium base, 50/60 Hz, Clear tempered glass globe, With cast brass guard, Incandescent, Brass, A-19 max. lamp size, Ceiling mount, 250 Vac, 100W
Product Name
Eaton Crouse-Hinds series Pauluhn EP globe and guard
Catalog Number
EPC30B
UPC
662276391130
Product Length/Depth
6.25 in
Product Height
12.5 in
Product Width
6.25 in
Product Weight
20 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Ceiling
Wattage
2 x 27W
Lamp type
Incandescent
Lamp size - max
A-19
Base type
Medium
Guard type
With cast guard
Voltage rating
250 Vac
Frequency rating
50/60 Hz
Globe color
Clear
Globe material
Tempered glass
Guard material
Brass
Crouse-Hinds series Pauluhn EP Fluorescent catalog page
IF LBL1415 - EP Fluorescent - Ceiling Mount
Eaton Specification Sheet - EPC30B
Feature → Business Impact → Application: The EP globe and guard uses a brass guard and tempered glass globe, delivering superior impact resistance and clear visual inspection in tough environments, reducing repair downtime and maintenance costs in chemical plants and refineries. This translates to higher uptime and safer work conditions for operators, with a robust first-line defense against accidental impacts and washdowns in hazardous areas. Feature → Business Impact → Application: 2x27W incandescent lamps on a medium base provide familiar, easily replaceable lighting with predictable color rendering and lumen output, enabling consistent task lighting for assembly lines, paint booths, and process areas while controlling operating expenses tied to lamp replacements. Feature → Business Impact → Application: 250 VAC operation at 50/60 Hz ensures compatibility with standard industrial power distribution, simplifying installation and reducing wiring errors during retrofits in plants and offshore facilities. Feature → Business Impact → Application: IP66 and NEMA 4X ratings shield components from dust and water ingress and corrosive environments, supporting long service life in washdown zones and outdoors, including chemical plants and ships. Feature → Business Impact → Application: Class I, Division 1 and Division 2 certifications align with NEC/CEC requirements, reducing compliance risk and accelerating approvals for new installations or upgrades in hazardous locations. Feature → Business Impact → Application: Ceiling mounting and the A-19-compatible globe size streamline integration with existing fixtures, enabling straightforward upgrades to meet stricter safety standards without extensive rework, ideal for maintenance-driven plant modernization.
Get a Quick Quote for a Eaton EPC30B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPC30B?
Enquire Now
FAQs
EPC30B is designed for ceiling mounting with a medium-base socket and accepts 2x27W incandescent lamps up to A-19 size. This compatibility supports easy lamp replacement with standard, widely available bulbs, minimizing downtime during maintenance while preserving the fixture’s protective brass guard and tempered-glass globe. The installation aligns with NEC/CEC requirements for safety in hazardous areas.
The EPC30B carries Class I, Division 1 and Division 2 hazardous-location ratings, NEC/CEC standards, and IP66 ingress protection with a NEMA 4X enclosure. These certifications indicate suitability for environments with explosive atmospheres, dust, washdowns, and corrosive exposure, helping facilities meet regulatory requirements and reduce risk during operation and audits.
Typical applications include chemical processing plants, refineries, paint shops, offshore platforms, and other areas requiring durable ceiling-mounted lighting in hazardous zones. Its tempered glass globe, brass guard, and IP66 protection make it ideal for washdown environments while maintaining clear visibility and safe operation for maintenance crews and operators.
Yes. The EPC30B uses a standard medium-base socket supporting 2x27W incandescent lamps, enabling straightforward replacement with widely available A-19 bulbs. Replacing lamps should be done with the fixture powered down and in accordance with safety procedures to preserve sealing integrity and maintain ongoing compliance with IP66/NEMA 4X protections.
Maintenance benefits stem from durable brass guarding, tempered-glass globe protection, and a familiar lamp type, which reduces downtime and training needs. While initial investment is higher than non-hazardous lighting, lifecycle costs drop due to longer replacement intervals, reduced risk of failure in hazardous zones, and easier compliance testing, resulting in favorable total cost of ownership in safety-critical environments.
