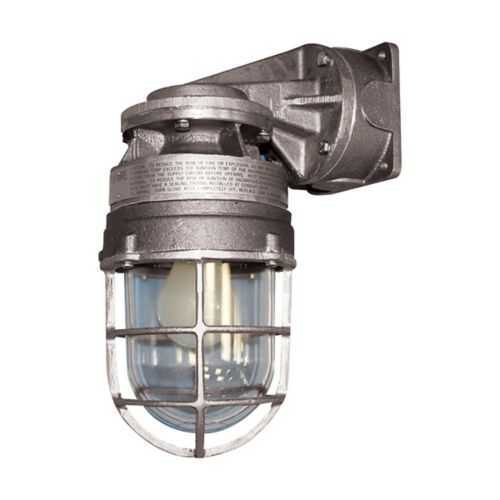

Eaton EPC35AR Globe & Guard - IP66, Hazardous Locations
Part Number: EPC35AR
Quick Summary
The EPC35AR globe and guard from Eaton delivers rugged, explosion-safe lighting for hazardous-location installations in industrial facilities. Maintenance and protection challenges in Class I, Division 1 environments drive the need for highly durable enclosures and compliant globe materials. This fixture meets NEC/CEC requirements, IP66 ingress protection, and NEMA 4X durability to minimize downtime and keep operations compliant. Its ceiling-mount design and compatibility with up to 200W incandescent lamps offer cost-effective retrofit options while ensuring reliable illumination across demanding workspaces.
Product Information
Extended Description
EPC35AR Eaton: Eaton Crouse-Hinds series Pauluhn EP globe and guard, Medium base, 50/60 Hz, Red tempered glass globe, Cast copper-free alum guard, Incandescent, Copper-free alum, A-21 max. lamp size, Ceiling mount, Shallow dome reflector, 250 Vac, 200W
Product Name
Eaton Crouse-Hinds series Pauluhn EP globe and guard
Catalog Number
EPC35AR
UPC
662276384439
Product Length/Depth
16.38 in
Product Height
12.5 in
Product Width
16.38 in
Product Weight
10 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Copper-free aluminum
Mounting Method
Ceiling
Reflector type
Shallow dome
Wattage
200W
Lamp type
Incandescent
Lamp size - max
A-21
Base type
Medium
Guard type
With cast guard
Voltage rating
250 Vac
Frequency rating
50/60 Hz
Globe color
Red
Globe material
Tempered glass
Guard material
Copper-free aluminum
Crouse-Hinds series Pauluhn EP Fluorescent catalog page
IF LBL1415 - EP Fluorescent - Ceiling Mount
Eaton Specification Sheet - EPC35AR
Globe and guard construction delivers rugged protection in harsh environments. This copper-free aluminum guard paired with a red tempered glass globe resists corrosion and impact, reducing replacement costs and downtime. It’s especially suited to ceiling-mounted luminaires in chemical plants, refineries, and other hazardous-classified locations where visibility and safety cannot be compromised. Ceiling mounting simplifies installation and retrofit projects. The EPC35AR uses a medium base and supports up to A-21 lamps, aligning with common industrial inventories. This combination minimizes ballast changes and streamlines upgrades in busy facilities. Electrical compatibility reduces wiring complexity and risk. With a 250 Vac rating and 50/60 Hz frequency, it integrates with standard facility power without needing special transformers. The 200W incandescent capability matches typical luminaire loads in controlled hazardous spaces. Reflector design improves performance. The shallow dome reflector distributes light more evenly, enhancing work area visibility and allowing fewer fixtures for the same illumination targets. This translates to lower installed cost and simpler maintenance planning. Compliance and safety are embedded. NEC/CEC standards, plus NEC hazardous ratings Class I Division 1 and 2, NEMA 4X, and IP66, provide regulatory assurance and safer operation in hazardous environments. This supports project approvals and long-term uptime. Durability and lifecycle protection reduce maintenance costs. The copper-free aluminum guard resists corrosive atmospheres, while tempered glass minimizes breakage risk and extends service life in tough plants. Overall, EPC35AR offers reliable performance with lower total cost of ownership.
Get a Quick Quote for a Eaton EPC35AR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPC35AR?
Enquire Now
FAQs
The EPC35AR is designed for ceiling mounting with a medium base and supports up to an A-21 lamp size at 200W. This simplifies retrofits by matching common industrial inventories and footprints. The copper-free aluminum guard and red tempered glass globe provide robust protection while enabling straightforward maintenance in busy facilities.
EPC35AR carries NEC/CEC compliance, NEC hazardous ratings Class I Division 1 and Class I Division 2, IP66 ingress protection, and a NEMA 4X enclosure. These certifications ensure safe operation, regulatory alignment, and reduced risk during commissioning and ongoing operation in classified locations.
Ideal for chemical processing, oil and gas, petrochemical plants, mining, and other hazardous environments, the EPC35AR supports ceiling-mounted illumination where access for maintenance is constrained. It pairs with widely used infrastructure and supports compliant, reliable lighting for critical workloads.
IP66 sealing protects against dust and powerful water jets, while NEMA 4X enclosures resist corrosion in challenging plant atmospheres. Together, they reduce corrosion-related failures, extend service life, and improve mean time between failures, contributing to higher uptime in demanding hazardous-location applications.
Durable copper-free aluminum and tempered glass minimize wear and breakage, lowering replacement costs. The design supports easy access for lamp changes and routine inspections, while robust protection reduces maintenance frequency. Over the life of the installation, these factors translate to lower total cost of ownership and predictable budgeting.
