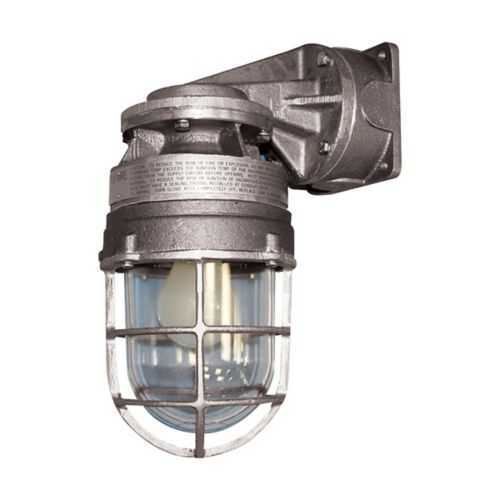

Eaton EPC36A Globe and Guard - IP66, Class I Division 1/2
Part Number: EPC36A
Quick Summary
The Eaton EPC36A globe and guard provides rugged illumination for hazardous locations in industrial facilities. When lighting must withstand corrosive atmospheres, moisture, and routine maintenance, downtime and safety risks rise. This luminaire carries NEC/CEC compliance with Class I Division 1 and Division 2 classifications, IP66 protection, and a NEMA 4X enclosure to ensure reliable, code-compliant operation. Designed for ceiling mounting in the Pauluhn EP family, it supports 2 x 27W incandescent lamps (A-19 max) and delivers straightforward maintenance, spare parts compatibility, and predictable lifecycle costs. In addition, tempered glass globe and copper-free aluminum guard optimize durability while maintaining clear visibility in demanding settings.
Product Information
Extended Description
EPC36A Eaton: Eaton Crouse-Hinds series Pauluhn EP globe and guard, Medium base, 50/60 Hz, Clear tempered glass globe, Cast copper-free alum guard, Incandescent, Copper-free alum, A-19 max. lamp size, Ceiling mount, 30° angled reflector, 250 Vac, 100W
Product Name
Eaton Crouse-Hinds series Pauluhn EP globe and guard
Catalog Number
EPC36A
UPC
662276391208
Product Length/Depth
6.25 in
Product Height
12.5 in
Product Width
6.25 in
Product Weight
9.2 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Copper-free aluminum
Mounting Method
Ceiling
Reflector type
30° angle
Wattage
2 x 27W
Lamp type
Incandescent
Lamp size - max
A-19
Base type
Medium
Guard type
With cast guard
Voltage rating
250 Vac
Frequency rating
50/60 Hz
Globe color
Clear
Globe material
Tempered glass
Guard material
Copper-free aluminum
Crouse-Hinds series Pauluhn EP Fluorescent catalog page
IF LBL1415 - EP Fluorescent - Ceiling Mount
Eaton Specification Sheet - EPC36A
Hazardous-location protection comes from an IP66-rated, NEMA 4X enclosure, delivering rugged resistance to dust, water, and corrosive sprays. This durability reduces maintenance intervals and minimizes unplanned downtime in harsh environments such as chemical processing plants, oil refineries, and marine facilities. Copper-free aluminum guard with a tempered glass globe provides excellent corrosion resistance and robust impact protection, enabling safer inspections and long-term visibility in moisture-prone or chemically aggressive atmospheres. Lamp compatibility of 2 x 27W incandescent lamps with a maximum A-19 size and 250 VAC operation simplifies stocking and rapid lamp replacement, lowering maintenance time and inventory costs for regulated sites. Ceiling mounting with a 30° reflector directs light precisely where it’s needed, reducing glare and enabling safer operation at height in warehouses and production floors. NEC/CEC compliance and hazardous-location ratings Class I Division 1/2 further streamline procurement, qualification, and regulatory approval for energy-efficient, code-compliant installations.
Get a Quick Quote for a Eaton EPC36A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPC36A?
Enquire Now
FAQs
The EPC36A is a ceiling-mount luminaire designed specifically for the Pauluhn EP globe-and-guard family, ensuring secure installation and alignment in overhead applications.
The unit supports 2 x 27W incandescent lamps with a maximum A-19 lamp size, operated at 250 VAC and 50/60 Hz, allowing straightforward replacement with common stock lamps.
Yes. The EPC36A carries NEC/CEC standards with Class I Division 1 and Division 2 ratings, along with IP66 and NEMA 4X enclosure protection for hazardous-location compliance.
It includes IP66 ingress protection, NEMA 4X enclosure, NEC/CEC compliance, and hazardous-area ratings (Class I Division 1/2), making it appropriate for hazardous-location lighting in demanding facilities.
The fixture offers rugged protection, easy maintenance with readily available lamps, regulatory compliance, and predictable lifecycle costs, reducing downtime and improving operator safety in harsh environments.
