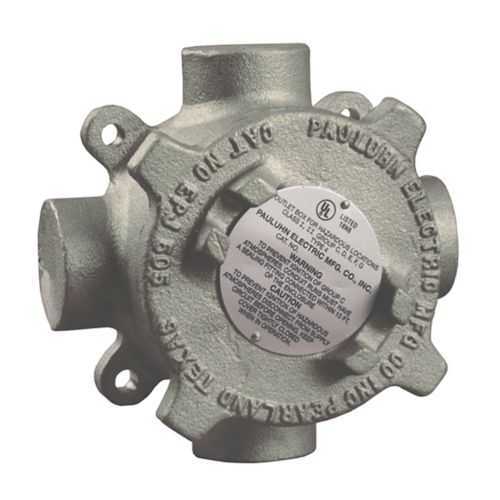

Eaton EPJ505A102 Conduit Outlet Box - IP66/NEMA 4X
Part Number: EPJ505A102
Quick Summary
Eaton EPJ505A102 conduit outlet box is designed to protect and route wiring in hazardous industrial environments. In the field, installers often contend with moisture ingress, dust, and downtime that erode reliability. This enclosure meets NEC/CEC requirements and delivers IP66 ingress protection with a NEMA 4X rating, making it suitable for Class I and II hazardous locations. Its copper-free aluminum construction reduces weight without sacrificing strength, while the surface-mount design streamlines installation. For procurement teams, this means safer, compliant wiring solutions that lower maintenance costs and improve system uptime in demanding plants and refineries.
Product Information
Extended Description
EPJ505A102 Eaton: Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box, Conduit openings 180° apart, Copper-free aluminum, Surface mount, 2 entries, 1"
Product Name
Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box
Catalog Number
EPJ505A102
UPC
662276391543
Product Length/Depth
5.69 in
Product Height
5.69 in
Product Width
3.5 in
Product Weight
3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Trade size
1"
Conduit openings
180° apart
Material
Copper-free aluminum
Number of entries
2
Mounting style
Surface
Pauluhn EPJ505 Explosionproof Conduit Outlet Boxes catalog page
Eaton Specification Sheet - EPJ505A102
Copper-free aluminum construction reduces weight and enhances corrosion resistance, delivering lower lifecycle costs and easier handling during installation. This material choice improves field durability in humid or chemically aggressive environments, translating to fewer replacements and less downtime in tough industrial settings. The enclosure’s IP66 and NEMA 4X ratings provide reliable protection against dust and high-pressure water jets, ensuring operation in wash-down areas, outdoor installations, and offshore facilities. With two 1" trade-size entries and 180° conduit openings, wiring can be routed from opposite sides, speeding up conduit routing and enabling flexible layouts. The surface-mount design simplifies mounting to existing frames or housings, reducing installation time and minimizing modification to surrounding infrastructure. NEC/CEC compliance further reassures engineers that the product meets mandatory electrical safety standards for hazardous locations. The 5.69 in L and H, 3.5 in W footprint, and a light 3 lb weight support easy transport to tight spaces, while maintaining rugged protection in demanding environments. This enclosure is well-suited for Pauluhn EPJ505 series installations and other standard conduit systems, providing a consistent, reliable platform for motor control, sensors, and field wiring in hazardous areas. Long-term, customers benefit from improved uptime, reduced commissioning time, and a lower total cost of ownership due to its robust protection and straightforward installation.
Get a Quick Quote for a Eaton EPJ505A102
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPJ505A102?
Enquire Now
FAQs
Install the EPJ505A102 as a surface-mounted enclosure, using its two 1" trade-size entries with 180° conduit openings to route wiring from opposing sides. Ensure seals and gaskets are properly placed to maintain IP66/NEMA 4X integrity. Adhere to NEC/CEC guidelines for hazardous locations, and mount to a compatible frame or enclosure surface to minimize installation time and risk.
Yes. The EPJ505A102 supports standard conduit connections with 1" trade size, two entries, and 180° openings, and uses copper-free aluminum for compatibility with Pauluhn EPJ505 series installations. Its surface-mount design pairs with common mounting patterns, enabling straightforward integration into existing electrical infrastructure without specialized adapters.
The enclosure features IP66 ingress protection and a NEMA 4X enclosure rating, designed for dust, water jets, and corrosive environments. With Class I and II hazardous location ratings under NEC/CEC, it supports safe operation in hazardous areas. The copper-free aluminum body provides corrosion resistance, while the 180° conduit openings and two 1" entries support flexible, robust wiring configurations.
EPJ505A102 is certified for NEC/CEC standards and rated for hazardous locations (Class I/II, Div1/2) with IP66 and NEMA 4X protections. These certifications ensure compliance with electrical safety and hazardous-environment requirements, enabling use in chemical plants, oil and gas facilities, and mining operations while meeting regulatory and industry performance expectations.
The corrosion-resistant copper-free aluminum construction extends service life in harsh environments, reducing replacement and maintenance costs. IP66/NEMA 4X protection lowers downtime due to ingress-related faults, and the lighter weight facilitates safer, faster handling and installation. Overall, you gain reliable protection for field wiring, shorter commissioning times, and improved uptime in demanding facilities.
