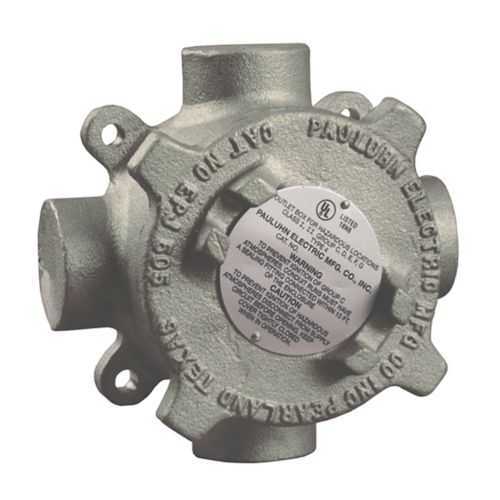

Eaton EPJ505A752 Conduit Outlet Box - IP66/NEMA 4X
Part Number: EPJ505A752
Quick Summary
The Eaton EPJ505A752 conduit outlet box is a rugged enclosure designed for hazardous locations and reliable conduit management. In demanding facilities, installation delays and corrosion concerns can drive maintenance costs and downtime, so engineers need a durable, easy-to-install solution. With copper-free aluminum, NEC/CEC compliance, IP66 protection, and NEMA 4X rating, this surface-mounted box delivers reliable performance in washdown environments. The 3/4" trade size, two-entry design and 180° conduit openings support flexible routing and fast field wiring, while minimizing enclosure breaches. For firms pursuing safer, more efficient electrical installations, this model combines protection, ease of use, and long-term lifecycle value across industrial automation and process industries.
Product Information
Extended Description
EPJ505A752 Eaton: Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box, Conduit openings 180° apart, Copper-free aluminum, Surface mount, 2 entries, 3/4"
Product Name
Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box
Catalog Number
EPJ505A752
UPC
662276444706
Product Length/Depth
5.69 in
Product Height
5.69 in
Product Width
3.5 in
Product Weight
3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 2 Class I, Division 2 Class II, Division 1 Class I, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Trade size
3/4"
Conduit openings
180° apart
Material
Copper-free aluminum
Number of entries
2
Mounting style
Surface
Pauluhn EPJ505 Explosionproof Conduit Outlet Boxes catalog page
IF LBL 1514 - EPJ505 Explosionproof Conduit Outlet Boxes
Eaton Specification Sheet - EPJ505A752
Feature: Copper-free aluminum construction. Business Impact: Provides superior corrosion resistance in harsh environments, reducing maintenance costs and extending service life. Application: Outdoor and washdown facilities where moisture and chemicals are present. Feature: IP66 and NEMA 4X enclosure ratings. Business Impact: Delivers robust ingress protection and vandal resistance, safeguarding critical wiring in hazardous locations. Application: Chemical plants, oil and gas facilities, and water treatment plants where safety and reliability are non-negotiable. Feature: 3/4" trade size with two entries and 180° conduit openings. Business Impact: Facilitates flexible conduit routing and quick installation, lowering labor time. Application: Control panels and equipment housings with multiple power and sensor feeds. Feature: Surface mounting capability. Business Impact: Simplifies retrofits and new installs by eliminating complex enclosure mounting hardware. Application: Retrofit projects and compact automation cabinets where space is at a premium. Feature: Compliance with NEC/CEC for hazardous locations. Business Impact: Ensures regulatory alignment and safer operation, reducing risk of non-compliance penalties. Application: Industries requiring Class I/II, Division 1/2 protection for electrical wiring.
Get a Quick Quote for a Eaton EPJ505A752
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPJ505A752?
Enquire Now
FAQs
The EPJ505A752 is designed for surface mounting with two entries and 180° conduit openings. Begin by selecting a clean, flat mounting surface that supports NEC/CEC compliance. Secure the enclosure using appropriate fasteners, route 3/4" conduit through the openings, and seal all joints to maintain IP66/NEMA 4X integrity. Verify grounding per your system's requirements.
EPJ505A752 provides copper-free aluminum construction, IP66 protection, and NEMA 4X rating, specifically designed for hazardous locations. With area classification for Hazardous/Classified Locations and NEC/CEC compliance, it protects wiring from dust, water ingress, and corrosion, enabling safer operation in explosive atmospheres typical of chemical, petrochemical, and upstream/downstream industrial facilities.
Industries such as chemical processing, oil and gas, mining, and water treatment benefit from EPJ505A752 due to its rugged, explosion-proof design, corrosion resistance, and reliable IP66/NEMA 4X protection. Its surface-mount capability and two-entry configuration simplify wiring runs in tight cabinets or outdoor installations, improving installation efficiency and long-term maintenance costs.
The EPJ505A752 aligns with NEC/CEC standards and provides hazardous-location ratings (Class I/II, Division 1 and 2) with a NEMA 4X enclosure and IP66 ingress protection. These certifications ensure compliance for critical electrical distribution in hazardous environments and support regulatory acceptability across North American markets.
Copper-free aluminum reduces corrosion-related maintenance, while the IP66/NEMA 4X protection minimizes enclosure breaches in harsh environments. The 3/4" conduit and two-entry design speed up installation, cutting labor costs. Together, these factors lower downtime, extend service life, and improve reliability in automation infrastructure, contributing to a favorable ROI over the equipment’s lifecycle.
