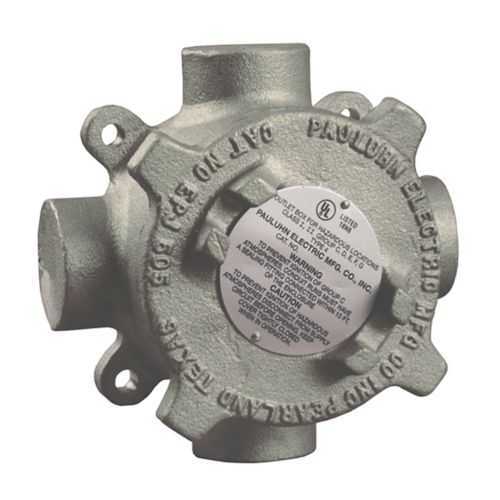

Eaton EPJ505A752T4 conduit outlet box - IP66
Part Number: EPJ505A752T4
Quick Summary
The Eaton EPJ505A752T4 conduit outlet box protects electrical connections in hazardous industrial environments while enabling reliable, surface-mounted installations. In busy plants, maintenance and compliance are challenged by enclosures that fail under moisture, dust, or chemical exposure and complicate conduit routing. This model carries hazardous-location approvals, a NEMA 4X rating, and IP66 ingress protection, ensuring rugged performance in Class I/II environments. With copper-free aluminum construction and a 3/4 inch trade size, it streamlines installation, reduces lifecycle costs, and supports safe, compliant operation across demanding applications. It's ideal for OEMs and maintenance teams seeking to minimize downtime and maximize safety.
Product Information
Extended Description
EPJ505A752T4 Eaton: Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box, Conduit openings 180° apart, Copper-free aluminum, Surface mount, 2 entries, 4-pole, 20A terminal block, 3/4"
Product Name
Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box
Catalog Number
EPJ505A752T4
UPC
662276843004
Product Length/Depth
5.69 in
Product Height
5.69 in
Product Width
3.5 in
Product Weight
3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 2 Class I, Division 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Trade size
3/4"
Conduit openings
180° apart
Material
Copper-free aluminum
Number of entries
2
Mounting style
Surface
Special features
4-pole, 20A terminal block
Pauluhn EPJ505 Explosionproof Conduit Outlet Boxes catalog page
IF LBL 1514 - EPJ505 Explosionproof Conduit Outlet Boxes
Eaton Specification Sheet - EPJ505A752T4
Copper-free aluminum construction provides excellent corrosion resistance while reducing enclosure weight, which translates to easier field handling and faster installation. This material choice lowers maintenance cycles and extends service life for Pauluhn EPJ505 boxes used in chemical plants, offshore facilities, and other harsh environments. Hazardous-location ratings and certifications ensure compliance and safety during inspections and wiring in Class I/II locations. The EPJ505A752T4 carries NEC/CEC standards, IP66 ingress protection, and NEMA 4X corrosion resistance, plus explicit Class I, Division 1 and Class II, Division 2 ratings, enabling safer operations in refineries, mining sites, and wastewater facilities. Conduit openings are arranged 180° apart with two entries and a 3/4 inch trade size, simplifying wiring layout and reducing bending effort. The 4-pole, 20A terminal block supports reliable connections, while the surface-mount design keeps installation tidy in tight spaces and adjacent to control panels. The enclosure measures 5.69 inches in length and height with a 3.5 inch width, and weighs 3 pounds, delivering a compact yet robust footprint for multiple panel configurations. IP66 protection and NEMA 4X rating provide washdown readiness and durability in demanding environments such as chemical processing, oil and gas, and water treatment, reducing downtime and extending service intervals for maintenance teams.
Get a Quick Quote for a Eaton EPJ505A752T4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPJ505A752T4?
Enquire Now
FAQs
EPJ505A752T4 is designed for hazardous/classified locations and carries Class I, Division 1; Class II, Division 2; and related NEC/CEC approvals, making it suitable for refineries, chemical plants, and other explosive atmosphere environments.
Yes. It supports a 3/4" trade size conduit with two entries. The openings are 180° apart, and the box houses a 4-pole, 20A terminal block for efficient, safe wiring.
The enclosure is IP66 and NEMA 4X rated, with NEC/CEC standards and hazardous-location classifications including Class I/Division 1 and Class II/Division 2 to support safe operation in demanding environments.
It is a surface-mount enclosure with two 3/4" conduit openings, designed for straightforward field wiring. Its copper-free aluminum construction reduces weight, and its compact footprint fits tight spaces on control panels and equipment skins.
The combination of IP66/NEMA 4X protection and corrosion-resistant copper-free aluminum lowers maintenance cycles and downtime in harsh environments, while robust ratings and easy wiring translate to faster commissioning and lower lifecycle costs.
