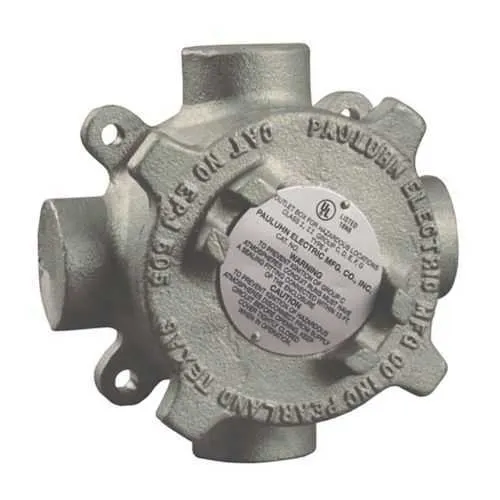

Eaton EPJ505A754 Conduit Outlet Box - IP66
Part Number: EPJ505A754
Quick Summary
Eaton EPJ505A754 conduit outlet box protects electrical connections in hazardous locations with a rugged surface-mount design. This enclosure supports a 3/4" trade size and four entries for flexible conduit routing. Engineers often struggle with sealing integrity, corrosion resistance, and installation speed in washdown environments; this model solves those challenges with copper-free aluminum and an IP66 seal. It also carries NEC/CEC compliance for Class I and II locations and NEMA 4X protection, ensuring safety and regulatory alignment. Compatible with Pauluhn EPJ505 accessories, it delivers reliable performance in chemical plants, petrochemical facilities, and other hazardous settings. Lightweight construction, robust protection, and straightforward mounting help reduce maintenance and accelerate field work for installers and integrators.
Product Information
Extended Description
EPJ505A754 Eaton: Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box, Copper-free aluminum, Surface mount, 4 entries, 3/4"
Product Name
Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box
Catalog Number
EPJ505A754
UPC
662276391611
Product Length/Depth
5.69 in
Product Height
5.69 in
Product Width
3.5 in
Product Weight
2.96 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Trade size
3/4"
Material
Copper-free aluminum
Number of entries
4
Mounting style
Surface
Pauluhn EPJ505 Explosionproof Conduit Outlet Boxes catalog page
IF LBL 1514 - EPJ505 Explosionproof Conduit Outlet Boxes
Eaton Specification Sheet - EPJ505A754
Copper-free aluminum construction reduces overall weight while delivering durable corrosion resistance. This translates to easier handling on site, lower freight costs, and longer service life in harsh environments such as chemical plants and offshore facilities. Surface-mount design with four 3/4" trade-size entries enables flexible conduit routing and quick mounting to walls or equipment backs, while compatibility with the Pauluhn EPJ505 family standardizes installations across projects. IP66 ingress protection and a NEMA 4X rating provide reliable sealing against dust, water, and washdowns, reducing maintenance cycles and downtime in outdoor and washdown-heavy environments. Hazardous-location certifications include NEC/CEC compliance for Class I and II divisions, ensuring safe operation in volatile atmospheres and aligning with regulatory requirements for chemical processing, oil and gas, and mining. Compact dimensions and a 2.96 lb weight offer a small footprint without sacrificing protection, supporting efficient space planning in tight equipment areas. Documentation and installation support—catalog pages, installation sheets, and the Eaton specification sheet—facilitate rapid procurement and compliant field deployment.
Get a Quick Quote for a Eaton EPJ505A754
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPJ505A754?
Enquire Now
FAQs
Begin with a clean, flat mounting surface and appropriate fasteners for wall or equipment backings. Position the box, ensure the gasket and cover seal are properly seated to maintain IP66/NEMA 4X protection, then route conduits through the four 3/4" entries. Refer to the installation sheet (LBL1514) for step-by-step guidance and torque recommendations to keep the enclosure compliant with NEC/CEC requirements.
Key specs include a 3/4" trade size, four entries, copper-free aluminum body, surface-mount mounting, dimensions of 5.69 in (length) by 5.69 in (height) by 3.5 in (width), and a weight of 2.96 lb. It carries IP66 sealing and a NEMA 4X rating, plus NEC/CEC compliance for Class I/II hazardous locations.
Yes. The EPJ505A754 is designed for hazardous locations, with IP66 and NEMA 4X protection, and NEC/CEC compliance for Class I and II divisions. Copper-free aluminum offers excellent corrosion resistance, making it well suited for chemical processing, oil and gas, and offshore facilities where washdowns and exposure to chemicals are common.
It carries NEC/CEC compliance for Class I/Division 1 and 2, Class II/Division 1 and 2, a NEMA 4X rating, and IP66 ingress protection. These certifications verify safe operation in explosive atmospheres and harsh environments, streamline regulatory approvals, and reduce risk for integrators and end users in regulated industries.
Documentation is available via Eaton’s resources, including the Pauluhn EPJ505 catalog page, the LBL1514 installation sheet, and the EPJ505A754 specification sheet. Accessing these documents helps verify installation procedures, compatibility with EPJ505 accessories, and alignment with project milestones.
