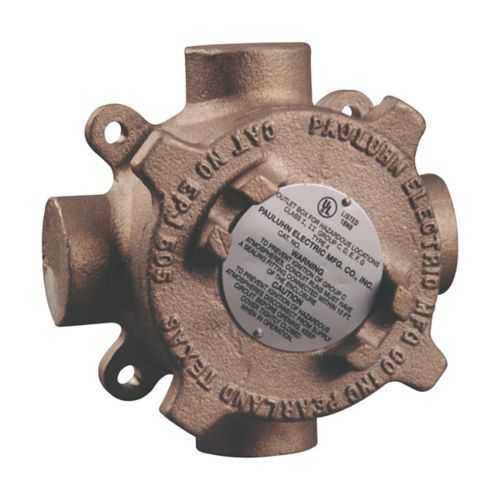

Eaton EPJ505B Conduit Outlet Box - Explosionproof IP66
Part Number: EPJ505B
Quick Summary
EPJ505B conduit outlet box is a brass, surface-mount enclosure engineered for hazardous locations and demanding industrial installations. This rugged unit helps technicians safeguard wiring while reducing inspection interruptions and downtime. It meets NEC/CEC standards and is rated IP66 and NEMA 4X, offering dependable protection in wash-down environments and outdoor setups. This combination of robust material and certified performance translates to longer service life, lower maintenance costs, and compliant installations in oil & gas, chemical processing, and mining facilities. By aligning with Pauluhn EPJ505 design lineage, the enclosure supports reliable terminations and easier field assembly, while compatible with standard conduit fittings and surface-mount layouts for quick, cost-efficient deployments.
Product Information
Extended Description
EPJ505B Eaton: Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box, Brass, Surface mount
Product Name
Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box
Catalog Number
EPJ505B
UPC
662276391635
Product Length/Depth
5.69 in
Product Height
5.69 in
Product Width
3.5 in
Product Weight
9.7 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting style
Surface
Pauluhn EPJ505 Explosionproof Conduit Outlet Boxes catalog page
IF LBL 1514 - EPJ505 Explosionproof Conduit Outlet Boxes
Eaton Specification Sheet - EPJ505B
Explosionproof brass construction provides inherent safety margins and resistance to corrosive environments, reducing the risk of ignition and improving compliance with hazardous-location requirements. This feature translates to safer operation and lower insurance costs in chemical plants and oil refineries, where equipment exposure to vapors and wash-downs is routine. IP66 and NEMA 4X ratings deliver dust-tight and water ingress protection, enabling cleaner terminations and fewer enclosure-related failures in outdoor or harsh environments, which lowers maintenance frequency and extends service life. The 5.69 in length and 5.69 in height with a 3.5 in width, combined with a 9.7 lb weight, provide a compact yet sturdy footprint that fits tight spaces while resisting impact, vibration, and mounting stress. Surface mounting simplifies retrofits and new installations, reducing installation time and labor costs. Certification to NEC/CEC standards and hazardous-location classifications (Class I/Division 1 and 2; Class II/Division 1 and 2) ensures regulatory compliance and smoother project approvals. Pauluhn EPJ505 lineage offers proven compatibility with standard conduit accessories, improving installation reliability and reducing the need for special parts. These attributes support faster commissioning, predictable performance, and lower lifecycle costs for hazardous-area electrical infrastructure.
Get a Quick Quote for a Eaton EPJ505B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPJ505B?
Enquire Now
FAQs
EPJ505B is designed for surface mounting and is compatible with standard conduit fittings used in hazardous locations. Its brass construction and compact 5.69 in L Ă— 5.69 in H Ă— 3.5 in W footprint simplify retrofits and new installations alike, while its 9.7 lb weight provides a sturdy, vibration-resistant enclosure suitable for outdoor or wash-down environments.
EPJ505B carries NEC/CEC compliance and hazardous-location ratings including Class I, Division 1 and Division 2, as well as Class II, Division 1 and Division 2. The enclosure is NEMA 4X and IP66 rated, ensuring protection against water, dust, and corrosion in demanding environments.
Common applications include chemical processing, oil and gas facilities, mining operations, and outdoor electrical infrastructure where explosion protection and robust environmental sealing are essential. The brass construction and surface-mount design support reliable terminations in wash-down and outdoor settings, helping maintain continuity of service in hazardous locations.
Maintenance benefits arise from the IP66/NEMA 4X protection and brass material, which resist corrosion and dirt ingress. Routine cleaning of exterior surfaces and periodic inspection of seals and mounting hardware are typically sufficient. The enclosure’s rugged build reduces the frequency of replacements and unplanned outages in harsh environments.
Choosing EPJ505B enhances safety and regulatory compliance while reducing downtime and maintenance costs. Its explosion-proof construction, durable sealing, and compatibility with standard conduit accessories simplify installation, shorten project timelines, and extend service life, delivering measurable savings over traditional enclosures in hazardous-locations projects.
