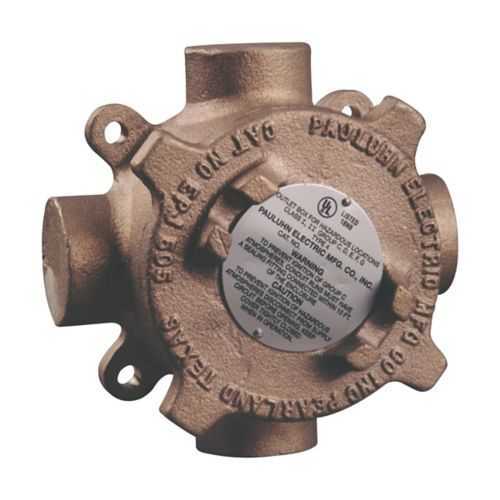

Eaton EPJ505B502LT4 Conduit Outlet Box - IP66
Part Number: EPJ505B502LT4
Quick Summary
EPJ505B502LT4 conduit outlet box provides rugged electrical enclosure for hazardous environments in industrial installations. Engineers often struggle to keep enclosures safe and compliant in harsh plants where dust, moisture, and corrosive exposure threaten reliability. This unit delivers IP66 and NEMA 4X protection and NEC/CEC compliance, with hazardous location ratings covering Class I and Class II divisions 1 and 2. Brass construction and a compact 5.69 in footprint support durable installations, while the 2-entry, 90° conduit design and 4-pole 20A terminal block streamline wiring and reduce install time. Together, these features translate to lower maintenance costs and improved safety in industrial environments.
Product Information
Extended Description
EPJ505B502LT4 Eaton: Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box, Conduit openings 90° apart, Brass, Surface mount, 2 entries, 4-pole, 20A terminal block, 1/2"
Product Name
Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box
Catalog Number
EPJ505B502LT4
UPC
662276873957
Product Length/Depth
5.69 in
Product Height
5.69 in
Product Width
3.5 in
Product Weight
9.8 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 2 Class II, Division 1 Class I, Division 1 Class I, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Trade size
1/2"
Conduit openings
90° apart
Material
Brass
Number of entries
2
Mounting style
Surface
Special features
4-pole, 20A terminal block
Pauluhn EPJ505 Explosionproof Conduit Outlet Boxes catalog page
IF LBL 1514 - EPJ505 Explosionproof Conduit Outlet Boxes
Eaton Specification Sheet - EPJ505B502LT4
Brass construction provides inherent corrosion resistance and durability in aggressive environments, extending service life and reducing replacement costs. The 90° conduit openings and two entry points simplify routing, speeding up field wiring and minimizing labor hours on project installs. A 4-pole, 20A terminal block supports demanding circuits with reliable torque and transition efficiency, improving overall electrical performance in control panels and junction boxes. Surface mounting offers flexible placement on equipment skids or walls, cutting enclosure mounting time and enabling quick retrofits in evolving plant layouts. IP66 and NEMA 4X ratings deliver robust protection against dust, water, and corrosive factors, ensuring regulatory compliance and reducing field service calls. This model’s hazardous location approvals (Class I/II, Divisions 1–2) give engineers a trusted solution for oil, gas, chemical, and mining facilities, while remaining compatible with Pauluhn EPJ505 line expectations and standard fittings, accelerating procurement and installation.
Get a Quick Quote for a Eaton EPJ505B502LT4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPJ505B502LT4?
Enquire Now
FAQs
EPJ505B502LT4 is rated for Class I and II locations with 1/2" trade size, two 90° conduit entries, and surface mounting. Its IP66/NEMA 4X protection supports outdoor and harsh indoor environments, while the 4-pole 20A terminal block enables straightforward wiring. Plan for secure grounding and compliant sealing to maintain enclosure integrity in explosive atmospheres.
Yes. The EPJ505B502LT4 adheres to NEC/CEC standards and is approved for Hazardous/Classified Locations, including Class I, Division 1 and Division 2, as well as Class II locations. This makes it suitable for industrial settings such as chemical processing, mining, and oil and gas where code-compliant protection is mandatory.
Ideal for chemical plants, offshore facilities, mining operations, and other hazardous locations, the EPJ505B502LT4 provides durable protection for conduit terminations and wiring. Its combination of IP66/NEMA 4X protection, brass construction, and surface mounting makes it a reliable choice for rugged outdoor enclosures and high-dust environments.
The two-entry, 1/2" trade size design with 90° conduit openings simplifies conduit routing and reduces wiring complexity. Surface mounting eases integration into existing panels or wall applications, while the 4-pole 20A terminal block supports efficient, secure wiring. Its protective ratings minimize field service interruptions due to environmental exposure.
The brass construction and highest IP66/NEMA 4X protection reduce corrosion-related downtime and replacement costs, extending service life. Faster installation with fewer components lowers labor costs, and reliable hazardous-location ratings decrease warranty and service visits, delivering a favorable total cost of ownership in demanding facilities.
