Eaton EPJ505B504 Conduit Outlet Box - IP66 4X
Part Number: EPJ505B504
Quick Summary
EPJ505B504 conduit outlet box by Eaton delivers explosion-proof enclosure performance for hazardous locations in industrial automation and process facilities. This design addresses the frequent challenge of protecting conduit terminations while staying code-compliant and minimizing maintenance downtime. Highlights include IP66 and NEMA 4X ratings, plus NEC/CEC compliance and hazardous-location standards. As a surface-mount, brass-box solution, EPJ505B504 helps reduce wiring costs and simplifies installation in challenging environments, supporting reliability and long-term ROI in industrial automation. Designed for seamless installation with surface-mount layouts and 1/2 inch trade fittings, it supports fast field wiring and safer termininations in dense panel spaces. Its compliance with NEC/CEC and hazardous-location standards helps streamline procurement and reduce regulatory risk across global projects.
Product Information
Extended Description

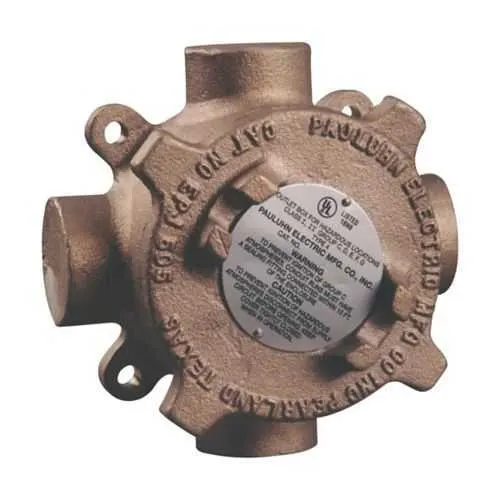

EPJ505B504 Eaton: Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box, Brass, Surface mount, 4 entries, 1/2"
Product Name
Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box
Catalog Number
EPJ505B504
UPC
662276391697
Product Length/Depth
5.69 in
Product Height
5.69 in
Product Width
3.5 in
Product Weight
9.7 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Trade size
1/2"
Material
Brass
Number of entries
4
Mounting style
Surface
Pauluhn EPJ505 Explosionproof Conduit Outlet Boxes catalog page
IF LBL 1514 - EPJ505 Explosionproof Conduit Outlet Boxes
Eaton Specification Sheet - EPJ505B504
The EPJ505B504 is engineered as an explosion-proof conduit outlet box, delivering robust protection for hazardous process environments. The IP66 and NEMA 4X ratings ensure water, dust, and chemical ingress are controlled, minimizing field failures and guarding wiring in harsh plants. This enclosure is designed for Class I and Class II hazardous locations (Division 1 and 2), supporting NEC/CEC compliance across global projects. Brass construction provides exceptional durability and corrosion resistance in corrosive atmospheres common in oil, gas, and chemical processing. The material choice also aids heat dissipation and sealing, contributing to longer service intervals and reduced maintenance costs. Installed as part of Pauluhn EPJ505 series solutions, it aligns with industry standards while delivering dependable performance. It features four 1/2 inch trade entries, enabling flexible wiring configurations in compact control panels. The surface-mount mounting style simplifies installation on walls, enclosures, or equipment frames and supports reliable gasketing for sealed operation. Users gain faster field terminations and fewer penetrations, cutting project timelines and reducing labor costs. The enclosure's compact footprint—5.69 in length, height, and 3.5 in width with a 9.7 lb weight—fits into tight spaces without sacrificing protection. The 1/2 inch trade size is a common standard, ensuring compatibility with standard conduit fittings and simplifying stocking of spare parts. Its rugged build reduces risk of equipment downtime in harsh environments. From installation instructions to specification sheets, Eaton offers authoritative resources to support compliance and proper use, including the EPJ505 catalog page and LBL1514 instruction sheet.
