Eaton EPJ505B752T4 Conduit Outlet Box - IP66, 4X
Part Number: EPJ505B752T4
Quick Summary
The Eaton EPJ505B752T4 conduit outlet box provides rugged, explosion-proof protection for terminations in hazardous locations. Installers often face moisture, dust, and space constraints that complicate conduit routing and wiring in tough environments. It meets NEC/CEC requirements and hazardous-location ratings, delivering IP66 ingress protection, NEMA 4X enclosure integrity, and Class I/II classifications. Designed for 3/4 in trade-size conduits with two entries and a surface-mount footprint, it supports a 4-pole 20A terminal block to streamline wiring and reduce field rework. The brass construction adds notable corrosion resistance, helping minimize maintenance costs in harsh industrial settings while simplifying sourcing through Eaton’s catalogs and installation guides.
Product Information
Extended Description

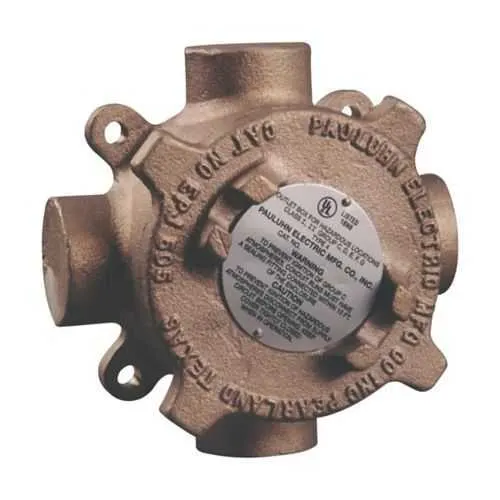

EPJ505B752T4 Eaton: Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box, Conduit openings 180° apart, Brass, Surface mount, 2 entries, 4-pole, 20A terminal block, 3/4"
Product Name
Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box
Catalog Number
EPJ505B752T4
UPC
662276391710
Product Length/Depth
5.69 in
Product Height
5.69 in
Product Width
3.5 in
Product Weight
9.8 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class I, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Trade size
3/4"
Conduit openings
180° apart
Material
Brass
Number of entries
2
Mounting style
Surface
Special features
4-pole, 20A terminal block
Pauluhn EPJ505 Explosionproof Conduit Outlet Boxes catalog page
IF LBL 1514 - EPJ505 Explosionproof Conduit Outlet Boxes
Eaton Specification Sheet - EPJ505B752T4
Brass construction delivers robust corrosion resistance in challenging environments, reducing downtime and replacement costs for chemical plants and offshore facilities. This translates to longer service life for terminations and connectors and lower total cost of ownership in aggressive atmospheres. The IP66 and NEMA 4X ratings protect against dust ingress and water exposure, ensuring reliable operation in wash-down areas and outdoor installations while maintaining compliance with industrial safety standards. Explosion-proof design for hazardous locations provides peace of mind in Class I/II environments, enabling safer wiring in oil & gas, mining, and chemical processing facilities with fewer enclosure-related contingencies. The 3/4" trade size and two entry points with 180° conduit openings offer flexible routing and easier field wiring, reducing installation time and improving first-pass accuracy. Surface mounting simplifies mounting logistics, cutting labor, while the 4-pole 20A terminal block supports robust electrical connections with fewer terminals to manage, lowering maintenance complexity. At 9.8 lb with dimensions of 5.69 in by 5.69 in by 3.5 in, this enclosure fits compact spaces without compromising protection or accessibility, aiding shipping and on-site handling in busy plant environments. Industry-grade compatibility with Pauluhn style accessories and Eaton catalog pages further streamlines procurement and project planning, aligning with long-cycle projects and multi-site deployments.
