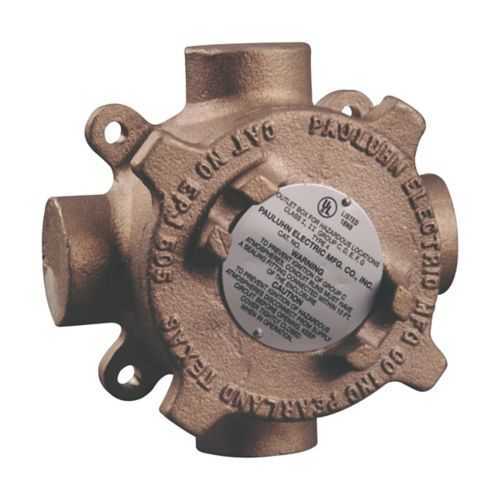

Eaton EPJ505B753T4 Conduit Outlet Box - Explosionproof 4X IP66
Part Number: EPJ505B753T4
Quick Summary
The Eaton EPJ505B753T4 conduit outlet box is a rugged enclosure designed for hazardous industrial locations. In challenging facilities, reliable sealing, corrosion resistance, and safe wiring termination are persistent pain points. This unit carries NEC/CEC compliance, IP66 sealing, and NEMA 4X protection for Class I and II divisions, reducing risk and downtime. Designed for Pauluhn EPJ505 series applications, it integrates with standard conduit fittings and supports a variety of 3/4 inch trade size wiring scenarios. Its brass surface-mount construction enables straightforward installation on walls and equipment, with a 4-pole 20A terminal block that facilitates efficient, code-compliant control and sensing circuits. This combination helps maintenance teams shorten project timelines and improve overall equipment reliability.
Product Information
Extended Description
EPJ505B753T4 Eaton: Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box, Brass, Surface mount, 3 entries, 4-pole, 20A terminal block, 3/4"
Product Name
Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box
Catalog Number
EPJ505B753T4
UPC
662276873971
Product Length/Depth
5.69 in
Product Height
5.69 in
Product Width
3.5 in
Product Weight
9.8 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 2 Class I, Division 2 Class I, Division 1 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Trade size
3/4"
Material
Brass
Number of entries
3
Mounting style
Surface
Special features
4-pole, 20A terminal block
Pauluhn EPJ505 Explosionproof Conduit Outlet Boxes catalog page
IF LBL 1514 - EPJ505 Explosionproof Conduit Outlet Boxes
Eaton Specification Sheet - EPJ505B753T4
Feature brass construction and explosionproof rating → Business Impact: Provides corrosion resistance and ignition protection in hazardous areas → Application: chemical plants, oil refineries, and off-shore facilities. Feature IP66 and NEMA 4X protection → Business Impact: Prevents ingress from water, dust, and washdown → Application: outdoor, washdown, or high-dust environments. Feature 3/4 in trade size, 3 entries, and a 4-pole 20A terminal block → Business Impact: Streamlines wiring, reduces install time, and supports motor control and instrumentation circuits → Application: panel mounting and wall installations in demanding locations. Feature surface mounting → Business Impact: Faster, cleaner installations with minimal brackets → Application: equipment housings and process-area walls. Feature NEC/CEC compliance and hazardous location ratings Class I/II Division 1 & 2 → Business Impact: Ensures regulatory alignment and reduces compliance risk → Application: industrial plants with strict safety requirements.
Get a Quick Quote for a Eaton EPJ505B753T4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPJ505B753T4?
Enquire Now
FAQs
EPJ505B753T4 is a brass explosionproof conduit outlet box rated for NEC/CEC compliance with IP66 and NEMA 4X protection for Class I and II divisions. It accepts 3/4 in conduit and features 3 entries with a 4-pole 20A terminal block for safe, scalable wiring in hazardous environments.
The EPJ505B753T4 uses a brass, explosionproof construction with surface-mount mounting, providing superior corrosion resistance and ignition protection versus plastic housings. It supports standard conduit fittings and a compact 3/4 in footprint, enabling faster, code-compliant installations in harsh locations.
Yes. The unit carries NEC/CEC compliance, IP66 ingress protection, and a NEMA 4X rating, suitable for hazardous location service and demanding industrial atmospheres.
Ideal for chemical plants, oil and gas facilities, water treatment, and other hazardous environments requiring durable protection for wiring terminations and control circuits, especially where outdoor or washdown exposure occurs.
The box is 3/4 in trade size with 3 entries and a 4-pole 20A terminal block. Dimensions are approximately 5.69 in in length, 5.69 in in height, and 3.5 in in width, with a weight around 9.8 lb.
