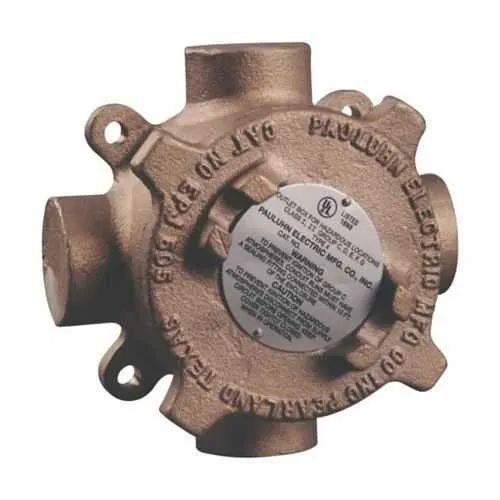

Eaton EPJ505B754T4 Conduit Outlet Box - IP66
Part Number: EPJ505B754T4
Quick Summary
The EPJ505B754T4 conduit outlet box is a rugged, surface-mount enclosure designed for hazardous locations and reliable terminations. For engineers, downtime and compliance complexity are real challenges, and this box minimizes exposure to contaminants while simplifying wiring. With NEMA 4X and IP66 ratings, plus NEC/CEC compliance, it meets stringent protection standards in tough environments. Brass construction, a 3/4" trade size, and a 4-entry, 4-pole design accelerate field wiring while delivering long-term durability. The 20A terminal block supports robust control wiring, helping reduce maintenance cycles and total cost of ownership over the life of the installation.
Product Information
Extended Description
EPJ505B754T4 Eaton: Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box, Brass, Surface mount, 4 entries, 4-pole, 20A terminal block, 3/4"
Product Name
Eaton Crouse-Hinds series Pauluhn EPJ505 conduit outlet box
Catalog Number
EPJ505B754T4
UPC
662276391741
Product Length/Depth
5.69 in
Product Height
5.69 in
Product Width
3.5 in
Product Weight
9.8 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Trade size
3/4"
Material
Brass
Number of entries
4
Mounting style
Surface
Special features
4-pole, 20A terminal block
Pauluhn EPJ505 Explosionproof Conduit Outlet Boxes catalog page
Eaton Specification Sheet - EPJ505B754T4
Feature → Business Impact → Application: Brass construction provides inherent corrosion resistance, expanding service life in chemical, offshore, and outdoor settings; reduces replacement costs and maintenance downtime while preserving electrical performance. This translates to higher equipment uptime and lower lifecycle costs in petrochemical facilities and outdoor substations. Feature → Business Impact → Application: Four-entry, surface-mount configuration enables rapid installation and neater cable routing, decreasing on-site labor time and minimizing conduit routing errors; ideal for control panels and junctions in fresh- and salt-air environments. Feature → Business Impact → Application: Four-pole, 20A terminal block supports multiple high-current terminations within a compact footprint; improves wiring reliability and reduces the need for intermediate junctions in industrial automation cabinets. Feature → Business Impact → Application: IP66 and NEMA 4X ratings provide robust ingress protection against dust, water jets, and corrosive agents; ensures safe operation in damp plants, wash-down zones, and outdoor equipment enclosures. Feature → Business Impact → Application: 3/4" trade size aligns with common conduit fittings, streamlining procurement and compatibility with Pauluhn EPJ505 series accessories; delivers faster stocking and fewer compatibility issues during panel buildouts. Feature → Business Impact → Application: NEC/CEC compliance and hazardous-location certifications (Class I/II, Div 1/2) streamline approvals and audits, reducing engineering risk and accelerating project timelines in chemical, oil & gas, and power facilities.
Get a Quick Quote for a Eaton EPJ505B754T4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPJ505B754T4?
Enquire Now
FAQs
The EPJ505B754T4 is designed for surface mounting, enabling straightforward installation in restricted spaces. It supports four entries and a 3/4" trade size, with a 4-pole, 20A terminal block to simplify wiring. This configuration minimizes cabling clutter and accelerates panel fabrication while maintaining protection ratings of IP66 and NEMA 4X.
This enclosure features a 20A, 4-pole terminal block and 3/4" trade size, with IP66 and NEMA 4X ratings. It is certified for hazardous locations under NEC/CEC, including Class I, Division 1 and 2, and Class II, Division 1 and 2, supporting safe operation in demanding environments.
Yes. The EPJ505B754T4 is designed for Hazardous/Classified Locations with IP66 and NEMA 4X protection, making it suitable for chemical processing, refining, and similar harsh environments. Brass construction adds corrosion resistance, while surface mounting and the 4-entry design support robust wiring in tight installations common to these sectors.
It meets NEC/CEC standards and carries IP66 and NEMA 4X ratings, facilitating compliance in hazardous and outdoor conditions. The 4-entry, 4-pole design supports compliant, reliable terminations, and the 3/4" trade size aligns with standard conduit fittings, reducing validation effort during audits.
Surface mounting with four entries and a 3/4" trade size reduces field wiring complexity and routing time. Brass construction offers superior corrosion resistance, lowering maintenance frequency in aggressive environments. The 20A, four-pole terminal block provides reliable terminations, while IP66/4X protection minimizes weather-related downtime and inspection costs over the enclosure’s lifecycle.
