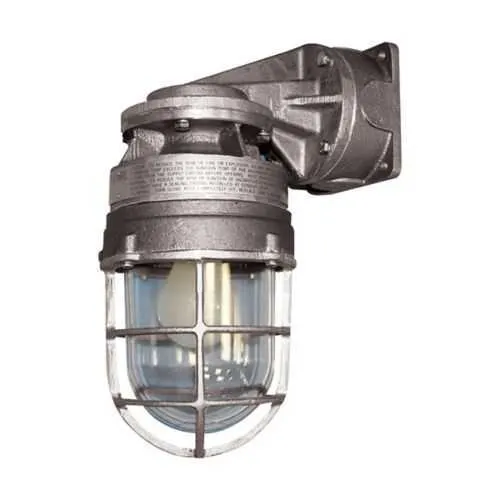

Eaton EPP38A Pauluhn EP Globe and Guard - IP66
Part Number: EPP38A
Quick Summary
Eaton EPP38A Pauluhn EP globe and guard provides rugged pendant lighting for hazardous locations. Engineers often struggle with corrosion, IP66 ingress protection, and compliance in harsh environments. Certified for Hazardous/Classified Locations with NEC/CEC, Class I Division 1 & 2, and NEMA 4X IP66 protection, this fixture delivers reliable performance. Copper-free aluminum guard and tempered glass globe offer durability that reduces maintenance and downtime in industrial settings. Designed for 250 VAC operation with 2 x 27W incandescent lamps, it enables flexible retrofit in challenging spaces while delivering dependable illumination.
Product Information
Extended Description
EPP38A Eaton: Eaton Crouse-Hinds series Pauluhn EP globe and guard, Medium base, 50/60 Hz, Clear tempered glass globe, With cast copper-free aluminum guard, Incandescent, Copper-free aluminum, A-19 max. lamp size, Pendant mount, 250 Vac, 100W
Product Name
Eaton Crouse-Hinds series Pauluhn EP globe and guard
Catalog Number
EPP38A
UPC
662276392052
Product Length/Depth
6.25 in
Product Height
12.5 in
Product Width
6.25 in
Product Weight
6.67 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Copper-free aluminum
Mounting Method
Pendant
Wattage
2 x 27W
Lamp type
Incandescent
Lamp size - max
A-19
Base type
Medium
Guard type
With cast guard
Voltage rating
250 Vac
Frequency rating
50/60 Hz
Globe color
Clear
Globe material
Tempered glass
Guard material
Copper-free aluminum
Crouse-Hinds series Pauluhn EP Fluorescent catalog page
IF LBL1416 - EP Fluorescent - Pendant Mount
Eaton Specification Sheet - EPP38A
Feature → Business Impact → Application: The globe and guard are built from tempered glass and copper-free aluminum, providing impact resistance and corrosion protection, which translates to longer service intervals and lower replacement costs in process environments. This supports uptime goals in chemical plants and refineries. Application: Pendant-mounted fixtures can be positioned for optimal task lighting around reactors and conveyors, improving worker safety and productivity. Feature → Business Impact → Application: IP66 and NEMA 4X protection ensure enclosure integrity during washdowns and harsh cleaning cycles, reducing maintenance downtime and regulatory risk. Application: Ideal for areas requiring rigorous ingress protection and hazardous-location compliance. Feature → Business Impact → Application: 2 x 27W incandescent lamps with a 250 VAC supply and 50/60 Hz compatibility provide dependable light output in older facilities still leveraging incandescent technology. Application: Retrofit in existing Pauluhn EP installations without extensive rewiring. Feature → Business Impact → Application: Copper-free aluminum and tempered glass guard deliver low-maintenance durability, minimizing replacement costs over the product lifecycle. Application: Process plants with frequent vibrations and exposure to chemicals. Feature → Business Impact → Application: Pendant mounting with a medium base, A-19 max lamp, and clear globe enables straightforward installation and a familiar maintenance path for technicians. Application: Fast commissioning in new builds and upgrade projects.
Get a Quick Quote for a Eaton EPP38A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPP38A?
Enquire Now
FAQs
To install the EPP38A, disconnect power, mount the pendant fixture in a suitable enclosure, and attach the copper-free aluminum guard and tempered glass globe per Eaton's installation sheets. Ensure the location meets IP66/NEMA 4X protection and follow NEC/CEC guidelines for Class I Division 1 equipment. Use the included KM screw hardware and verify 250 VAC supply.
EPP38A operates with 2 x 27W incandescent lamps on a 250 VAC supply at 50/60 Hz, with a medium-base socket and an A-19 maximum lamp size. It is designed for pendant mounting and a 6.25 in by 6.25 in by 12.5 in envelope, with copper-free aluminum guard and tempered glass globe. This combination ensures stable illumination in hazardous areas.
Yes. The EPP38A is rated for Hazardous/Classified Locations with NEC/CEC standards and supports Class I Division 1 as well as Division 2 equipment. Coupled with IP66 ingress protection and a NEMA 4X enclosure, it maintains enclosure integrity in harsh processes. For installation, ensure the mounting location complies with the appropriate Division classification and use the pendant configuration to avoid enclosures that trap vapors.
Key certifications for compliance include NEC/CEC standards and listed classifications for Hazardous/Classified Locations. The unit carries NEC hazard ratings Class I Division 1 and Division 2, with IP66 ingress protection and a NEMA 4X enclosure. These attributes ensure regulatory acceptance in chemical plants, refineries, and other high-risk industrial environments, while supporting safe operation under 250 VAC supply.
Maintenance efficiency arises from a durable copper-free aluminum guard and tempered glass globe that resist impact and corrosion, reducing replacement cycles. The IP66 and NEMA 4X protection minimize ingress during washdowns, lowering cleaning-related downtime. Availability of spare globes and guards from Eaton supports quick field replacements, translating to lower maintenance costs and improved system uptime in hazardous locations.
