Eaton EPP39B Globe and Guard - IP66 Hazardous/Div 1
Part Number: EPP39B
Quick Summary

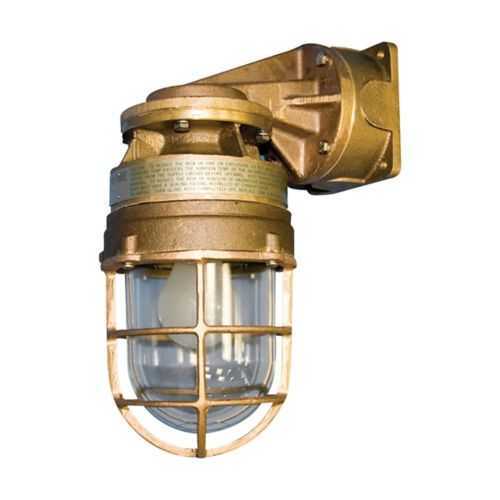

The Eaton EPP39B globe and guard is a rugged pendant lighting assembly engineered for hazardous locations and industrial facilities. This design addresses maintenance pain points by combining a durable brass guard with a tempered glass globe that withstands impacts and contamination. It meets NEC/CEC standards and is rated for Class I, Division 1 and Division 2 environments, with IP66 ingress protection and a NEMA 4X enclosure, ensuring robust performance in wet and dusty settings. For buyers, the combination of a pendant mounting and medium base simplifies installation while delivering reliable illumination in demanding plants. The unit also aligns with typical procurement workflows by supporting 250 VAC operation and 200 W incandescent lamps, and is compatible with A-21 lamp size.
Product Information
Extended Description
EPP39B Eaton: Eaton Crouse-Hinds series Pauluhn EP globe and guard, Medium base, 50/60 Hz, Clear tempered glass globe, With cast brass guard, Incandescent, Brass, A-21 max. lamp size, Pendant mount, 250 Vac, 200W
Product Name
Eaton Crouse-Hinds series Pauluhn EP globe and guard
Catalog Number
EPP39B
UPC
662276392083
Product Length/Depth
6.25 in
Product Height
12.5 in
Product Width
6.25 in
Product Weight
20 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Pendant
Wattage
200W
Lamp type
Incandescent
Lamp size - max
A-21
Base type
Medium
Guard type
With cast guard
Voltage rating
250 Vac
Frequency rating
50/60 Hz
Globe color
Clear
Globe material
Tempered glass
Guard material
Brass
Crouse-Hinds series Pauluhn EP Fluorescent catalog page
IF LBL1416 - EP Fluorescent - Pendant Mount
Eaton Specification Sheet - EPP39B
Durable brass guard paired with a tempered glass globe delivers enhanced physical protection against impact, reducing lamp and globe breakage in demanding environments. This resilience translates to lower maintenance costs and less downtime in production lines where equipment is exposed to dust, moisture, or splash zones. The IP66 rating and NEMA 4X enclosure provide reliable ingress protection against water jets and corrosion, safeguarding critical illumination in outdoor areas, washdowns, and chemical plants. Pendant mounting with a medium base simplifies retrofits and new-install workflows, enabling quicker commissioning and easier wiring integration across existing electrical infrastructure. A-21 max lamp size compatibility and 250 VAC, 50/60 Hz operation ensure seamless integration with standard industrial lighting inventories, improving procurement efficiency and long-term support. Overall, this fixture supports safer work environments while delivering predictable illumination performance in hazardous locations.
Get a Quick Quote for a Eaton EPP39B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPP39B?
Enquire Now
FAQs
The EPP39B is designed for pendant mounting with a medium base and 250 VAC supply. It supports up to a 200W incandescent lamp (A-21 max), making it compatible with standard industrial wiring and switchgear. Its brass guard and tempered glass globe withstand harsh environments, while the IP66/NEMA 4X rating simplifies integration in washdown and dusty areas.
EPP39B carries NEC/CEC standards for hazardous locations with NEC Class I, Division 1 and Division 2 ratings. It is rated IP66 for ingress protection and uses a NEMA 4X enclosure, ensuring safe operation in Class I, Division 1/2 atmospheres and classified locations.
Yes. Its hazardous-location certifications, IP66 ingress protection, and NEMA 4X enclosure make it well-suited for oil & gas environments, refineries, and chemical plants. The pendant mount and compatible A-21 incandescent lamp size support flexible deployment in process areas requiring durable, compliant illumination.
Yes. The EPP39B is specified with IP66 ingress protection and a NEMA 4X enclosure, delivering robust resistance to water, dust, and corrosion in demanding industrial spaces, particularly in hazardous/classified locations where reliable lighting is essential.
Maintenance routines should plan for replacement of the incandescent lamp within the A-21 size limit, using a 200W max lamp at 250 VAC. The tempered globe and brass guard are designed for durability, but periodic cleaning of the globe and inspection of the guard for corrosion or damage will help preserve illumination quality and equipment safety in hazardous areas.
