Eaton EPP44B Globe and Guard - IP66 Hazardous Locations
Part Number: EPP44B
Quick Summary
The Eaton EPP44B globe and guard provides rugged pendant-mounted lighting for hazardous locations in industrial facilities. Maintenance and downtime fears arise from fragile enclosures and non-compliant components that struggle in harsh environments. This fixture meets NEC/CEC requirements and hazardous-location ratings, including Class I Division 1 and 2, IP66, and NEMA 4X, delivering dependable protection. Designed for Brass guard, tempered glass globe, and 2 x 27W incandescent lamps, it integrates smoothly with Pauluhn EP systems to support scalable, safe lighting across plants while reducing maintenance cycles and outage risk.
Product Information
Extended Description

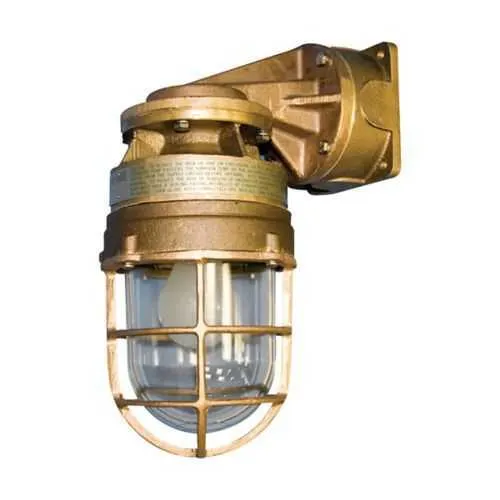

EPP44B Eaton: Eaton Crouse-Hinds series Pauluhn EP globe and guard, Medium base, 50/60 Hz, Clear tempered glass globe, With cast brass guard, Incandescent, Brass, A-19 max. lamp size, Pendant mount, 30° angled reflector, 250 Vac, 100W
Product Name
Eaton Crouse-Hinds series Pauluhn EP globe and guard
Catalog Number
EPP44B
UPC
662276392144
Product Length/Depth
6.25 in
Product Height
12.5 in
Product Width
6.25 in
Product Weight
21 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Pendant
Reflector type
30° angle
Wattage
2 x 27W
Lamp type
Incandescent
Lamp size - max
A-19
Base type
Medium
Guard type
With cast guard
Voltage rating
250 Vac
Frequency rating
50/60 Hz
Globe color
Clear
Globe material
Tempered glass
Guard material
Brass
Crouse-Hinds series Pauluhn EP Fluorescent catalog page
IF LBL1416 - EP Fluorescent - Pendant Mount
Eaton Specification Sheet - EPP44B
Brass guard and tempered glass globe deliver durable protection against impact and moisture in exposed areas, reducing glass breakage and guarding critical components; this translates to lower maintenance costs and less downtime in busy production lines. Pendant mounting with a 30° reflector improves light distribution where overhead fixtures must cover work zones, boosting visibility for operators and inspectors while simplifying retrofits in existing ceilings. The 2 x 27W incandescent lamps on a medium base maximize compatibility with established inventory and spare-part ecosystems, enabling quick lamp replacement and predictable performance without the need for specialized LED replacements in legacy installations. IP66 and NEMA 4X ratings provide robust dust, splash, and corrosion resistance for coastal plants, chemical processing, and other harsh environments, helping meet NEC/CEC compliance with confidence. With a compact footprint (6.25 in L, 6.25 in W) and a 12.5 in height, this unit fits pendant grids and supports scalable lighting layouts across facilities.
Get a Quick Quote for a Eaton EPP44B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EPP44B?
Enquire Now
FAQs
The EPP44B uses a pendant mounting method and a medium base for incandescent lamps up to 100 W total (2 x 27 W). The 30° reflector provides targeted illumination while preserving compatibility with standard A-19-sized lamps within the specified wattage. This configuration supports retrofit projects in facilities with existing Pauluhn EP fixtures and standard Edison sockets, reducing inventory complexity and downtime during upgrades.
Key ratings include 250 VAC operation and 50/60 Hz frequency, with an IP66 ingress protection rating and NEMA 4X enclosure protection. The fixture is designed for hazardous locations with NEC/CEC compliance and Class I, Division 1 and 2 ratings, ensuring safe operation in ignition-hazard areas while maintaining durable performance in harsh industrial environments.
The EPP44B is ideal for chemical processing, oil and gas, mining, and other hazardous-location facilities where robust protection, corrosion resistance, and reliable light distribution are essential. Its brass guard, tempered glass globe, and IP66/NEMA 4X ratings make it suitable for splash-prone, dusty, and vibration-intensive spaces, including outdoor-rated pendant installations and overhead work areas.
The fixture supports NEC/CEC compliance and Class I, Division 1 and Division 2 hazardous locations ratings. It is built to meet IP66 and NEMA 4X standards, offering dependable protection against dust, water, and corrosion, which helps facilities maintain regulatory compliance while reducing risk in volatile environments.
Maintenance benefits include straightforward lamp replacement with standard incandescent modules, durable brass guard construction for extended service life, and compatible mounting hardware for quick installations. The robust enclosure minimizes unplanned downtime in hazardous areas, delivering a favorable total cost of ownership by reducing replacement frequency, improving uptime, and supporting scalable lighting layouts across multiple plant locations.
