Eaton ER04-100CF2PR Enclosed Rotary Disconnect Switch - NEMA 4, 600 V
Part Number: ER04-100CF2PR
Quick Summary
ER04-100CF2PR enclosed rotary disconnect switch provides safe electrical isolation for industrial control panels. It enhances maintenance workflows by enabling quick, lockout-capable power shutoff to minimize downtime and protect personnel. This unit is CE marked and rated for NEMA 4 enclosures with a 600 V, 100 A capability, ensuring robust protection in harsh environments. Designed to work seamlessly with Eaton Bussmann series components, it supports compliant operation, predictable lifecycle costs, and straightforward integration into existing control architectures. Its compact footprint, pistol-style handle, and CF fuse-type compatibility further simplify installation in crowded panels, delivering reliable protection without sacrificing efficiency.
Product Information
Extended Description

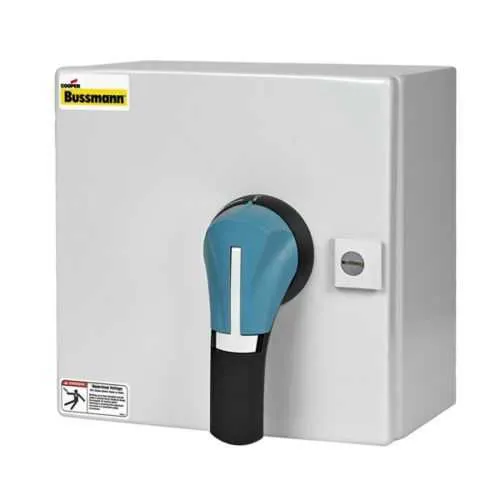

ER04-100CF2PR Eaton: Eaton Bussmann series enclosed rotary disconnect switch, Fuse type CF, Pistol handle, 600V, 100A, Two-pole, Red, NEMA rating 04
Product Name
Eaton Bussmann series enclosed rotary disconnect switch
Catalog Number
ER04-100CF2PR
UPC
051712748636
Product Length/Depth
11.8 in
Product Height
10.8 in
Product Width
9.84 in
Product Weight
6 lb
Compliances
CE Marked
Amperage Rating
100A
NEMA rating
NEMA 4
Voltage rating
600 V
Special features
Fuse type CF, Pistol handle
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - ER04-100CF2PR
Feature: Enclosed rotary disconnect switch, two-pole, fuse type CF, pistol handle, 600 V, 100 A, NEMA 4. Business Impact: Provides safe and deliberate power isolation, reducing arc flash exposure and enabling faster maintenance cycles in high-stakes environments. Application: Control panels and machine enclosures in manufacturing lines where reliable service disconnects are required. Feature: CE Marked, rugged enclosure with precise dimensions. Business Impact: Ensures global compliance and consistent performance in both indoor and outdoor installations, lowering regulatory risk. Application: OEM machinery, outdoor equipment, and industrial automation projects. Feature: Compact enclosure (11.8 in L × 10.8 in H × 9.84 in W) and 6 lb weight. Business Impact: Eases cabinet integration and reduces installation time and freight costs. Application: Retrofit projects and new panel builds with constrained space. Feature: Pistol-style handle and clear visual cues (red color) for fast recognition. Business Impact: Improves operator efficiency and reduces incorrect operation during startup/shutdown sequences. Application: Frequent hand actuation in control rooms and field installations. Feature: Compatibility with Bussmann series components and fuse-type CF. Business Impact: Streamlines spare parts planning, enhances protective coordination, and supports end-to-end protection strategy. Application: Electrical protection schemes in industrial facilities and automotive manufacturing lines.
Get a Quick Quote for a Eaton ER04-100CF2PR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ER04-100CF2PR?
Enquire Now
FAQs
Begin by verifying the two-pole configuration and that the panel enclosure meets NEMA 4 protection. Mount the unit on a flat panel surface with adequate clearance, connect line and load conductors according to the wiring diagram, and secure the pistol handle for easy actuation. Ensure compatible fuse coordination with CF-type fuses and verify CE compliance during final commissioning. Properly size wiring, provide appropriate thread engagement for mounting hardware, and test operation with the control circuit de-energized.
The ER04-100CF2PR is rated for 100 A at 600 V, two-pole operation, and follows NEMA 4 enclosure standards. It uses fuse type CF for protection coordination and is CE marked for compliance. This combination supports robust service disconnect functionality in both indoor and outdoor industrial environments, with clear operability in standard control panels and machines.
Yes. The device carries a NEMA 4 rating, which provides protection against dust, water ingress, and mild weather exposure when installed properly. This makes it appropriate for outdoor control panels and machine enclosures in industrial settings, provided the installation complies with mounting guidelines and local electrical codes.
The ER04-100CF2PR is CE marked, indicating compliance with applicable European directives for safety and environmental aspects. Its NEMA 4 enclosure rating further supports compliance in regions adopting NEMA standards for outdoor and rugged environments. When selecting this device, ensure it meets your regional electrical standards and installation practices as part of the overall protection strategy.
Regular inspection of the CF fuse elements, pistons, and mounting hardware helps maintain protective coordination and actuation reliability. Since the unit integrates with Eaton Bussmann components, consolidating spares and standardizing the CF fuse family can lower stocking costs. The robust enclosure and CE compliance minimize downtime due to nonconformance and simplify replacement in aging control systems.
