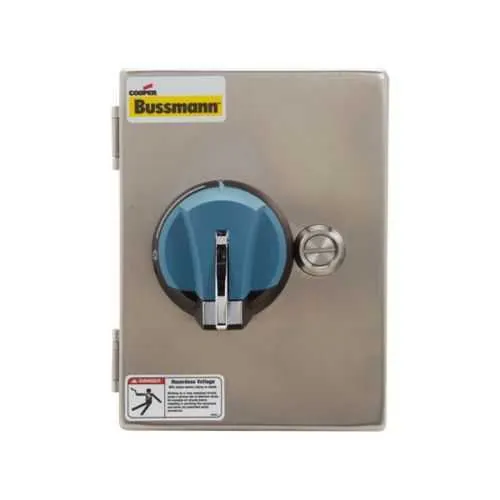

Eaton ER4X-030CC3PR Enclosed Rotary Disconnect - NEMA 4X
Part Number: ER4X-030CC3PR
Quick Summary
The Eaton ER4X-030CC3PR enclosed rotary disconnect switch provides safe single-point isolation for industrial power circuits. This design reduces downtime during maintenance and fuse changes by offering a robust, enclosed solution that minimizes exposure to arcs and dust. It carries CE marking and UL 98/cULus pending, with a rugged NEMA 4X enclosure for damp or outdoor environments, ensuring compliance and reliability. For manufacturers and integrators, the combination of Class CC fusing, a pistol-style handle, and a compact footprint supports safer installations, faster servicing, and streamlined procurement across control panels and motor-disconnect applications.
Product Information
Extended Description
ER4X-030CC3PR Eaton: Eaton Bussmann series enclosed rotary disconnect switch, Fuse type CC, Pistol handle, 600V, 30A, Three-pole, 50/60 Hz, Red, Class CC, NEMA rating 4X, Red
Product Name
Eaton Bussmann series enclosed rotary disconnect switch
Catalog Number
ER4X-030CC3PR
UPC
051712747301
Product Length/Depth
9.84 in
Product Height
8.91 in
Product Width
7.87 in
Product Weight
2.2 lb
Compliances
CE Marked cULus Listed
Certifications
UL 98 cULus Pending
Amperage Rating
30A
Frequency rating
50/60 Hz
NEMA rating
NEMA 4X
Voltage rating
600 V
Handle color
Red
Fuse configuration
Class CC
Special features
Fuse type CC, Pistol handle
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - ER4X-030CC3PR
Feature → Business Impact → Application: Enclosed rotary disconnect design with a NEMA 4X enclosure protects operators and equipment from moisture, dust, and washdown environments, reducing maintenance costs and extending panel life. Application: outdoor control panels and wet environments benefit from enhanced reliability and safety; Keywords: enclosed rotary disconnect, NEMA 4X, outdoor electrical disconnect. Feature → Business Impact → Application: Class CC fuse configuration paired with a pistol handle enables rapid, safe fuse changes and minimized arc exposure, shortening downtime and improving uptime metrics. Application: motor control centers and machine panels requiring fast, secure isolation; Keywords: Class CC fuse, pistol handle, fuse protection. Feature → Business Impact → Application: 600 V, 30 A, three-pole rating supports common industrial control circuits with predictable protection, reducing nuisance trips and ensuring compatibility with standard automation hardware. Application: servo drives, starters, and panel boards; Keywords: 600 V rating, 30 A, three-pole. Feature → Business Impact → Application: CE marking and UL 98/cULus pending provide regulatory alignment and safety assurances for regulated facilities, simplifying audits and compliance reporting. Application: manufacturing, food and beverage, and pharmaceuticals; Keywords: CE marked, UL 98, cULus pending. Feature → Business Impact → Application: Compact dimensions (9.84 in L, 8.91 in H, 7.87 in W) and a 2.2 lb weight ease retrofits and field installations, reducing mounting complexity and changes to existing panels. Application: panel upgrades and new machine builds; Keywords: enclosure footprint, lightweight design, installation efficiency. Feature → Business Impact → Application: Red handle offers high-visibility manual operation, improving operator responsiveness and safety in high-traffic control zones. Application: process lines and packaging machinery where quick, visible actuation is critical; Keywords: pistol handle, safety, visibility.
Get a Quick Quote for a Eaton ER4X-030CC3PR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ER4X-030CC3PR?
Enquire Now
FAQs
The ER4X-030CC3PR is designed for secure mounting within standard electrical panels or equipment enclosures. Plan for enough clearance to operate the red pistol handle and to perform fuse replacement safely. Consider maintaining recommended DIN rail or chassis mounting clearances plus 2–3 inches of ventilation around the enclosure to avoid overheating and facilitate future maintenance.
This switch is rated for 600 V and 30 A, with a 50/60 Hz frequency rating and a three-pole configuration. These specs support typical motor starter, contactor, and control circuit isolation tasks in industrial panels. The Class CC fuse protection aids in fast, predictable interrupting while maintaining coordination with downstream protection devices.
Yes. The unit carries a NEMA 4X enclosure rating, which provides protection against rain, splashing water, and corrosion in damp or washdown environments. This makes it well-suited for outdoor switchgear, food and beverage processing areas, and other harsh industrial settings where reliable isolation is required.
The product is CE marked and listed to UL/cUL standards, with UL 98 certification noted and cULus listed (pending). These certifications support compliance in many regulatory environments, streamline third‑party audits, and validate safety for control panels, reducing risk during procurement and installation.
The enclosed design minimizes contamination risk, reducing maintenance frequency. Class CC fusing together with a pistol handle enables faster fuse replacement, lowering downtime costs. The durable NEMA 4X enclosure and robust electrical ratings help extend service intervals, delivering lower lifecycle costs and predictable performance in demanding automation environments.
