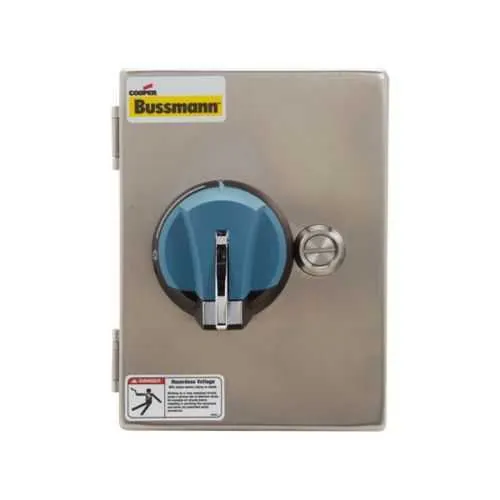

Eaton ER4X-060CF2PB Enclosed Rotary Disconnect - NEMA 4X
Part Number: ER4X-060CF2PB
Quick Summary
The Eaton ER4X-060CF2PB enclosed rotary disconnect switch isolates power to equipment in control panels quickly and safely. For maintenance teams, miswired or undersized disconnects drive downtime and safety risks during routine shutdowns. It carries cULus Listed status and UL 98 certification (with cULus pending), and its NEMA 4X enclosure is built for washdown and harsh environments. Designed around Class CF fusing and a 600 V rating, it supports reliable, code-compliant isolation in two-pole configurations. In practice, installers gain faster installation, predictable performance, and lower long-term maintenance costs through standard Bussmann series design. This combination supports scalable control architectures and minimizes retrofit risk across diverse industrial environments.
Product Information
Extended Description
ER4X-060CF2PB Eaton: Eaton Bussmann series enclosed rotary disconnect switch, Fuse type CF, Pistol handle, 600V, 60A, Two-pole, 50/60 Hz, Black, Class CF, NEMA rating 4X, Black
Product Name
Eaton Bussmann series enclosed rotary disconnect switch
Catalog Number
ER4X-060CF2PB
UPC
051712747127
Product Length/Depth
9.84 in
Product Height
8.91 in
Product Width
7.87 in
Product Weight
2.5 lb
Compliances
cULus Listed
Certifications
UL 98 cULus Pending
Amperage Rating
60A
Frequency rating
50/60 Hz
NEMA rating
NEMA 4X
Voltage rating
600 V
Handle color
Black
Fuse configuration
Class CF
Special features
Fuse type CF, Pistol handle
ER4X-060CF2PB~60CF, ENC CCP, 4X, 2POLE
ER4X-060CF2PB~60CF, ENC CCP, 4X, 2POLE
Eaton Specification Sheet - ER4X-060CF2PB
Feature → The ER4X-060CF2PB uses a rugged enclosed rotary disconnect switch configured for two-pole operation with a 60 A amperage rating. Business Impact → This delivers predictable, fast power isolation with high reliability, reducing downtime during maintenance and safeguarding personnel. Application → Ideal for industrial control panels and switchgear in manufacturing lines where 600 V systems require robust isolation and a compact footprint. Feature → NEMA 4X enclosure and cULus Listed compliance provide rugged protection against moisture, dust, and washdown. Business Impact → Enhances durability and simplifies regulatory conformity, lowering the risk of non-compliance penalties. Application → Suitable for harsh environments, outdoor installations, and washdown areas in food processing or chemical plants. Feature → Class CF fuse configuration and a pistol-style handle optimize safety and fuse interchangeability. Business Impact → Improves safe operation, faster fuse changes, and reduced maintenance time. Application → Critical in safety-critical circuits where quick disconnection and clear visual indication are required. Feature → Compact dimensions (9.84 in L × 8.91 in H × 7.87 in W) with a weight of 2.5 lb. Business Impact → Simplifies panel integration and minimizes enclosure footprint, enabling scalable configurations. Application → Fits tightly in control cabinets where space is at a premium, enabling multi-point isolation arrays. Feature → Compatibility with Eaton Bussmann series components and UL 98/cULus listed design improves lifecycle reliability. Business Impact → Streamlines sourcing, reduces spare-part variety, and supports long-term maintenance planning. Application → Suitable for retrofit projects and new installations in process lines requiring standardized components.
Get a Quick Quote for a Eaton ER4X-060CF2PB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ER4X-060CF2PB?
Enquire Now
FAQs
When mounting the ER4X-060CF2PB, ensure the panel provides sufficient clearance for the 9.84 inch length and 8.91 inch height, plus access for the pistol-style handle. Use proper mounting hardware, maintain clear labeling for the Class CF fuse configuration, and verify 600 V rating compatibility with your bus and downstream devices. Adequate grounding and adherence to UL 98 guidelines are essential for compliance.
Yes. The ER4X-060CF2PB is rated for 600 V, 60 A, at 50/60 Hz, with a two-pole configuration and a Class CF fuse arrangement. This supports reliable isolation in typical industrial distributions and switchgear, while remaining compatible with Bussmann series fuses and standard industrial controls. Installation should observe manufacturer torque specs and wiring practices for safe operation.
Yes. The enclosure is rated NEMA 4X, designed for washdown and exposure to harsh environments. For outdoor or damp installations, select appropriate mounting and sealing practices, ensure protection against moisture ingress, and meet local codes. The cULus Listed status further supports compliance in regulated facilities.
The unit features cULus Listed compliance and UL 98 certification (UL 98 status pending at the time of listing). This combination supports regulatory acceptance in many North American facilities, particularly where control cabinets require UL 98 enclosure standards and protective circuit disconnection. Always verify current certification status during procurement and installation planning.
The ER4X-060CF2PB offers a robust, standardized solution with 60 A capacity and a 600 V rating, reducing downtime and maintenance complexity in aging systems. Its Class CF fuse compatibility, pistol handle ergonomics, and NEMA 4X enclosure lower field servicing time, while cULus listed compliance helps mitigate regulatory risk. Long-term savings arise from easier part sourcing and fewer alternative-discrepancies during spares management.
