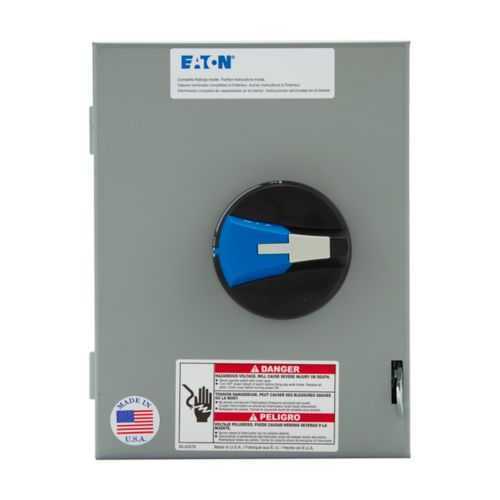

ER53016UG Eaton Enclosed Rotary Disconnect Switch - UL Listed
Part Number: ER53016UG
Quick Summary
ER53016UG Eaton enclosed rotary disconnect switch provides reliable motor isolation for control panels and machine systems. This compact, three-pole device enhances operator safety during maintenance while minimizing downtime. It addresses common industrial challenges like unclear interlocks and fragile wiring that slow startups and create safety gaps. With UL Listed and CSA Certified ratings, the unit meets essential electrical-safety standards for panel builders and electricians. Its NEMA 1 painted-steel enclosure protects against dust and light moisture in indoor environments, while its 16 A rating and HP range up to 10 hp ensure compatibility with a broad class of motors. The result is faster installations, predictable performance, and lower lifecycle costs for equipment fleets.
Product Information
Extended Description
ER53016UG Eaton: Eaton enclosed rotary disconnect switch, 16A, NEMA 1, Painted steel, Max HP:3, 5, 10, 10 hp (@208,240,480,600 V), Three-pole, Product category: enclosed rotary non-fusible, R-Series, 600 V
Product Name
Eaton enclosed rotary disconnect switch
Catalog Number
ER53016UG
UPC
786685465166
Product Length/Depth
10.4 in
Product Height
6.7 in
Product Width
7.2 in
Product Weight
6.2 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed CSA Certified
Enclosure
NEMA 1
Enclosure material
Painted steel
Number of poles
Three-pole
Series
R-Series
Type
Enclosed rotary disconnect
Amperage Rating
16A
HP rating - max
3, 5, 10, 10 hp (@208,240,480,600 V)
Voltage rating
600 V
Product Category
Enclosed rotary non-fusible
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Switching Devices Flex Center
Eaton Specification Sheet - ER53016UG
Feature: 16 A amperage rating with a 600 V voltage rating. Impact: Safe, reliable motor isolation across a wide voltage band reduces fault risk and improves control reliability. Application: conveyors, pumps, and process equipment. Feature: Three-pole design within an enclosed rotary non-fusible format. Impact: Ensures proper three-phase motor control and straightforward wiring in control panels. Application: motor control centers and machine panels. Feature: NEMA 1 enclosure made from painted steel. Impact: Robust indoor protection against dust and incidental moisture, enabling long service life in workshop and plant environments. Application: indoor electrical assemblies. Feature: R-Series, enclosed rotary disconnect with HP ratings up to 10 hp at multiple voltages. Impact: Versatile sizing for common industrial motors, reducing the need for multiple parts. Application: standard motor drives and line-start applications. Feature: Compact dimensions and weight of 6.2 lb with 10.4 in length, 7.2 in width, and 6.7 in height. Impact: Easy installation and retrofit in existing panels without heavy lifting. Application: panel retrofit projects and new builds. Feature: Certifications UL Listed and CSA Certified. Impact: Regulatory compliance support for safety and documentation, smoothing procurement and audits. Application: electrical panels targeting code compliance.
