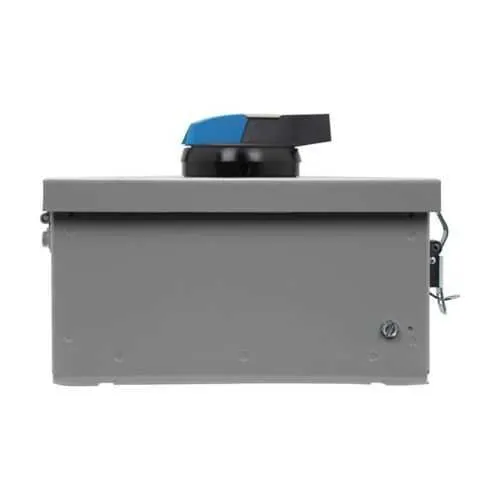

Eaton ER53060UD Enclosed Rotary Disconnect - UL Listed
Part Number: ER53060UD
Quick Summary
The Eaton ER53060UD enclosed rotary disconnect switch provides safe, manual isolation for 60 A circuits in industrial panels. Maintenance teams struggle with arc-flash risk and inconsistent lockout procedures, which this unit helps mitigate through rugged enclosure and clear labeling. UL Listed and CSA Certified support regulatory compliance, while NEMA 12 and NEMA 3R options offer indoor protection and rainproof flexibility for varied environments. As a three-pole, 600 V device in Eaton's R-Series, it integrates with existing motor control architectures, delivering reliable isolation with straightforward installation and reduced total cost of ownership.
Product Information
Extended Description
ER53060UD Eaton: Eaton enclosed rotary disconnect switch, 60 A, NEMA 12/3R, Painted galvanized steel, Max HP:15, 15, 30, 30 hp (@208,240,480,600 V), Three-pole, Product category: enclosed rotary non-fusible, R-Series, 600 V
Product Name
Eaton enclosed rotary disconnect switch
Catalog Number
ER53060UD
UPC
786685466064
Product Length/Depth
15.4 in
Product Height
8.4 in
Product Width
10 in
Product Weight
8.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed CSA Certified
Catalog Notes
NEMA Type 12 enclosures (16–80A) can be field modified to meet NEMA Type 3R rainproof requirements when a factory-provided drain hole is opened.
Enclosure
NEMA 12, NEMA 3R
Enclosure material
Painted galvanized steel
Number of poles
Three-pole
Series
R-Series
Type
Enclosed rotary disconnect
Amperage Rating
60A
HP rating - max
15, 15, 30, 30 hp (@208,240,480,600 V)
Voltage rating
600 V
Product Category
Enclosed rotary non-fusible
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Switching Devices Flex Center
Eaton Specification Sheet - ER53060UD
Selling Policy 25-000 - Distribution and Control Products and Services
The ER53060UD delivers rugged, enclosed isolation that protects personnel and equipment, reducing arc-flash exposure and enabling safer maintenance workflows in demanding plant environments. Its 60 A amperage rating and max HP ratings of up to 30 hp at multiple voltages ensure compatibility with a wide range of 3-phase motors, simplifying panel design and procurement. The NEMA 12/3R enclosure combination provides indoor dust protection and rainproof capability where field modification is feasible, improving uptime in varied facility locations. The three-pole design guarantees proper three-phase switching, enhancing motor control reliability and protection against mis-wiring. With painted galvanized steel construction, the unit resists corrosion in standard industrial environments, while the compact footprint (15.4 in L × 10 in W × 8.4 in H) supports streamlined installation and service access. The device’s R-Series lineage enables straightforward integration with existing Eaton components and spare-part ecosystems, accelerating project timelines and reducing lifecycle costs. A one-year warranty (or 18 months from shipment) adds a further layer of supplier confidence for maintenance planning.
Get a Quick Quote for a Eaton ER53060UD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ER53060UD?
Enquire Now
FAQs
ER53060UD is a three-pole, 60 A disconnect designed for NEMA 12 or NEMA 3R environments. For panel compatibility, verify the 15.4 in length, 10 in width, and 8.4 in height fit within the enclosure and mounting pattern. Ensure proper locking provisions and wiring clearances per NEC and UL guidelines; the unit’s drain hole modification enables rainproof operation in Type 3R applications when required.
ER53060UD supports up to 60A with HP ratings of 15/15/30 hp (@208/240/480/600 V). It is rated for 600 V and configured as a three-pole enclosed rotary non-fusible switch. These specs support safe isolation for 3-phase motors and equipment in industrial automation, simplifying motor control designs and enabling straightforward sizing for typical plant loads.
ER53060UD uses NEMA 12 and NEMA 3R enclosure ratings, which provide indoor dust protection and rainproof capability, respectively. For outdoor or damp locations, choose the 3R option (with a field-modifiable drain hole) to achieve rainproof performance. Always verify installation in accordance with local codes and Eaton guidelines for environmental exposure.
The unit is UL Listed and CSA Certified, signaling conformance to recognized safety and performance standards. These certifications help streamline audits, support compliance with electrical codes, and improve acceptance by procurement teams seeking reliable, regulator-approved equipment for motor control and power distribution in industrial settings.
Using ER53060UD can reduce maintenance time and safety risk due to improved arc-flash protection and easier lockout procedures. Its compatibility with Eaton’s R-Series simplifies spare parts planning and system expansion, while the enclosed design minimizes environmental exposure. The combination of UL/CSA certification, a compact footprint, and straightforward installation contributes to lower lifecycle costs and faster project delivery.
