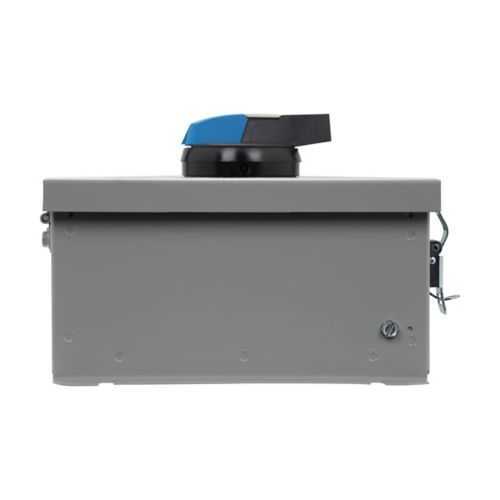

Eaton ER53060UG Rotary Disconnect CSA UL Certified
Part Number: ER53060UG
Quick Summary
The Eaton ER53060UG enclosed rotary disconnect switch provides a safe, fast power isolation for three-phase motor circuits. Maintenance teams often struggle with compact, durable disconnects that fit standard enclosures and demand predictable uptime in demanding environments. CSA Certified and UL Listed help ensure regulatory compliance, while a NEMA 1 painted steel enclosure supports indoor industrial use. Designed for panel builders and OEMs, it delivers reliable motor-control protection with straightforward installation, robust safety, and scalable HP ratings. In practice, this means reduced downtime, easier compliance documentation, and a compact footprint that fits most industrial control cabinets. The 60 A rating and 600 V capability align with common industrial drives, while three-pole design simplifies wiring and maintenance.
Product Information
Extended Description
ER53060UG Eaton: Eaton enclosed rotary disconnect switch, 60 A, NEMA 1, Painted steel, Max HP:15, 15, 30, 30 hp (@208,240,480,600 V), Three-pole, Product category: enclosed rotary non-fusible, R-Series, 600 V
Product Name
Eaton enclosed rotary disconnect switch
Catalog Number
ER53060UG
UPC
786685466002
Product Length/Depth
14.8 in
Product Height
7 in
Product Width
9.5 in
Product Weight
7.8 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Certified UL Listed
Enclosure
NEMA 1
Enclosure material
Painted steel
Number of poles
Three-pole
Series
R-Series
Type
Enclosed rotary disconnect
Amperage Rating
60A
HP rating - max
15, 15, 30, 30 hp (@208,240,480,600 V)
Voltage rating
600 V
Product Category
Enclosed rotary non-fusible
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Switching Devices Flex Center
Eaton Specification Sheet - ER53060UG
Feature: Enclosed rotary non-fusible design. Business Impact: Provides a rugged, code-compliant isolation point that minimizes fault propagation and improves personnel safety during servicing. Application: Ideal for panel boards and motor control centers in manufacturing lines. Feature: 60 A, 600 V, three-pole configuration (HP ratings 15/15/30/30 across voltages). Business Impact: Supports direct compatibility with common industrial motors, reducing oversizing and lowering installed cost. Application: Suitable for general purpose motor drives and line-start applications in conveyors, pumps, and fans. Feature: NEMA 1 painted steel enclosure. Business Impact: Delivers indoor protection from dust and incidental contact, enabling durable operation in standard plant environments. Application: Mount in control panels, junction boxes, and switchgear enclosures. Feature: Certifications CSA Certified, UL Listed. Business Impact: Ensures regulatory compliance, simplifies procurement, and accelerates audits. Application: Suitable for facilities requiring recognized safety standards. Feature: Compact footprint — 14.8 in L × 9.5 in W × 7 in H; weight 7.8 lb. Business Impact: Enables easier installation, retrofit compatibility, and reduced panel footprint. Application: Fits typical electrical enclosures and retrofit scenarios. Feature: Warranty of 1 year from installation or 18 months from shipment. Business Impact: Reduces total cost of ownership and boosts supplier confidence. Application: Useful for service agreements and long-term maintenance planning.
Get a Quick Quote for a Eaton ER53060UG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ER53060UG?
Enquire Now
FAQs
To install the ER53060UG, verify your panel accepts a three-pole, 60 A disconnect and that the enclosure mounting space is clear. Mount the unit securely, connect the incoming and outgoing conductors according to the 600 V rating and HP correlations, and tighten all terminations to the recommended torque. Apply lockout/tagout procedures during service, and perform a functional test to confirm proper isolation and interlock operation.
The ER53060UG is rated for 60 A at 600 V and configured as a three-pole disconnect. It accommodates motor loads up to 15, 15, 30, and 30 horsepower at 208, 240, 480, and 600 V respectively. This makes it well suited for standard industrial motors in conveyors, pumps, and fans, enabling safe disconnection without oversizing.
Yes. The ER53060UG features a NEMA 1 painted steel enclosure designed for indoor environments. It provides basic protection against dust and incidental contact, making it appropriate for standard factory, workshop, and panel environments where weather exposure is not a factor.
The ER53060UG is CSA Certified and UL Listed, indicating adherence to recognized electrical safety standards. These certifications simplify procurement, support regulatory compliance, and facilitate audits and inspections in regulated facilities, ultimately reducing risk in the installation and operation of the disconnect switch.
Warranty coverage follows Eaton Selling Policy 25-000: one year from installation or eighteen months from shipment, whichever occurs first. For maintenance, inspect terminations and wiring torque at scheduled intervals, keep the enclosure clean, verify interlocks and indicators, and replace worn components as needed. Regular checks help sustain reliability and minimize unplanned downtime.
