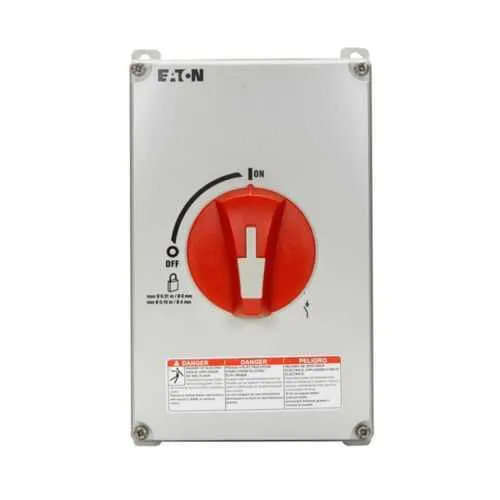

Eaton ER53060UPGR Enclosed Rotary Disconnect - NEMA 4X
Part Number: ER53060UPGR
Quick Summary
Eaton enclosed rotary disconnect switch ER53060UPGR is designed to safely isolate three-phase motors in industrial control panels. This solution helps reduce unplanned downtime by providing reliable, mechanical separation during maintenance and shutdowns. UL Listed and cUL Certified components, along with a NEMA 4X polycarbonate enclosure, ensure strong regulatory compliance and washdown resilience. For engineers and OEMs, the compact footprint and R-Series compatibility support faster panel design and safer operation, while delivering dependable protection for low- to mid-voltage motor circuits.
Product Information
Extended Description
ER53060UPGR Eaton: Eaton enclosed rotary disconnect switch, 60 A, Gray cover, red handle, NEMA 4X, Polycarbonate non-metallic, Max HP:15, 15, 30, 30 hp (@208,240,480,600 V), Three-pole, Product category: enclosed rotary non-fusible, R-Series, 600 V
Product Name
Eaton enclosed rotary disconnect switch
Catalog Number
ER53060UPGR
UPC
786685403496
Product Length/Depth
10 in
Product Height
5 in
Product Width
5.5 in
Product Weight
2.12 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
cUL Certified UL Listed
Catalog Notes
Gray Cover, Red Handle.
Color
Gray cover Red handle
Enclosure
NEMA 4X
Enclosure material
Polycarbonate non-metallic
Handle color
Red
Number of poles
Three-pole
Series
R-Series
Type
Enclosed rotary disconnect
Amperage Rating
60A
HP rating - max
15, 15, 30, 30 hp (@208,240,480,600 V)
Voltage rating
600 V
Product Category
Enclosed rotary non-fusible
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Switching Devices Flex Center
Eaton Specification Sheet - ER53060UPGR
Feature: 60A amperage rating with three-pole configuration supports up to 15–30 hp motors at a range of voltages. Business Impact: Enables safe, code-compliant motor isolation without oversized devices, reducing wiring complexity and installation costs. Application: Ideal for 60A protected feeds in industrial drives and control panels. Feature: NEMA 4X polycarbonate non-metallic enclosure with gray cover and red handle. Business Impact: Delivers superior weather, washdown, and chemical resistance, extending service life in harsh environments. Application: Suitable for manufacturing floors, process plants, and outdoor-rated installations. Feature: Compact dimensions—10 in length, 5 in height, 5.5 in width—with a weight of 2.12 lb. Business Impact: Improves panel density and simplifies retrofits in limited space, cutting shipping and handling costs. Application: OEM enclosures and retrofit projects where space is at a premium. Feature: Three-pole, 600 V maximum rating with HP ratings of 15, 15, 30, 30 at various voltages. Business Impact: Supports a broad motor and drive portfolio, enabling flexible control strategies and lower total cost of ownership. Application: Motor control centers and switchgear assemblies requiring robust isolation. Feature: R-Series lineage with enclosure notes and UL/cUL certifications. Business Impact: Aligns with Eaton’s ecosystem for easier sourcing, maintenance, and warranty coverage. Application: Panel builders and system integrators seeking consistent parts across installs.
Get a Quick Quote for a Eaton ER53060UPGR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ER53060UPGR?
Enquire Now
FAQs
ER53060UPGR is a three-pole, 60A disconnect designed for three-phase motor protection up to 600 V. Its NEMA 4X enclosure and R-Series lineage simplify panel integration, ensuring compliant isolation, safe maintenance, and straightforward wiring in standard motor control layouts.
This unit is UL Listed and cUL Certified, with a 600 V maximum rating and 60 A amperage. The enclosure is NEMA 4X, constructed from polycarbonate non-metallic material, and the device aligns with enclosed rotary non-fusible switch configurations for reliable, compliant operation.
Dimensions are 10 in long, 5 in high, and 5.5 in wide, with a weight of 2.12 lb. It uses a gray cover with a red handle and is designed for easy mounting in control panels or switchgear. Plan for three-pole wiring and confirm 600 V rating matches your drive system.
Yes. ER53060UPGR belongs to Eaton’s R-Series and is designed to integrate with compatible enclosed rotary non-fusible products. This ensures consistent performance, spare-part compatibility, and simplified maintenance across Eaton-based control architectures.
By delivering reliable isolation with a rugged NEMA 4X enclosure and UL/cUL certification, the ER53060UPGR reduces unplanned downtime, lowers maintenance overhead, and minimizes risk during servicing. Its compact size and light weight also streamline installation, shortening retrofits and panel redesign efforts.
