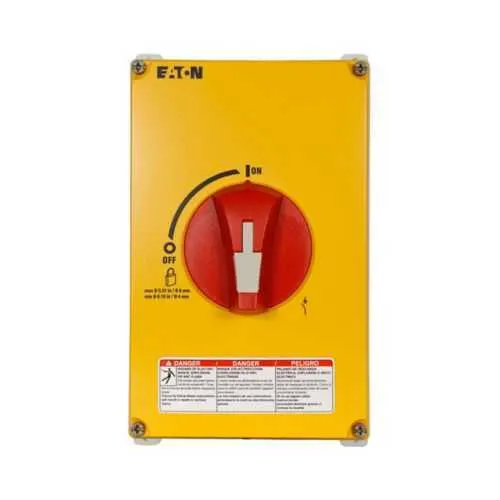

Eaton ER53060UPYR Enclosed Rotary Disconnect - UL Listed
Part Number: ER53060UPYR
Quick Summary
The Eaton enclosed rotary disconnect switch ER53060UPYR provides a robust 60 A isolation solution for motor circuits in industrial panels. Engineers often battle downtime and safety concerns during maintenance; this device helps by delivering a rugged, clearly labeled option that installs with minimal wiring adjustments. It carries UL Listed and cUL Certified marks alongside a NEMA 4X enclosure, offering weather and dust resistance in harsh plant environments. With a three-pole design and a 600 V rating, the ER53060UPYR supports reliable disconnection across multi-voltage systems, delivering safety, compliance, and predictable performance for panel builders and maintenance teams. The combination of clear catalog labeling and durable construction translates to lower total cost of ownership and faster service windows for your facilities.
Product Information
Extended Description
ER53060UPYR Eaton: Eaton enclosed rotary disconnect switch, 60 A, Yellow cover, red handle, NEMA 4X, Polycarbonate non-metallic, Max HP:15, 15, 30, 30 hp (@208,240,480,600 V), Three-pole, Product category: enclosed rotary non-fusible, R-Series, 600 V
Product Name
Eaton enclosed rotary disconnect switch
Catalog Number
ER53060UPYR
UPC
786685403472
Product Length/Depth
10 in
Product Height
5 in
Product Width
5.5 in
Product Weight
2.12 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed cUL Certified
Catalog Notes
Yellow Cover, Red Handle.
Color
Yellow cover Red handle
Enclosure
NEMA 4X
Enclosure material
Polycarbonate non-metallic
Handle color
Red
Number of poles
Three-pole
Series
R-Series
Type
Enclosed rotary disconnect
Amperage Rating
60A
HP rating - max
15, 15, 30, 30 hp (@208,240,480,600 V)
Voltage rating
600 V
Product Category
Enclosed rotary non-fusible
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Switching Devices Flex Center
Eaton Specification Sheet - ER53060UPYR
Feature → Business Impact → Application: 60 A amperage rating enables safe, high-current switching for general motors and conveyors, reducing risk during shutdowns while maintaining equipment protection. Application: motor control centers and machine drives where reliable isolation is essential. Feature → Business Impact → Application: NEMA 4X polycarbonate enclosure provides weather, dust, and washdown resistance, lowering the chance of enclosure-related faults in harsh environments. Application: outdoor panels or manufacturing floors with high humidity or particulate exposure. Feature → Business Impact → Application: Polycarbonate non-metallic enclosure reduces weight and simplifies handling during installation, cutting labor time and improving on-site safety. Application: retrofit projects and new builds requiring lighter components. Feature → Business Impact → Application: Yellow cover with red handle enhances operator visibility and quick identification, speeding safe re-disconnection during emergencies. Application: high-traffic control panels and busy production lines. Feature → Business Impact → Application: Three-pole design guarantees symmetrical isolation across three-phase systems, supporting consistent control in 208–600 V installations. Application: commercial and industrial motor loads up to 30 hp at higher voltages. Feature → Business Impact → Application: UL Listed and cUL Certified status ensures compliance with electrical codes and procurement standards, reducing validation time for audits. Application: panel fabrication and electrical distribution compliance. Feature → Business Impact → Application: R-Series enclosure and 600 V rating align with common industrial power policies, enabling scalable integration in new equipment builds. Application: OEMs and end users designing standardized control enclosures.
Get a Quick Quote for a Eaton ER53060UPYR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ER53060UPYR?
Enquire Now
FAQs
The ER53060UPYR is designed as a three-pole, enclosed rotary disconnect with a NEMA 4X polycarbonate enclosure. It installs in standard panel cutouts compatible with enclosed rotary non-fusible switches, and its lightweight polycarbonate housing simplifies mounting. Ensure proper wiring to the three-pole terminals and verify voltage compatibility up to 600 V. Use the yellow cover and red handle for quick operator recognition and follow manufacturer torque recommendations during connection.
Key specs to confirm include 60 A amperage rating, 600 V maximum voltage, and hp ratings of 15 and 30 hp at appropriate voltages (208/240/480/600 V). The device is a three-pole, enclosed rotary non-fusible switch with a NEMA 4X enclosure, suitable for industrial environments. Verification of UL Listed and cUL Certified status helps ensure compliance with local electrical codes and project requirements.
Yes. The ER53060UPYR features a NEMA 4X enclosure with polycarbonate non-metallic construction, delivering resistance to water, dust, and corrosion in demanding settings. This makes it appropriate for outdoor panels or washdown areas, where enclosure integrity is critical to protecting the disconnect switch and surrounding controls.
The ER53060UPYR carries UL Listed and cUL Certified certifications, ensuring alignment with safety and performance standards. These marks support compliance during audits and facilitate procurement processes. Additionally, the enclosure meets the NEMA 4X level of protection, which is often a project requirement for industrial installations.
Eaton provides a one-year warranty from installation or eighteen months from shipment, whichever occurs first, per policy 25-000. For maintenance planning, rely on the device’s robust enclosure and simple three-pole operation to minimize downtime during routine disconnections. Regular inspection should focus on handle color visibility, enclosure seals, and terminal integrity to sustain reliable performance over time.
