Eaton ER54016UG Enclosed Rotary Disconnect Switch - CSA Certified UL Listed

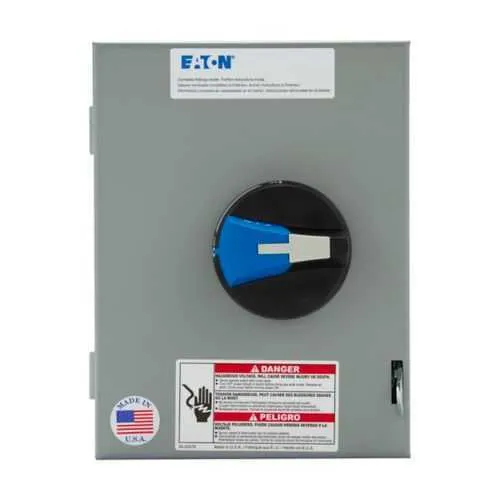

Part Number: ER54016UG
Quick Summary
The Eaton enclosed rotary disconnect switch ER54016UG provides reliable isolation for three-phase motors in industrial control panels. Operators often struggle with safe, compliant shutoffs in compact spaces, where rugged indoor enclosures protect against dust and incidental contact. This NEMA 1, painted steel enclosure is CSA Certified and UL Listed, with a four-pole configuration and a 600 V rating to meet common safety standards. With 16 A capability and HP ratings up to 10 hp at higher voltages, the ER54016UG supports flexible motor control while keeping installation options straightforward for panel builders and technicians.
Product Information
Extended Description
ER54016UG Eaton: Eaton enclosed rotary disconnect switch, 16A, NEMA 1, Painted steel, Max HP:3, 5, 10, 10 hp (@208,240,480,600 V), Four-pole, Product category: enclosed rotary non-fusible, R-Series, 600 V
Product Name
Eaton enclosed rotary disconnect switch
Catalog Number
ER54016UG
UPC
786685493770
Product Length/Depth
10.4 in
Product Height
6.7 in
Product Width
7.2 in
Product Weight
5.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Certified UL Listed
Enclosure
NEMA 1
Enclosure material
Painted steel
Number of poles
Four-pole
Series
R-Series
Type
Enclosed rotary disconnect
Amperage Rating
16A
HP rating - max
3, 5, 10, 10 hp (@208,240,480,600 V)
Voltage rating
600 V
Product Category
Enclosed rotary non-fusible
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Switching Devices Flex Center
Eaton Specification Sheet - ER54016UG
16 A amperage rating along with HP ratings of 3/5/10/10 hp (@208/240/480/600 V) ensures the ER54016UG can safely disconnect common motor loads. This alignment reduces overdesign, minimizes wiring complexity, and supports compact control schemes in conveyors and fans. The 600 V voltage rating and four-pole design guarantee complete isolation of all poles, preventing backfeed during maintenance and simplifying code compliance for motor circuits in metalworking and processing lines. The NEMA 1 painted steel enclosure offers indoor protection against dust and incidental contact, reducing enclosure corrosion risk and extending service life in typical workshop environments. Being part of Eaton’s R-Series, the unit offers standardization, faster procurement, and straightforward replacement in retrofit projects. CSA Certification and UL Listing reinforce safety compliance, lowering qualification time for projects in regulated environments while delivering predictable performance for downstream automation.
